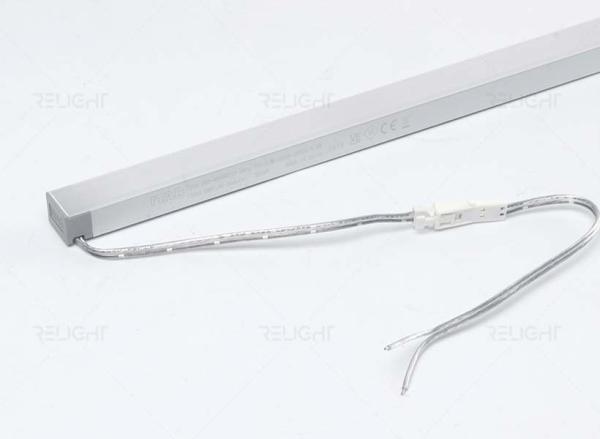

120Vac Input AC LED Module FF Linear Series 50 / 60Hz Frequency
120Vac Input AC LED Module FF Linear Series 50 / 60Hz Frequency
120Vac Input AC LED Module FF Linear Series 50 / 60Hz Frequency
120Vac Input AC LED Module FF Linear Series 50 / 60Hz Frequency
120Vac Input AC LED Module FF Linear Series 50 / 60Hz Frequency
120Vac Input AC LED Module FF Linear Series 50 / 60Hz Frequency
Specifications
Brand Name :
RELIGHT
Model Number :
FF Linear Series
Certification :
CE,ETL,UL
Place of Origin :
CHINA
MOQ :
100M
CRI :
90/80
Protection :
IP20
Input :
120Vac
Frequency :
50/60Hz
Beam Angle :
120 deg
Power :
AC
Various CCT available :
2700/3000/4000/5000/5700/6500K
Price :
Contact us to get best price
Delivery Time :
2-3weeks
Payment Terms :
T/T
Supply Ability :
10000M/M
Description
    • High total efficiency up to 110lm/W
    • Various CCT available:2700/3000/3500/4000/5000/5700/6500K
    • CRI:80/90/95 options
    • Macadam 3/5 steps color bin
    • Solutions for Down light/Ceiling light
    • AC line voltage 120V input directly
    • Power factor higher than 0.95
    • Low THDI:<18%
    • TRIAC dimmable

    120Vac Input AC LED Module FF Linear Series 50 / 60Hz Frequency

    120Vac Input AC LED Module FF Linear Series 50 / 60Hz Frequency

    120Vac Input AC LED Module FF Linear Series 50 / 60Hz Frequency

    General information

    P/N Size Input Power PF Flux Efficiency CCT CRI Dimming
    mm Vac W - LM LM/W K - -
    RL-HM280×30A2801H016-840TB 280×30 230 16 0.95 1760 110 4000 80 TRIAC
    RL-LM280×30A2201N016-930FB 280×30 120 16 0.95 1376 86 3000 90 TRIAC
    RL-LM280X40A2801N009-930FF 280x40 120 9 0.9 720 80 3000 90 TRIAC

    Note:1-Various CCT available(2700-6500K)；RL-XXXXXXXXXXXXXXX-840X(8-80CRI;40-4000K CCT)
    2-Typical Optical-electronic parameters above @ Ta=25℃
    Selection guide

    P/N

    Size

    Input

    Power

    PF

    Flux

    Efficiency

    CCT

    CRI

    Dimming

    mm

    Vac

    W

    -

    LM

    LM/W

    K

    -

    -

    RL-HM280×40A2801H016-827FF

    280×40

    230

    16

    0.9

    1440

    90

    2700

    80

    TRIAC

    Flicker-free

    RL-HM280×40A2801H016-830FF

    1520

    95

    3000

    RL-HM280×40A2801H016-835FF

    1552

    100

    3500

    RL-HM280×40A2801H016-840FF

    1600

    110

    4000

    RL-HM280×40A2801H016-850FF

    1600

    110

    5000

    RL-HM280×40A2801H016-857FF

    1600

    100

    5700

    RL-HM280×40A2801H016-927FF

    280×40

    230

    16

    0.9

    1290

    80

    2700

    90

    TRIAC

    Flicker-free

    RL-HM280×40A2801H016-930FF

    1360

    86

    3000

    RL-HM280×40A2801H016-935FF

    1424

    89

    3500

    RL-HM280×40A2801H016-940FF

    1600

    100

    4000

    RL-HM280×40A2801H016-950FF

    1600

    100

    5000

    RL-HM280×40A2801H016-957FF

    1520

    95

    5700

    P/N

    Size

    Input

    Power

    PF

    Flux

    Efficiency

    CCT

    CRI

    Dimming

    mm

    Vac

    W

    -

    LM

    LM/W

    K

    -

    -

    RL-LM280×40A1402H009-827FF

    280×40

    230

    9

    0.9

    810

    90

    2700

    80

    TRIAC

    Flicker-free

    RL-LM280×40A1402H009-830FF

    855

    95

    3000

    RL-LM280×40A1402H009-835FF

    900

    100

    3500

    RL-LM280×40A1402H009-840FF

    990

    110

    4000

    RL-LM280×40A1402H009-850FF

    990

    110

    5000

    RL-LM280×40A1402H009-857FF

    900

    100

    5700

    RL-LM280×40A1402H009-927FF

    280×40

    230

    9

    0.9

    720

    80

    2700

    90

    TRIAC

    Flicker-free

    RL-LM280×40A1402H009-930FF

    774

    86

    3000

    RL-LM280×40A1402H009-935FF

    800

    89

    3500

    RL-LM280×40A1402H009-940FF

    900

    100

    4000

    RL-LM280×40A1402H009-950FF

    900

    100

    5000

    RL-HM280×40A2801H016-957FF

    855

    95

    5700
