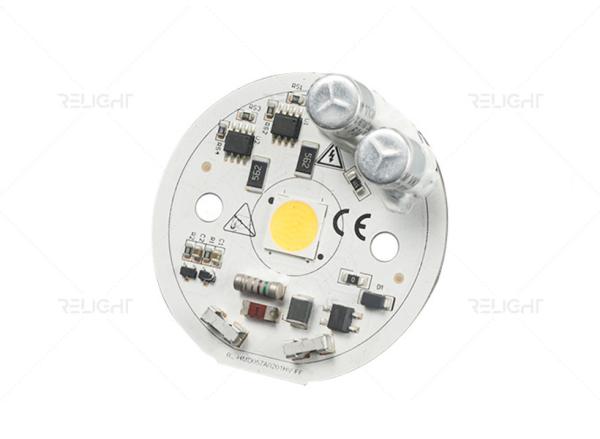

High Efficacy AC LED Light Module DOB 57mm Power Factor Higher Than 0.8
High Efficacy AC LED Light Module DOB 57mm Power Factor Higher Than 0.8
High Efficacy AC LED Light Module DOB 57mm Power Factor Higher Than 0.8
High Efficacy AC LED Light Module DOB 57mm Power Factor Higher Than 0.8
High Efficacy AC LED Light Module DOB 57mm Power Factor Higher Than 0.8
High Efficacy AC LED Light Module DOB 57mm Power Factor Higher Than 0.8
Specifications
Brand Name :
RELIGHT
Certification :
CE,ETL,UL
Place of Origin :
CHINA
MOQ :
100M
Model Number :
DOB-57mm
CRI :
90/80
Protection :
IP20
Input :
200-240Vac
Frequency :
50/60Hz
Beam Angle :
120 deg
Power :
AC
Various CCT available :
2700/3000/4000/5000/5700/6500K
Price :
Contact us to get best price
Delivery Time :
2-3weeks
Payment Terms :
T/T
Supply Ability :
10000M/M
Description

Features:

  • 110lm/W-15W-80CRI
  • Connects directly to AC Power
  • Various CCT available:2700+6000K
  • CRI:90
  • Macadam 5 steps color bin

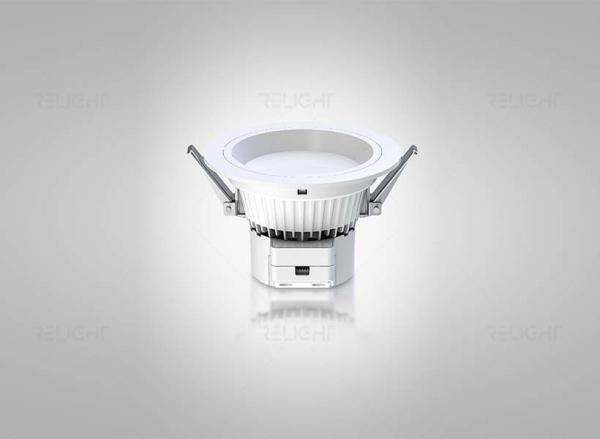

  • Solutions for Down light / Spotlight/Candle light/Ceiling light
  • AC line voltage 230V input directly
  • Power factor higher than 0.8
  • TRIAC dimmable/Switch table white

High Efficacy AC LED Light Module DOB 57mm Power Factor Higher Than 0.8

High Efficacy AC LED Light Module DOB 57mm Power Factor Higher Than 0.8

Absolute maximum rating at 25℃

P/N
Size
Input
Power
PF
Flux
Efficiency
CCT
CRI
Dimming
mm
Vac
W
-
Lm
Lm/W
K
-
-
RL-HMD57A1A1AH015-827FF
Ø57
230
15
0.8
1875
125
2700
80
TRIAC
RL-HMD57A1A1AH015-830FF
Ø57
230
15
0.8
1950
130
3000
80
TRIAC
RL-HMD57A1A1AH015-840FF
Ø57
230
15
0.8
2025
135
4000
80
TRIAC
RL-HMD57A1A1AH015-850FF
Ø57
230
15
0.8
2025
135
5000
80
TRIAC
RL-HMD57A1A1AH015-865FF
Ø57
230
15
0.8
2025
135
6500
80
TRIAC

Optical-Electrical Characteristics at 25℃

Feature Parameter description RL-D57 TW Series
Power Dissipation(max) 5-12
Luminous Flux(max) 500-900lm
Efficiency 75-92lm/W
Bead specification DOB
Working Voltage AC200-260V
Power Factor ＞0.8
Flicker Pst:0.037 SVM:0.023
Hi-pot 1.5KV
Surge level 2.5KV
Substrate material Aluminum
Color temperature 2700+6000K(Switch table white 2700K-4500K-6000K)
Color rendering index ＞80

High Efficacy AC LED Light Module DOB 57mm Power Factor Higher Than 0.8

High Efficacy AC LED Light Module DOB 57mm Power Factor Higher Than 0.8

High Efficacy AC LED Light Module DOB 57mm Power Factor Higher Than 0.8

Safety Information
1. The LED module and all its components shall not be subjected to mechanical stress.
2. Correct electrical polarity, or not module may be damaged.
3. Ensure the power supply is suitable for the total load.
4. Electrostatic Discharge (ESD) precautions shall be incorporated when handling or installing the module.
5. Installation of LED modules shall be made refering to all applicable electrical and safety standards.
6. Suitable for luminaire of protection class 1, grounding is mandatory to comply with safety standards.
7. The AC light engine needs to be mounted to a heat sink with a thermal interface material between them.
8. It is better to use the AC led module with safety cover.
9. Modules may be hot to the touch. Use caution when handling.
