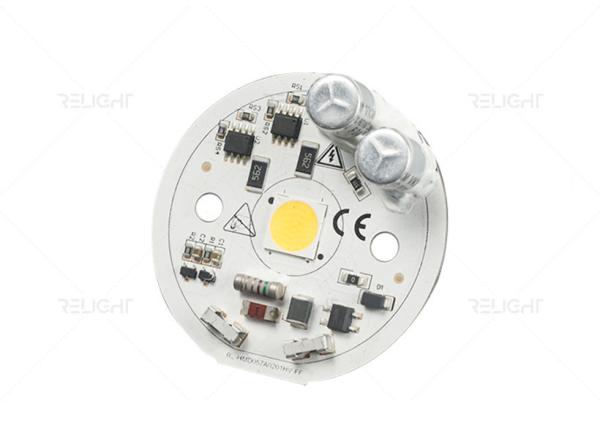

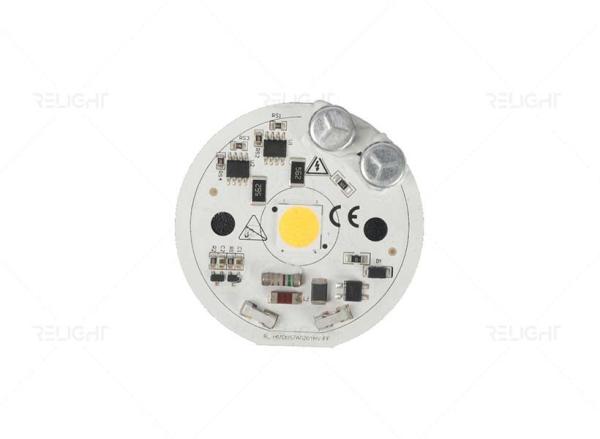

DOB 57mm AC LED Light Module 110lm/W 15W 80CRI LED Ceiling Light Module
DOB 57mm AC LED Light Module 110lm/W 15W 80CRI LED Ceiling Light Module
DOB 57mm AC LED Light Module 110lm/W 15W 80CRI LED Ceiling Light Module
DOB 57mm AC LED Light Module 110lm/W 15W 80CRI LED Ceiling Light Module
DOB 57mm AC LED Light Module 110lm/W 15W 80CRI LED Ceiling Light Module
DOB 57mm AC LED Light Module 110lm/W 15W 80CRI LED Ceiling Light Module
Specifications
MOQ :
100M
Place of Origin :
CHINA
Brand Name :
RELIGHT
Certification :
CE,ETL,UL
Model Number :
DOB
CRI :
90/80
Protection :
IP20
Input :
200-240Vac
Frequency :
50/60Hz
Beam Angle :
120 deg
Power :
AC
Various CCT available :
2700+6000K
Price :
Contact us to get best price
Delivery Time :
2-3weeks
Payment Terms :
T/T
Supply Ability :
10000M/M
Description

Features:

  • 110lm/W-15W-80CRI
  • Connects directly to AC Power
  • Various CCT available: 2700+6000K
  • CRI:90
  • Macadam 5 steps color bin

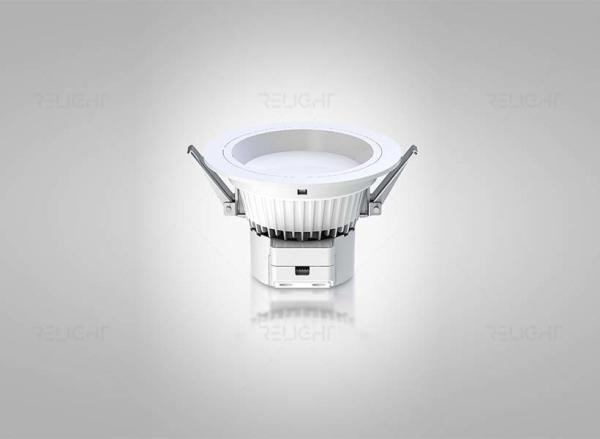

  • Solutions for Down light / Spotlight/Candle light/Ceiling light
  • AC line voltage 230V input directly
  • Power factor higher than 0.9
  • TRIAC dimmable/Switch table white

DOB 57mm AC LED Light Module 110lm/W 15W 80CRI LED Ceiling Light Module

DOB 57mm AC LED Light Module 110lm/W 15W 80CRI LED Ceiling Light Module

Absolute maximum rating at 25℃

P/N
Size
Input
Power
PF
Flux
Efficiency
CCT
CRI
Dimming
mm
Vac
W
-
Lm
Lm/W
K
-
-
RL-LMD57A1A1AH015-827FF
Ø57
230
15
0.9
1500
100
2700
80
TRIAC
RL-LMD57A1A1AH015-830FF
Ø57
230
15
0.9
1575
105
3000
80
TRIAC
RL-LMD57A1A1AH015-840FF
Ø57
230
15
0.9
1650
110
4000
80
TRIAC
RL-LMD57A1A1AH015-850FF
Ø57
230
15
0.9
1650
110
5000
80
TRIAC
RL-LMD57A1A1AH015-865FF
Ø57
230
15
0.9
1650
110
6500
80
TRIAC

Optical-Electrical Characteristics at 25℃
Input 200-240Vac
Frequency 50/60Hz
Rated power Typical power(±10% tolerance)
PF >0.90
Protection IP20
Surge level 2.5KV
Hi-pot 1.5KVac
Storage temperature -30-85℃
Operation temperature -30-80℃(Ts ofled components)
Beam Angle 120 deg
Flicker index <5%
DOB 57mm AC LED Light Module 110lm/W 15W 80CRI LED Ceiling Light Module
DOB 57mm AC LED Light Module 110lm/W 15W 80CRI LED Ceiling Light Module
DOB 57mm AC LED Light Module 110lm/W 15W 80CRI LED Ceiling Light Module
Safety Information
1. The LED module and all its components shall not be subjected to mechanical stress.
2. Correct electrical polarity, or not module may be damaged.
3. Ensure the power supply is suitable for the total load.
4. Electrostatic Discharge (ESD) precautions shall be incorporated when handling or installing the module.
5. Installation of LED modules shall be made refering to all applicable electrical and safety standards.
6. Suitable for luminaire of protection class 1, grounding is mandatory to comply with safety standards.
7. The AC light engine needs to be mounted to a heat sink with a thermal interface material between them.
8. It is better to use the AC led module with safety cover.
9. Modules may be hot to the touch. Use caution when handling.
