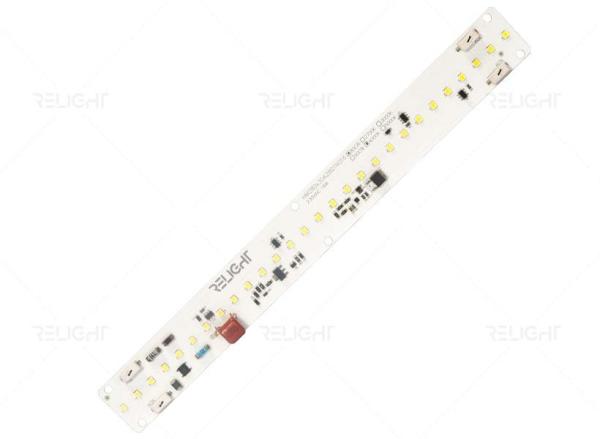

TB Linear Series AC LED Module 50Hz / 60Hz 120 Deg Beam Angle
TB Linear Series AC LED Module 50Hz / 60Hz 120 Deg Beam Angle
TB Linear Series AC LED Module 50Hz / 60Hz 120 Deg Beam Angle
TB Linear Series AC LED Module 50Hz / 60Hz 120 Deg Beam Angle
TB Linear Series AC LED Module 50Hz / 60Hz 120 Deg Beam Angle
TB Linear Series AC LED Module 50Hz / 60Hz 120 Deg Beam Angle
Specifications
Brand Name :
RELIGHT
Model Number :
TB Linear Series
Certification :
CE,ETL,UL
Place of Origin :
CHINA
MOQ :
100M
CRI :
90/80
Protection :
IP20
Input :
230Vac
Frequency :
50/60Hz
Beam Angle :
120 deg
Power :
AC
Various CCT available :
2700/3000/4000/5000/5700/6500K
Price :
Contact us to get best price
Delivery Time :
2-3weeks
Payment Terms :
T/T
Supply Ability :
10000M/M
Description
  • High total efficiency up to 115lm/W
  • Various CCT available:2700/3000/3500/4000/5000/5700/6500K
  • CRI:80/90/95 options
  • Macadam 3/5 steps color bin
  • Solutions for Down light/Ceiling light
  • AC line voltage 230V/120V input directly
  • Power factor higher than 0.95
  • Low THDI:<18%
  • TRIAC dimmable

TB Linear Series AC LED Module 50Hz / 60Hz 120 Deg Beam Angle

TB Linear Series AC LED Module 50Hz / 60Hz 120 Deg Beam Angle

TB Linear Series AC LED Module 50Hz / 60Hz 120 Deg Beam Angle

General information

P/N
Size
Input
Power
PF
Flux
Efficiency
CCT
CRI
Dimming
mm
Vac
W
-
Lm
Lm/W
K
-
-
RL-HM280x30A2801H016-840TB
280x30
230
16
0.95
1760
110
4000
80
TRIAC
Note:1-Various CCT available(2700-6500K)；RL-XXXXXXXXXXXXXXX-840X(8-80CRI;40-4000K CCT)
2-Typical Optical-electronic parameters above @ Ta=25℃
Selection guide
P/N
Size
Input
Power
PF
Flux
Efficiency
CCT
CRI
Dimming
mm
Vac
W
-
Lm
Lm/W
K
-
-
RL-HM280x30A2801H016-827TB
280x30
230
16
0.95
1440
90
2700
80
TRIAC
RL-HM280x30A2801H016-830TB
1520
95
3000
RL-HM280x30A2801H016-835TB
1600
100
3500
RL-HM280x30A2801H016-840TB
1760
110
4000
RL-HM280x30A2801H016-850TB
1760
110
5000
RL-HM280x30A2801H016-857TB
1760
110
5700
RL-HM280x30A2801H016-865TB
1600
100
6500
