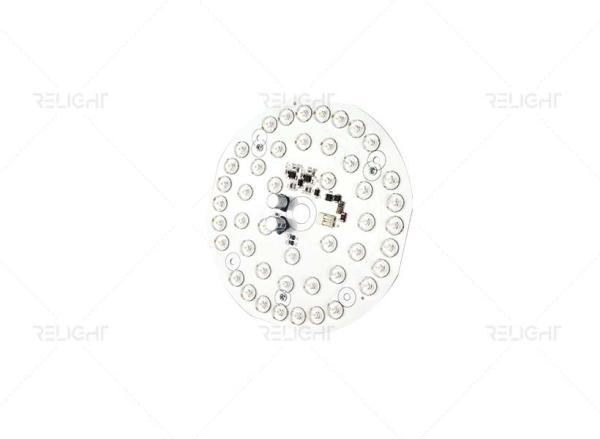

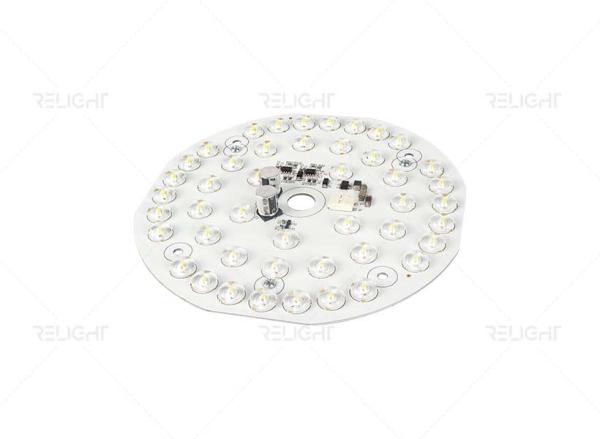

Ceiling Lamp AC LED Module D164 2700K 3000K 4000K 5000K 5700K 6500K
Ceiling Lamp AC LED Module D164 2700K 3000K 4000K 5000K 5700K 6500K
Ceiling Lamp AC LED Module D164 2700K 3000K 4000K 5000K 5700K 6500K
Ceiling Lamp AC LED Module D164 2700K 3000K 4000K 5000K 5700K 6500K
Ceiling Lamp AC LED Module D164 2700K 3000K 4000K 5000K 5700K 6500K
Ceiling Lamp AC LED Module D164 2700K 3000K 4000K 5000K 5700K 6500K
Specifications
Brand Name :
RELIGHT
Model Number :
Ceiling Lamp Module D164
Certification :
CE,ETL,UL
Place of Origin :
CHINA
MOQ :
100M
CRI :
90/80
Protection :
IP20
Input :
200-240Vac
Frequency :
50/60Hz
Beam Angle :
120 deg
Power :
AC
Various CCT available :
2700/3000/4000/5000/5700/6500K
Price :
Contact us to get best price
Delivery Time :
2-3weeks
Payment Terms :
T/T
Supply Ability :
10000M/M
Description
    • Connects directly to AC Power
    • Various CCT available: 2700/3000/3500/4000/5000/5700/6500K
    • CRI: 90/80
    • Macadam 5 steps color bin
    • Solutions for Down light / Ceiling light
    • AC line voltage 230V input directly
    • Power factor higher than 0.9
    • TRIAC dimmable/Switch table white

    Ceiling Lamp AC LED Module D164 2700K 3000K 4000K 5000K 5700K 6500K

    Ceiling Lamp AC LED Module D164 2700K 3000K 4000K 5000K 5700K 6500K

    Absolute maximum rating at 25℃

    P/N
    Size
    Input
    Power
    PF
    Flux
    Efficiency
    CCT
    CRI
    Dimming
    mm
    Vac
    W
    -
    Lm
    Lm/W
    K
    -
    -
    RL-HMD164A4601H018-827FF
    Ø164
    230
    18
    0.8
    2070
    115
    2700
    80
    TRIAC
    RL-HMD164A4601H018-830FF
    Ø164
    230
    18
    0.8
    2160
    120
    3000
    80
    TRIAC
    RL-HMD164A4601H018-840FF
    Ø164
    230
    18
    0.8
    2250
    125
    4000
    80
    TRIAC
    RL-HMD164A4601H018-850FF
    Ø164
    230
    18
    0.8
    2225
    125
    5000
    80
    TRIAC
    RL-HMD164A4601H018-865FF
    Ø164
    230
    18
    0.8
    2225
    125
    6500
    80
    TRIAC
    Optical-Electrical Characteristics at 25℃
    Input 200-240Vac
    Frequency 50/60Hz
    Rated power Typical power(±10% tolerance)
    PF >0.90
    Protection IP20
    Surge level 2.5KV
    Hi-pot 1.5KVac
    Storage temperature -30-85℃
    Operation temperature -30-80℃(Ts ofled components)
    Beam Angle 120 deg
    Flicker index <5%
    Ceiling Lamp AC LED Module D164 2700K 3000K 4000K 5000K 5700K 6500K
    Ceiling Lamp AC LED Module D164 2700K 3000K 4000K 5000K 5700K 6500K
    Ceiling Lamp AC LED Module D164 2700K 3000K 4000K 5000K 5700K 6500K
    Safety Information
    1. The LED module and all its components shall not be subjected to mechanical stress.
    2. Correct electrical polarity, or not module may be damaged.
    3. Ensure the power supply is suitable for the total load.
    4. Electrostatic Discharge (ESD) precautions shall be incorporated when handling or installing the module.
    5. Installation of LED modules shall be made refering to all applicable electrical and safety standards.
    6. Suitable for luminaire of protection class 1, grounding is mandatory to comply with safety standards.
    7. The AC light engine needs to be mounted to a heat sink with a thermal interface material between them.
    8. It is better to use the AC led module with safety cover.
    9. Modules may be hot to the touch. Use caution when handling.
