Specifications
Model NO. :
SF-700
Condensor Design :
latest Exclusively for Refrigeration Unit
Sealing Technology :
Patented O Sealing Technology
Design Base Environment :
45 Degree C
Durability Range :
The Highest Level
Maintenance :
Lower The Cost of Maintance
Transport Package :
Carton Filled with Paper Honeycomb
Trademark :
SNOWFALL
Origin :
Guangzhou, China
HS Code :
8418692090
Supply Ability :
350 Sets Per Month
Condition :
New
Service :
OEM
Installation :
Front, Roof, Under Mounting Type
Electric :
Optional Electric Standby System
Colour :
White
Fan Material :
Aluminium Alloy
Customization :
Available | Customized Request
Description
SF-700
45 Degree C Environment Big Truck Cooler Unit with Patented O Sealing Technology
45 Degree C Environment Big Truck Cooler Unit with Patented O Sealing Technology
45 Degree C Environment Big Truck Cooler Unit with Patented O Sealing Technology
45 Degree C Environment Big Truck Cooler Unit with Patented O Sealing Technology
45 Degree C Environment Big Truck Cooler Unit with Patented O Sealing Technology

Introduce:
It is suitable for refrigerating vehicles of light trucks and above, with remarkable refrigeration effect under the volume of 14-23m.

It is the first choice for transporting refrigerated frozen food, dairy products, fruits, ice cream, fresh agricultural products and industrial electronic products, with very stable and reliable refrigeration performance.
The engine-driven transport refrigerating unit SF-700 sub-unit is a reliable refrigerating unit for light truck thermal insulation vehicles with a size of 14~ 23m.

Feature:
  1. Optional DC 12V or 24V for you to choose, and backup electric refrigeration system DC220V/DC380V optional installation
  2. The whole transport refrigerating unit is light and compact, the condenser is in front, the 12-inch large aluminum alloy vane motor imported from Taiwan, the evaporator can be installed as required.
3. This series of models fully covers the freezing capacity ranging from 14 m to 56m and accurately matches its freezing volume from per square meter.
4. Each SNOWFALL will be featured with low cost, low maintenance, low noise, energy saving and environmental protection.
Model SF - 700
Applicable Temperature (ºC) 15 ~ -20
Cooling Capacity Environmental Temperature 35°C
0°C 5800Kcal
-18°C 3250Kcal
Compressor Model QP16/QP21
Displacement(cc/r) 215cc
Condenser Type P.F.
Fan Type Axial fan
Number of Fan 3Fans x 1000m3/h
Voltage DC 12V/DC24V

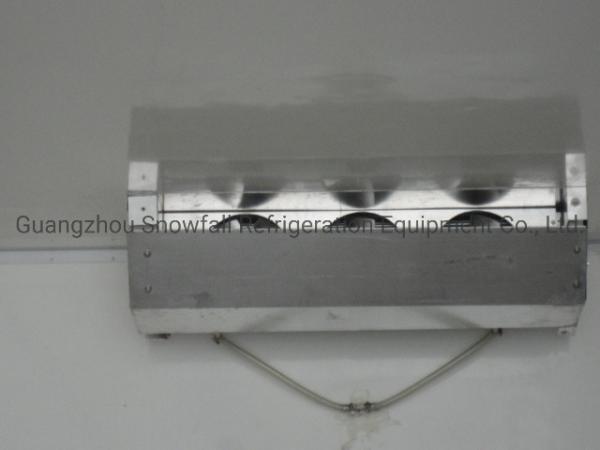

Evaporator Type Inner screw tube and aluminium fin
Fan Type Axial fan
Number of Fan 3Fans x1000m3/h
Voltage DC 12V/DC24V
Power Consumption ≤ 37.5A (DC12V)
≤ 22.5A (DC24V)
Refrigerant R-134a/R-404a
Defrost Type Automatically hot air defrost
Structure Split direct drive unit
Dimensions (mm) /Net weight(kg) SF-700 Evaporator L570x W1240x H240 31.4 kg
SF-700 Condenser L570 x W1260 x H435 54.3kg
Electric Standby system(optional part) AC 220V /AC 380V
