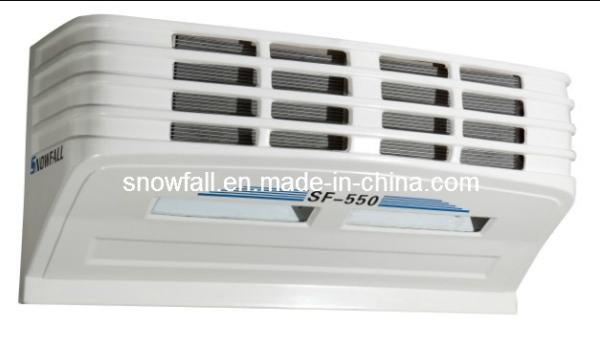

45 Degree C Environment Truck Refrigeration Unit SF-550 Designed for Competitive
45 Degree C Environment Truck Refrigeration Unit SF-550 Designed for Competitive
Specifications
Model NO. :
SF-550
Condensor Design :
Lastest Exclusively for Refrigeration Unit
Sealing Technology :
Patented O Sealing Technology
Design Base Environment :
45 Degree C
Durability Range :
The Highest Level
Maintenance :
Lower The Cost of Maintance
Transport Package :
Carton Filled with Paper Honeycomb
Trademark :
SNOWFALL
Origin :
Guangzhou, China
HS Code :
8418692090
Supply Ability :
350 Sets Per Month
Condition :
New
Service :
OEM
Installation :
Front, Roof, Under Mounting Type
Electric :
Optional Electric Standby System
Colour :
White
Fan Material :
Aluminium Alloy
Customization :
Available | Customized Request
Description
Truck refrigeration unit SF-550

1)Integral unit
2)use latest design compresser
3)Automatically defrost
4)Compressor: UX-200
5Trcuk refrigeration unit SF-550

1. Applicable Temperature
2. Cooling Capacity
(under -18°c) 3100Kcal/3605W/12300BTU

3. Compressor
1)Model UX-200
2)Displacement(cc/r): 210

4. Condenser:
1)Type: P. F
2)Fan Type: Axial fan (2fans*1000m3/h)
3)Voltage: DC12V/DC24V

5. Evaporator:
1)Type: Inner screw tube and aluminum fin
2)Fan type: Axial fan
3)Number of fan 3fan*1000m3/h
4)Voltage: DC12V/DC24V

6. Power consuption: Between 36A(DC12V) and 20A(DC24V)

7. Refrigerant: R-134A or R404A

8. Defrost Type: Automatically hot air defrost

9. Structure: Integral unit

10. Electrical Standby system: AC 220V/AC 380V/415V

11. Dimensions(mm)1665*760*480mm( 65.6"*30"*19")

12. Total Weight(kg): 106kgs




Our products have been exported to many countries for years and enjoyed great reputation.

Our oversea markets are as follows: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe etc



45 Degree C Environment Truck Refrigeration Unit SF-550 Designed for Competitive
45 Degree C Environment Truck Refrigeration Unit SF-550 Designed for Competitive
Unit Model SF-550
Applicable Temperature 25 °C ~ - 20 °C
Cooling Capacity Environmental Temperature 35 °C
0 °C 5000Kcal/5815W/19841BTU
-18 °C 3100Kcal/3605W/12300BTU
Compressor Model UX200
Displacement(cc/r) 200
Condenser Type P.F.
Fan Type Axial Fan
Number of Fan 2 Fans * 1000m ³/h
Voltage DC 12V / DC 24V
Evaporator Type Inner screw tube and aluminium fin
Fan Type Axial Fan
Number of Fan 3 Fans * 1000m ³/h
Voltage DC 12V / DC 24V
Power Comsumption ≤36A(DC 12V) ≤20A(DC 24V)
Refrigerant R-134a/R-404a
Defrost Type Automatically hot air defrost
Structure Integral unit
Electrical Standby System (optional part) AC 220V / AC 380V/ 415V
Dimensions(mm) 1665*760*480
Net Weight(kg) 106kg
