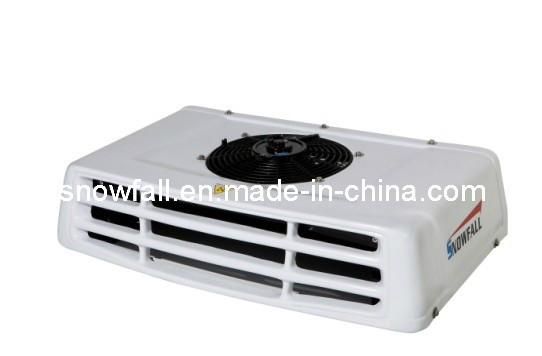

Truck Refrigeration Units SF-318 White Colour and Advanced Cooling System for Trucks
Truck Refrigeration Units SF-318 White Colour and Advanced Cooling System for Trucks
Specifications
Model NO. :
SF-318
Condensor Design :
Lastest Exclusively for Refrigeration Unit
Sealing Technology :
Patented O Sealing Technology
Durability Range :
The Highest Level
Maintenance :
Lower The Cost of Maintance
Condition :
New
Application Fields :
Refrigerated Trucks
Transport Package :
Carton
Trademark :
SNOWFALL
Origin :
Guangzhou, China
HS Code :
8418692090
Supply Ability :
5000 Sets/ Year
Type :
Cooling System
Service :
OEM
Installation :
Front, Roof, Under Mounting Type
Electric :
Optional Electric Standby System
Colour :
White
Fan Material :
Aluminium Alloy
Customization :
Available | Customized Request
Description
Truck refrigeration units SF-318

1)latest design condensor,
2) O good sealing,
3)Compressor Model:SD5H14
4)R-134a refrigera

Trcuk refrigeration unit SF-318
Main specification

1.Applicable Temperature

2.Cooling Capacity :0°C 1800Kcal/2093W/714BTU

3.Compressor
1)Model:SD5H14
2)Displacement(cc/r) :138

4.Condenser:
1).Type:P.F.
2)Fan Type:Axial fan
3)Number of fan:1fan*800m3/h
4)Voltage:DC12V/DC24V

5.Evaporator:

1)Type:inner screw tube and aluminum fin

2)Fan type:Axial fan

3)Number of fan 1fan*1000m3/h

4)Voltage:DC12V/DC24V



6.Power consuption:Between 22A(DC12V)and 11A(DC24V)

7.Refrigerant:R-134a

8.Structure:Spilt direct drive unit

9.Dimensions(mm)/Net weight:of Condenser :800*480*180mm(31"*19"*7")/17.88kgs

10.Dimensions(mm)/Net weight:of Evaporator :790*590*170mm( 31"*23"*6.7")/18.34kgs

Our products have been exported to many countries for years and enjoyed great reputation .

Our oversea markets are as follows:North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe etc.




Truck Refrigeration Units SF-318 White Colour and Advanced Cooling System for Trucks
Unit Model SF-318
Applicable Temperature 20 °C ~ - 5 °C
Cooling Capacity Environmental Temperature 35 °C
0 °C 1800Kcal/2093W/7142BTU
Compressor Model SD5S14
Displacement(cc/r) 138
Condenser Type P.F.
Fan Type Axial Fan
Number of Fan 1 Fans * 800m ³/h
Voltage DC 12V / DC 24V
Evaporator Type Inner screw tube and aluminium fin
Fan Type Axial Fan
Number of Fan 1 Fans * 1000m ³/h
Voltage DC 12V / DC 24V
Power Comsumption ≤22A(DC 12V) ≤11A(DC 24V)
Refrigerant R-134a
Structure Split direct drive unit
Electrical Standby System (optional part) AC 220V / AC 380V/ 415V
Dimensions(mm) & Net Weight(kg) SF-318 Evaporator 790*590*170 18.34kg
SF-318 Condenser 800*480*180 17.88kg
SF-T318 Condenser 870*700*150 21.33kg
