Specifications
Model NO. :
SF-533
Colour :
White
Fan Material :
Aluminium Alloy
Condensor Design :
Lastest Exclusively for Refrigeration Unit
Sealing Technology :
Patented O Sealing Technology
Design Base Environment :
45 Degree C
Durability Range :
The Highest Level
Maintenance :
Lower The Cost of Maintance
Transport Package :
Wood or Carton
Trademark :
SNOWFALL
Origin :
Guangzhou, China
HS Code :
8418692090
Supply Ability :
350 Sets Per Month
Cooling Method :
Direct Cooling
Certification :
ISO
Condition :
New
Service :
OEM
Installation :
Front Mounting Type
Electric :
Optional Electric Standby System
Customization :
Available | Customized Request
Description

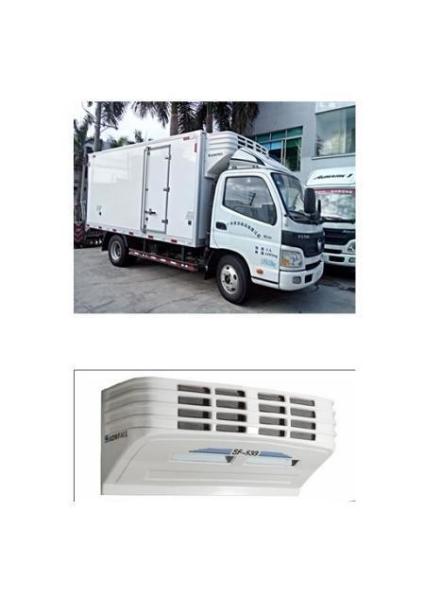

Truck refrigeration unit SF-533
1)Integral unit
2)use latest design compressor
3)Automatically defrost
4)Compressor:SD7L15
Electric Standby System Optional Truck Refrigeration Unit for Food Freezer Truck

Electric Standby System Optional Truck Refrigeration Unit for Food Freezer Truck

Electric Standby System Optional Truck Refrigeration Unit for Food Freezer Truck
Electric Standby System Optional Truck Refrigeration Unit for Food Freezer Truck
Electric Standby System Optional Truck Refrigeration Unit for Food Freezer Truck
Unit Model SF-533
Applicable Temperature 15 °C ~ - 20 °C
Cooling Capacity Environmental Temperature 35 °C
0 °C 3300Kcal/3838W/13095BTU
-18 °C 2050Kcal/2384W/8134BTU
Compressor Model SD7L15
Displacement(cc/r) 151
Condenser Type P.F.
Fan Type Axial Fan
Number of Fan 2 Fans * 1000m ³/h
Voltage DC 12V / DC 24V
Evaporator Type Inner screw tube and aluminium fin
Fan Type Axial Fan
Number of Fan 2 Fans * 1000m ³/h
Voltage DC 12V / DC 24V
Power Comsumption ≤36A(DC 12V) ≤20A(DC 24V)
Refrigerant R-134a/R-404a
Defrost Type Automatically hot air defrost
Structure Integral unit
Electrical Standby System (optional part) AC 220V / AC 380V/ 415V
Dimensions(mm) 1665*760*490
Net Weight(kg) 104kg
