Specifications
Model NO. :
SF-550
Installation :
Front Mounting Type
Electric :
Optional Electric Standby System
Colour :
White
Fan Material :
Aluminium Alloy
Condensor Design :
Latest Exclusively for Refrigeration Unit
Sealing Technology :
Patented O Sealing Technology
Design Base Environment :
45 Degree C
Durability Range :
The Highest Level
Maintenance :
Lower The Cost of Maintance
Transport Package :
Plywood Package
Trademark :
SNOWFALL
Origin :
Guangzhou, China
HS Code :
8418692090
Supply Ability :
350 Sets Per Month
Certification :
ISO9000
Transmission Type :
Automatic
Bearing Capacity :
Large
Car Type :
Truck
Condition :
New
Service :
OEM
Customization :
Available | Customized Request
Description

Insulated Truck Transport Refrigerated Units Cooling units With Aluminium Alloy Fan
Insulated Truck Transport Refrigerated Units Cooling units With Aluminium Alloy Fan
Insulated Truck Transport Refrigerated Units Cooling units With Aluminium Alloy Fan
Insulated Truck Transport Refrigerated Units Cooling units With Aluminium Alloy Fan
Insulated Truck Transport Refrigerated Units Cooling units With Aluminium Alloy Fan
Introduce:
It is suitable for refrigerating vehicles of light trucks and above, with remarkable refrigeration effect under the volume of 14-23m

It is the first choice for supermarket, food and beverage distribution, and pork refrigerating truck. Its refrigeration performance is very stable and reliable.
The SF-550 all-in-one engine driven transport refrigerating unit is a reliable refrigerating unit for light truck thermal insulation vehicles with a size of 14~ 23m.

Feature:




  1. Optional DC 12V or 24V for you to choose, and backup electric refrigeration system DC220V/DC380V optional installation.
  2. The whole transport refrigerating unit is easy to install, expands the effective loading space, and the 12-inch super large aluminum alloy vane motor imported from Taiwan
  3. This series of models fully covers the freezing capacity ranging from 14 m to 23 m and accurately matches its freezing volume from per square meter.
  4. Each SNOWFALL will be featured with low cost, low maintenance, low noise, energy saving and environmental protection.

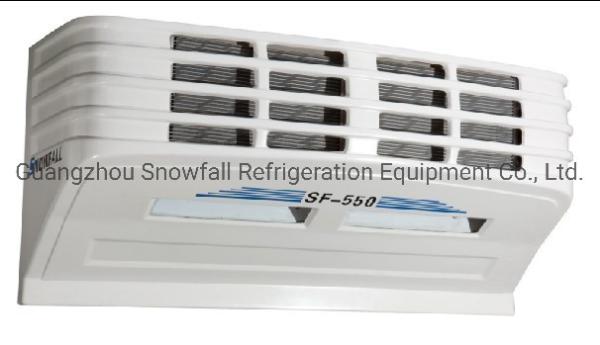

Unit Model SF-550
Applicable Temperature 25 °C ~ - 20 °C
Cooling Capacity Environmental Temperature 35 °C
0 °C 5000Kcal/5815W/19841BTU
-18 °C 3100Kcal/3605W/12300BTU
Compressor Model UX200
Displacement(cc/r) 200
Condenser Type P.F.
Fan Type Axial Fan
Number of Fan 2 Fans * 1000m ³/h
Voltage DC 12V / DC 24V
Evaporator Type Inner screw tube and aluminium fin
Fan Type Axial Fan
Number of Fan 3 Fans * 1000m ³/h
Voltage DC 12V / DC 24V
Power Comsumption ≤36A(DC 12V) ≤20A(DC 24V)
Refrigerant R-134a/R-404a
Defrost Type Automatically hot air defrost
Structure Integral unit
Electrical Standby System (optional part) AC 220V / AC 380V/ 415V
Dimensions(mm) 1665*760*480
Net Weight(kg) 106kg
