2.92mm Right Angle Coaxial RF Adapter Stainless Steel Low VSWR for Test & Measurement DC-40GHz
2.92mm Right Angle Coaxial RF Adapter Stainless Steel Low VSWR for Test & Measurement DC-40GHz
2.92mm Right Angle Coaxial RF Adapter Stainless Steel Low VSWR for Test & Measurement DC-40GHz
2.92mm Right Angle Coaxial RF Adapter Stainless Steel Low VSWR for Test & Measurement DC-40GHz
Specifications
Brand Name :
ZSX
Model Number :
2.92mm-KWKG
Certification :
ISO9001
Place of Origin :
China
MOQ :
5 pcs
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
RF Adapter
Gender :
Female to female
Boday Material :
Steel
Insulator material :
PEI
Working temperature :
-45℃~+165℃
VSWR :
≤ 1.20
Description
2.92mm Right Angle Coaxial Adapter Stainless Steel Low VSWR For Test & Measurement DC-40GHz
2.92MM-KWKG is a female-to-female precision RF adapter of the same series, specifically designed for millimeter-wave and high-frequency RF links within 40GHz. The product adopts a stainless steel main body shell and is equipped with a threaded coupling structure to achieve reliable connection of two 2.92mm female interfaces. It takes into account signal integrity, structural strength and long-term usage stability, and is a standard interconnection accessory for laboratory testing, equipment mass production and communication system construction.

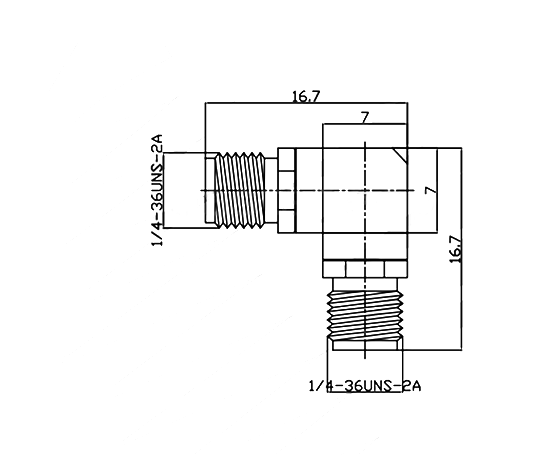

Product display
Product Performance Details
Product model 2.92mm-KYKG Contact resistance

Center Contact:≤3mΩ

Outer Contact:≤2mΩ
Characteristic impedance 50 ohm Body material Steel
Frequency range DC-40GHz Insulator PEI
Voltage standing wave ratio ≤1.2 Central conductor Gold-plated beryllium copper
Insertion loss 0.3dB(Max) Temperature range -45℃~+165℃
Dielectric constant ≥5000MΩ Durability ≥500 Cycles

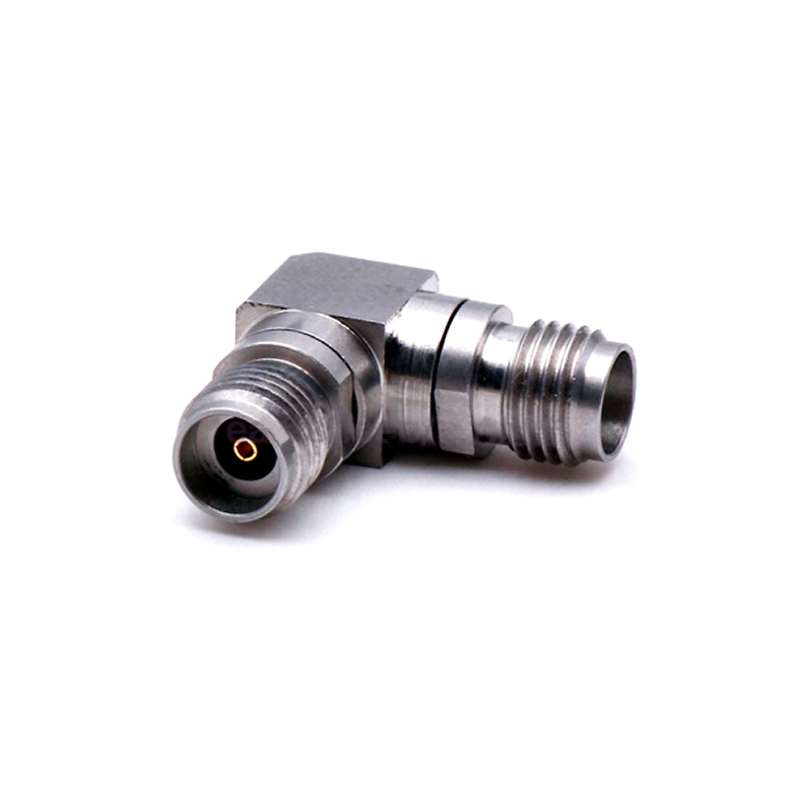

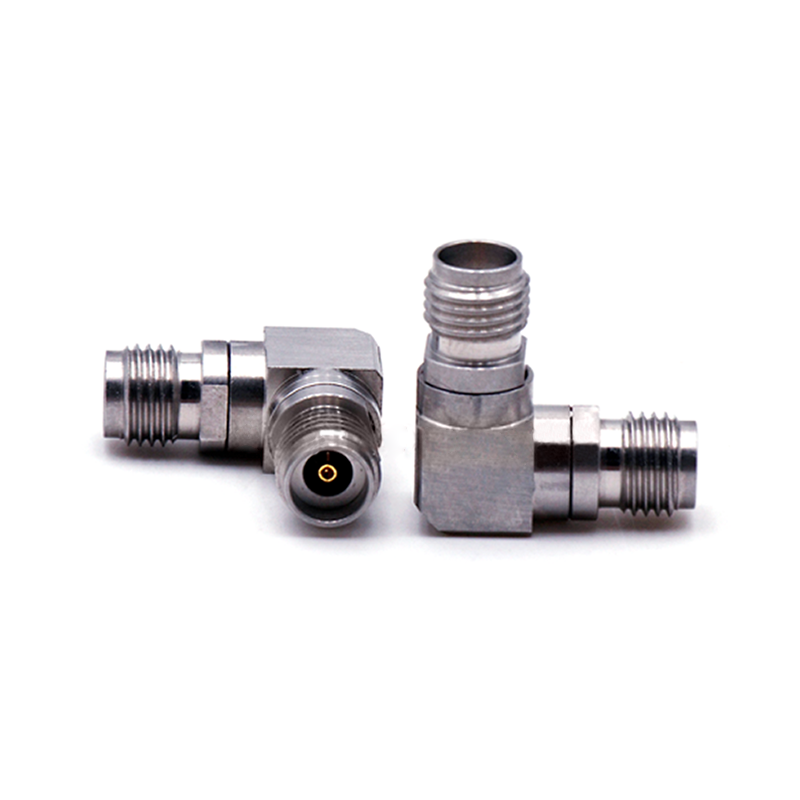

Physical product display

2.92mm Right Angle Coaxial RF Adapter Stainless Steel Low VSWR for Test & Measurement DC-40GHz 2.92mm Right Angle Coaxial RF Adapter Stainless Steel Low VSWR for Test & Measurement DC-40GHz

2.92mm Right Angle Coaxial RF Adapter Stainless Steel Low VSWR for Test & Measurement DC-40GHz

Related product recommendations

2.92mm Right Angle Coaxial RF Adapter Stainless Steel Low VSWR for Test & Measurement DC-40GHz 2.92mm Right Angle Coaxial RF Adapter Stainless Steel Low VSWR for Test & Measurement DC-40GHz

Display of Strength
Production Plant Area
Machining production workshop

2.92mm Right Angle Coaxial RF Adapter Stainless Steel Low VSWR for Test & Measurement DC-40GHz 2.92mm Right Angle Coaxial RF Adapter Stainless Steel Low VSWR for Test & Measurement DC-40GHz

Precision Assembly Production Workshop

2.92mm Right Angle Coaxial RF Adapter Stainless Steel Low VSWR for Test & Measurement DC-40GHz 2.92mm Right Angle Coaxial RF Adapter Stainless Steel Low VSWR for Test & Measurement DC-40GHz

Glass-to-metal sealed production workshop

2.92mm Right Angle Coaxial RF Adapter Stainless Steel Low VSWR for Test & Measurement DC-40GHz 2.92mm Right Angle Coaxial RF Adapter Stainless Steel Low VSWR for Test & Measurement DC-40GHz

Obtained Certification Certificate

2.92mm Right Angle Coaxial RF Adapter Stainless Steel Low VSWR for Test & Measurement DC-40GHz2.92mm Right Angle Coaxial RF Adapter Stainless Steel Low VSWR for Test & Measurement DC-40GHz

Customer visit

2.92mm Right Angle Coaxial RF Adapter Stainless Steel Low VSWR for Test & Measurement DC-40GHz 2.92mm Right Angle Coaxial RF Adapter Stainless Steel Low VSWR for Test & Measurement DC-40GHz

Product packaging

2.92mm Right Angle Coaxial RF Adapter Stainless Steel Low VSWR for Test & Measurement DC-40GHz 2.92mm Right Angle Coaxial RF Adapter Stainless Steel Low VSWR for Test & Measurement DC-40GHz

Packaging and Shipping
  • Standard export carton 2.92mm Right Angle Coaxial RF Adapter Stainless Steel Low VSWR for Test & Measurement DC-40GHz
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of military and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
