Nickel Plated Brass RF Adapter N Male to Female Right Angle with Low VSWR ≤1.2 and DC-4.5GHz Frequency Range
Nickel Plated Brass RF Adapter N Male to Female Right Angle with Low VSWR ≤1.2 and DC-4.5GHz Frequency Range
Nickel Plated Brass RF Adapter N Male to Female Right Angle with Low VSWR ≤1.2 and DC-4.5GHz Frequency Range
Nickel Plated Brass RF Adapter N Male to Female Right Angle with Low VSWR ≤1.2 and DC-4.5GHz Frequency Range
Nickel Plated Brass RF Adapter N Male to Female Right Angle with Low VSWR ≤1.2 and DC-4.5GHz Frequency Range
Nickel Plated Brass RF Adapter N Male to Female Right Angle with Low VSWR ≤1.2 and DC-4.5GHz Frequency Range
Specifications
Brand Name :
ZSX
Model Number :
N-JKW
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
$1.98 --$12.45 (Depending on the quantity )
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
RF Adapter
Gender :
Male to female
Boday Material :
Brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.2
Description


Nickel Plated Brass RF Adapter N Male To Female Right Angel Adapter

N-JKW is a 50Ω right-angle RF adapter with N male to N female connector. Constructed with brass body, gold-plated pin and PTFE dielectric, it features low insertion loss, low VSWR, stable connection and high durability. Widely used in base stations, antennas, test equipment and communication systems for space-limited signal steering and connection conversion.

Product display
Product Performance Details

Product model


N-JKW

 Contact resistance

Center contact:≤1mΩ(N) Outer contact:≤0.2mΩ(N)

Characteristic impedance

50 ohm

Body material

Gold-plated brass

Frequency range

DC-4.5GHz

 Insulator PTFE

Voltage standing wave ratio

≤1.2

Central conductor

Gold-plated beryllium copper

Medium pressure resistance

≥1500V RMS ,50Hz, at sea level

Temperature range

-45℃~+125℃

Dielectric constant

≥5000MΩ

Durability

≥500 Cycles

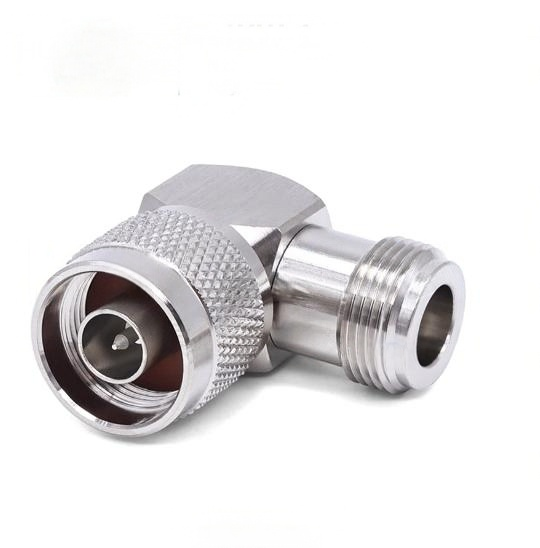

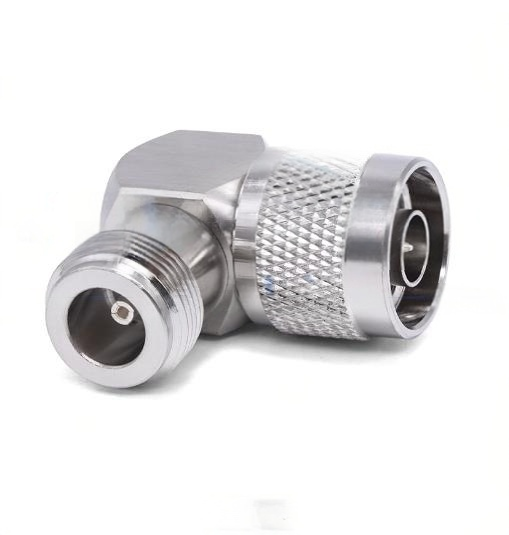

Physical product display
Nickel Plated Brass RF Adapter N Male to Female Right Angle with Low VSWR ≤1.2 and DC-4.5GHz Frequency Range Nickel Plated Brass RF Adapter N Male to Female Right Angle with Low VSWR ≤1.2 and DC-4.5GHz Frequency Range

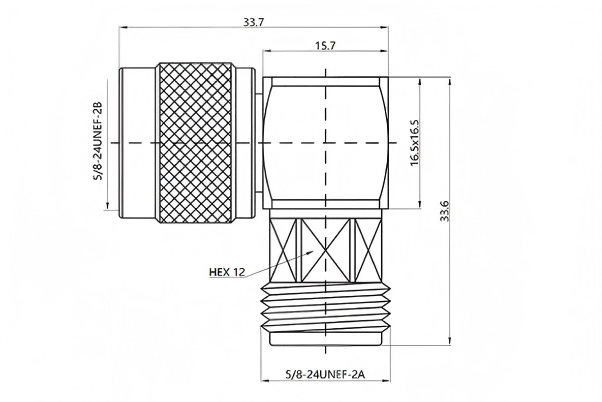

Product external dimensions
Nickel Plated Brass RF Adapter N Male to Female Right Angle with Low VSWR ≤1.2 and DC-4.5GHz Frequency Range
Related product recommendations
Nickel Plated Brass RF Adapter N Male to Female Right Angle with Low VSWR ≤1.2 and DC-4.5GHz Frequency Range Nickel Plated Brass RF Adapter N Male to Female Right Angle with Low VSWR ≤1.2 and DC-4.5GHz Frequency Range
Display of Strength
Office area
Nickel Plated Brass RF Adapter N Male to Female Right Angle with Low VSWR ≤1.2 and DC-4.5GHz Frequency Range Nickel Plated Brass RF Adapter N Male to Female Right Angle with Low VSWR ≤1.2 and DC-4.5GHz Frequency Range
Production Plant Area
Machining production workshop
Nickel Plated Brass RF Adapter N Male to Female Right Angle with Low VSWR ≤1.2 and DC-4.5GHz Frequency Range Nickel Plated Brass RF Adapter N Male to Female Right Angle with Low VSWR ≤1.2 and DC-4.5GHz Frequency Range
Precision Assembly Production Workshop
Nickel Plated Brass RF Adapter N Male to Female Right Angle with Low VSWR ≤1.2 and DC-4.5GHz Frequency Range Nickel Plated Brass RF Adapter N Male to Female Right Angle with Low VSWR ≤1.2 and DC-4.5GHz Frequency Range
Glass-to-metal sealed production workshop
Nickel Plated Brass RF Adapter N Male to Female Right Angle with Low VSWR ≤1.2 and DC-4.5GHz Frequency Range Nickel Plated Brass RF Adapter N Male to Female Right Angle with Low VSWR ≤1.2 and DC-4.5GHz Frequency Range
Obtained Certification Certificate
Nickel Plated Brass RF Adapter N Male to Female Right Angle with Low VSWR ≤1.2 and DC-4.5GHz Frequency Range Nickel Plated Brass RF Adapter N Male to Female Right Angle with Low VSWR ≤1.2 and DC-4.5GHz Frequency Range
Customer visit
Nickel Plated Brass RF Adapter N Male to Female Right Angle with Low VSWR ≤1.2 and DC-4.5GHz Frequency Range Nickel Plated Brass RF Adapter N Male to Female Right Angle with Low VSWR ≤1.2 and DC-4.5GHz Frequency Range
Product packaging
Nickel Plated Brass RF Adapter N Male to Female Right Angle with Low VSWR ≤1.2 and DC-4.5GHz Frequency Range Nickel Plated Brass RF Adapter N Male to Female Right Angle with Low VSWR ≤1.2 and DC-4.5GHz Frequency Range
Packaging and Shipping
Nickel Plated Brass RF Adapter N Male to Female Right Angle with Low VSWR ≤1.2 and DC-4.5GHz Frequency Range
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
