3.5mm Female To Female Adapters Millimeter Wave Stainless Steel Adapter Test Type
3.5mm Female To Female Adapters Millimeter Wave Stainless Steel Adapter Test Type
3.5mm Female To Female Adapters Millimeter Wave Stainless Steel Adapter Test Type
3.5mm Female To Female Adapters Millimeter Wave Stainless Steel Adapter Test Type
3.5mm Female To Female Adapters Millimeter Wave Stainless Steel Adapter Test Type
3.5mm Female To Female Adapters Millimeter Wave Stainless Steel Adapter Test Type
Specifications
Brand Name :
ZSX
Model Number :
3.5-KKG
Certification :
ISO9001
Place of Origin :
China
MOQ :
5 pcs
Price :
$35.50-$42.80(Depending on the quantity)
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
RF adapter 3.5-KKG
Gender :
Female to female
Boday Material :
SS
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.2
Description
Millimeter Wave Adapter 3.5-KKG 3.5mm Female To Female Test Type Stainless Steel

RF Adapter is a kind of used for RF (Radio Frequency, usually refers to 3 KHZ ~ 300 GHZ Frequency band) passive components in the signal transmission system, common types are SMA/N/of BNC/TNC/MCX/UHF/SMP / 2.4 MM / 3.5 MM, etc. The main function is to achieve reliable connection and signal conversion between different types of RF interfaces, impedances or transmission media, ensuring low loss, small reflection and high stability of RF signals during transmission. It is widely used in communication, radar, test and measurement, aerospace, medical equipment and other fields.

Product display
Product Performance Details
Product model 3.5-KKG Contact resistance

Center contact: : ≤3mΩ

Outer contact: : ≤2mΩ
Characteristic impedance 50 ohm Body material Stainless Steel
Frequency range DC-26.5GHz Insulator material PEI
Voltage standing wave ratio ≤1.2 Central conductor Gold-plated beryllium copper
Medium pressure resistance 500V RMS Temperature range -45℃~+125℃
Dielectric constant ≥5000MΩ Durability ≥500 Cycles

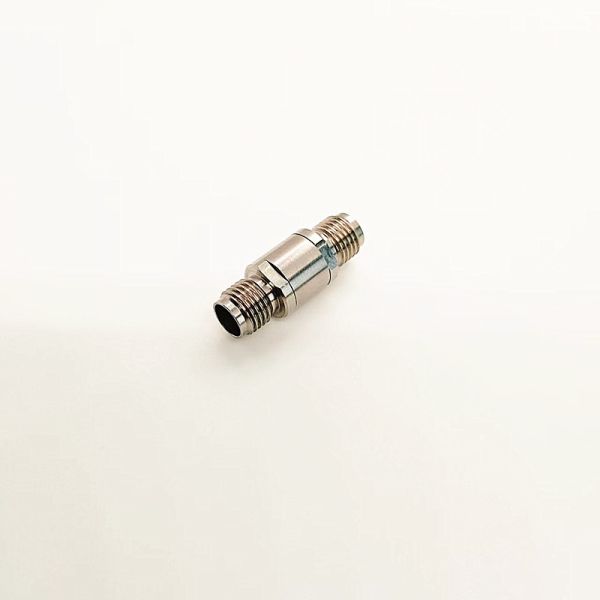

Physical product display
3.5mm Female To Female Adapters Millimeter Wave Stainless Steel Adapter Test Type 3.5mm Female To Female Adapters Millimeter Wave Stainless Steel Adapter Test Type

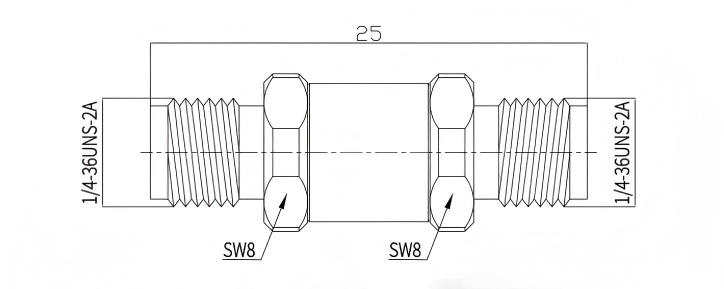

Product external dimensions
3.5mm Female To Female Adapters Millimeter Wave Stainless Steel Adapter Test Type
Related product recommendations
3.5mm Female To Female Adapters Millimeter Wave Stainless Steel Adapter Test Type 3.5mm Female To Female Adapters Millimeter Wave Stainless Steel Adapter Test Type
Display of Strength
Production Plant Area
Machining production workshop
3.5mm Female To Female Adapters Millimeter Wave Stainless Steel Adapter Test Type 3.5mm Female To Female Adapters Millimeter Wave Stainless Steel Adapter Test Type
Precision Assembly Production Workshop
3.5mm Female To Female Adapters Millimeter Wave Stainless Steel Adapter Test Type 3.5mm Female To Female Adapters Millimeter Wave Stainless Steel Adapter Test Type
Glass-to-metal sealed production workshop
3.5mm Female To Female Adapters Millimeter Wave Stainless Steel Adapter Test Type 3.5mm Female To Female Adapters Millimeter Wave Stainless Steel Adapter Test Type
Obtained Certification Certificate
3.5mm Female To Female Adapters Millimeter Wave Stainless Steel Adapter Test Type 3.5mm Female To Female Adapters Millimeter Wave Stainless Steel Adapter Test Type
Customer visit
3.5mm Female To Female Adapters Millimeter Wave Stainless Steel Adapter Test Type 3.5mm Female To Female Adapters Millimeter Wave Stainless Steel Adapter Test Type
Product packaging
3.5mm Female To Female Adapters Millimeter Wave Stainless Steel Adapter Test Type 3.5mm Female To Female Adapters Millimeter Wave Stainless Steel Adapter Test Type
Packaging and Shipping

  • Standard export carton 3.5mm Female To Female Adapters Millimeter Wave Stainless Steel Adapter Test Type
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)

FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of military and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
