1GHz RF Adapter UHF / SL16 / PL259 Female To Female Adapter UHF-KK
1GHz RF Adapter UHF / SL16 / PL259 Female To Female Adapter UHF-KK
1GHz RF Adapter UHF / SL16 / PL259 Female To Female Adapter UHF-KK
1GHz RF Adapter UHF / SL16 / PL259 Female To Female Adapter UHF-KK
1GHz RF Adapter UHF / SL16 / PL259 Female To Female Adapter UHF-KK
1GHz RF Adapter UHF / SL16 / PL259 Female To Female Adapter UHF-KK
Specifications
Brand Name :
ZSX
Model Number :
UHF-KK
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
$1.28-$1.65 (Depending on the quantity)
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
RF Adapter
Gender :
Female to female
Boday Material :
Brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.2
Description
RF Adapter UHF/SL16/PL259 Female To Female Adapter

UHF RF adapters (also known as UHF adapter connectors) are RF signal transfer accessories that are compatible with UHF series connectors. They are mainly used for signal interconnection between UHF connectors of different specifications, between UHF and other RF connectors, as well as for transfer and matching between cables and panels, and between devices. Focusing on low, medium and high frequencies (DC~300MHz), it features stable connection and strong versatility. It is a basic RF accessory for shortwave communication, civil radio stations, outdoor antenna systems and other scenarios, and is compatible with all standard UHF (PL-259/SO-239) connector specifications.

Product display
Product Performance Details
Product model UHF-KK Contact resistance Center contact :5mΩ Outer contact :5mΩ
Characteristic impedance 50 ohm Body material Nickel-plated brass
Frequency range DC-1GHz Insulator PTFE
Voltage standing wave ratio ≤1.2 Central conductor Gold-plated beryllium copper
Medium pressure resistance 1000V RMS Temperature range -45℃~+125℃
Dielectric constant ≥5000MΩ Durability ≥500 Cycles

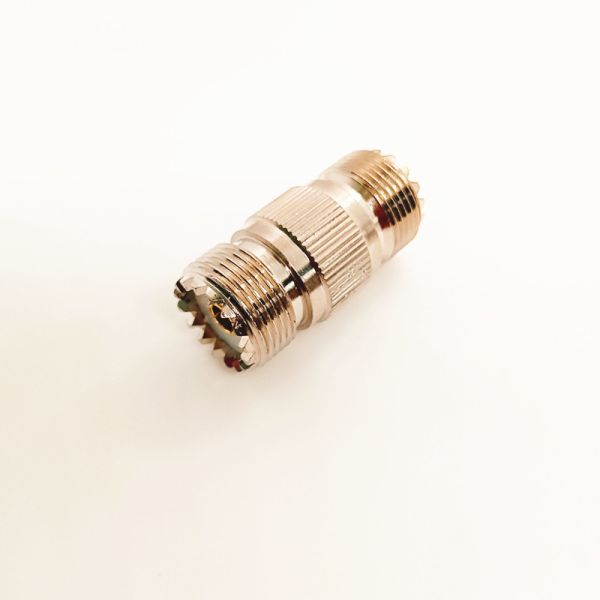

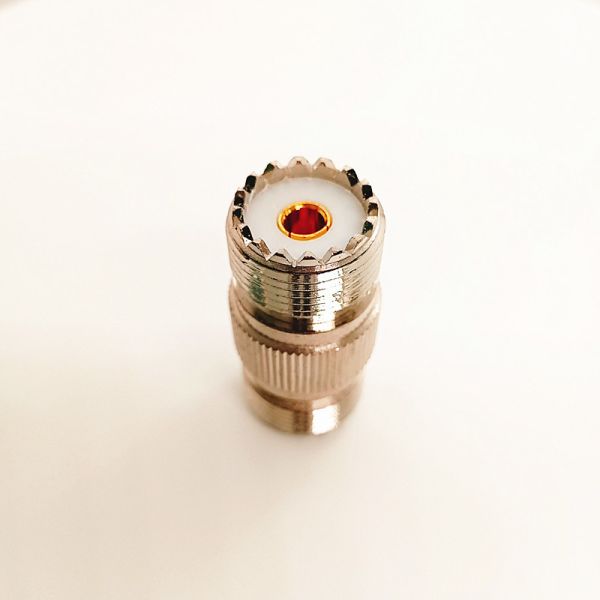

Physical product display

1GHz RF Adapter UHF / SL16 / PL259 Female To Female Adapter UHF-KK 1GHz RF Adapter UHF / SL16 / PL259 Female To Female Adapter UHF-KK

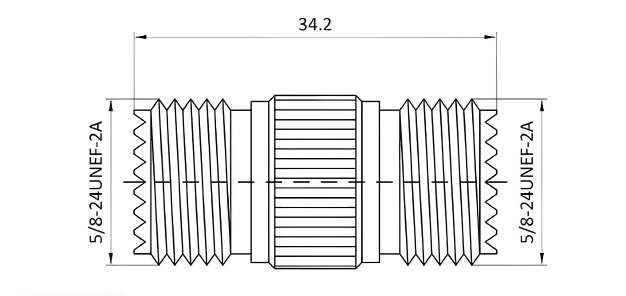

Product external dimensions

1GHz RF Adapter UHF / SL16 / PL259 Female To Female Adapter UHF-KK

Related product recommendations

1GHz RF Adapter UHF / SL16 / PL259 Female To Female Adapter UHF-KK 1GHz RF Adapter UHF / SL16 / PL259 Female To Female Adapter UHF-KK

Display of Strength


Production Plant Area
Machining production workshop

1GHz RF Adapter UHF / SL16 / PL259 Female To Female Adapter UHF-KK 1GHz RF Adapter UHF / SL16 / PL259 Female To Female Adapter UHF-KK

Precision Assembly Production Workshop

1GHz RF Adapter UHF / SL16 / PL259 Female To Female Adapter UHF-KK 1GHz RF Adapter UHF / SL16 / PL259 Female To Female Adapter UHF-KK

Glass-to-metal sealed production workshop

1GHz RF Adapter UHF / SL16 / PL259 Female To Female Adapter UHF-KK 1GHz RF Adapter UHF / SL16 / PL259 Female To Female Adapter UHF-KK

Obtained Certification Certificate

1GHz RF Adapter UHF / SL16 / PL259 Female To Female Adapter UHF-KK1GHz RF Adapter UHF / SL16 / PL259 Female To Female Adapter UHF-KK

Customer visit

1GHz RF Adapter UHF / SL16 / PL259 Female To Female Adapter UHF-KK 1GHz RF Adapter UHF / SL16 / PL259 Female To Female Adapter UHF-KK

Product packaging

1GHz RF Adapter UHF / SL16 / PL259 Female To Female Adapter UHF-KK 1GHz RF Adapter UHF / SL16 / PL259 Female To Female Adapter UHF-KK

Packaging and Shipping
  • Standard export carton 1GHz RF Adapter UHF / SL16 / PL259 Female To Female Adapter UHF-KK
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
