Brass RF Adapter ODM 4.3-10 / DIN -JK 4.3-10 Male To 7 / 16 / DIN / L29 Female Adapter
Brass RF Adapter ODM 4.3-10 / DIN -JK 4.3-10 Male To 7 / 16 / DIN / L29 Female Adapter
Brass RF Adapter ODM 4.3-10 / DIN -JK 4.3-10 Male To 7 / 16 / DIN / L29 Female Adapter
Brass RF Adapter ODM 4.3-10 / DIN -JK 4.3-10 Male To 7 / 16 / DIN / L29 Female Adapter
Brass RF Adapter ODM 4.3-10 / DIN -JK 4.3-10 Male To 7 / 16 / DIN / L29 Female Adapter
Brass RF Adapter ODM 4.3-10 / DIN -JK 4.3-10 Male To 7 / 16 / DIN / L29 Female Adapter
Brass RF Adapter ODM 4.3-10 / DIN -JK 4.3-10 Male To 7 / 16 / DIN / L29 Female Adapter
Brass RF Adapter ODM 4.3-10 / DIN -JK 4.3-10 Male To 7 / 16 / DIN / L29 Female Adapter
Brass RF Adapter ODM 4.3-10 / DIN -JK 4.3-10 Male To 7 / 16 / DIN / L29 Female Adapter
Brass RF Adapter ODM 4.3-10 / DIN -JK 4.3-10 Male To 7 / 16 / DIN / L29 Female Adapter
Specifications
Brand Name :
ZSX
Model Number :
4.3-10/DIN -JK
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
RF adapter 4.3-10/DIN -JK
Gender :
Male to female
Boday Material :
Brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.3
Description
RF Adapter 4.3-10/DIN -JK 4.3-10 Male To 7/16/DIN/L29 Female Adapter

4.3-10 to 7/16-JK is a 50Ω low-PIM RF adapter connecting 4.3-10 male and 7/16 female. It features brass body, nickel-plated housing and gold-plated contacts, delivering low insertion loss, excellent VSWR and high durability. With wide frequency coverage up to 6GHz, it ensures stable and reliable signal transmission, ideal for cellular base stations, DAS, telecom infrastructure and other high-performance RF systems.

Product display
Product Performance Details

Product model

4.3-10/DIN -JK

Contact resistance

Center contact:≤1mΩ

Outer contact:≤1mΩ

Characteristic impedance

50 ohm

Body material

Gold-plated brass

Frequency range

DC-6GHz

Insulator

 PTFE

Voltage standing wave ratio

≤1.2

Central conductor

Gold-plated beryllium copper

Medium pressure resistance

1000V RMS

Temperature range

-45℃~+125℃

Dielectric constant

≥5000MΩ

Durability

≥500 Cycles

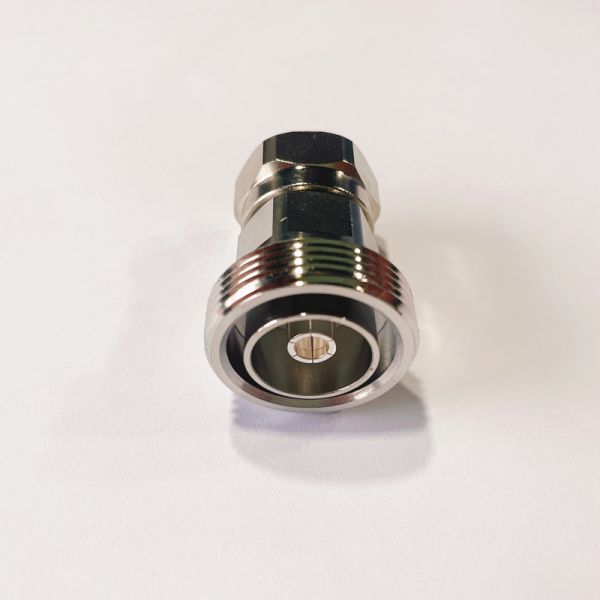

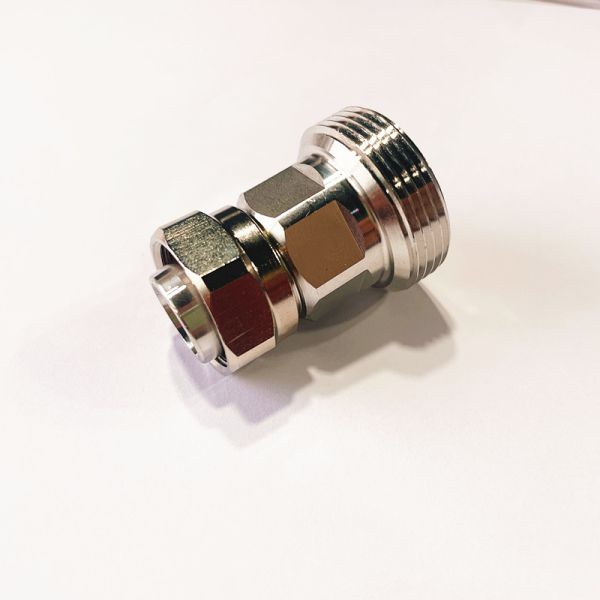

Physical product display
Brass RF Adapter ODM 4.3-10 / DIN -JK 4.3-10 Male To 7 / 16 / DIN / L29 Female Adapter Brass RF Adapter ODM 4.3-10 / DIN -JK 4.3-10 Male To 7 / 16 / DIN / L29 Female Adapter

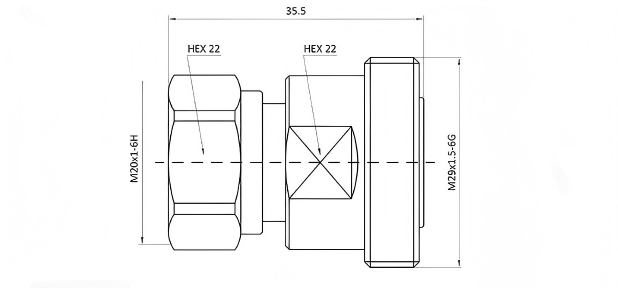

Product external dimensions
Brass RF Adapter ODM 4.3-10 / DIN -JK 4.3-10 Male To 7 / 16 / DIN / L29 Female Adapter
Related product recommendations
Brass RF Adapter ODM 4.3-10 / DIN -JK 4.3-10 Male To 7 / 16 / DIN / L29 Female Adapter Brass RF Adapter ODM 4.3-10 / DIN -JK 4.3-10 Male To 7 / 16 / DIN / L29 Female Adapter
Display of Strength
Office area
Brass RF Adapter ODM 4.3-10 / DIN -JK 4.3-10 Male To 7 / 16 / DIN / L29 Female Adapter Brass RF Adapter ODM 4.3-10 / DIN -JK 4.3-10 Male To 7 / 16 / DIN / L29 Female Adapter
Production Plant Area
Machining production workshop
Brass RF Adapter ODM 4.3-10 / DIN -JK 4.3-10 Male To 7 / 16 / DIN / L29 Female Adapter Brass RF Adapter ODM 4.3-10 / DIN -JK 4.3-10 Male To 7 / 16 / DIN / L29 Female Adapter
Precision Assembly Production Workshop
Brass RF Adapter ODM 4.3-10 / DIN -JK 4.3-10 Male To 7 / 16 / DIN / L29 Female Adapter Brass RF Adapter ODM 4.3-10 / DIN -JK 4.3-10 Male To 7 / 16 / DIN / L29 Female Adapter
Glass-to-metal sealed production workshop
Brass RF Adapter ODM 4.3-10 / DIN -JK 4.3-10 Male To 7 / 16 / DIN / L29 Female Adapter Brass RF Adapter ODM 4.3-10 / DIN -JK 4.3-10 Male To 7 / 16 / DIN / L29 Female Adapter
Obtained Certification Certificate
Brass RF Adapter ODM 4.3-10 / DIN -JK 4.3-10 Male To 7 / 16 / DIN / L29 Female Adapter Brass RF Adapter ODM 4.3-10 / DIN -JK 4.3-10 Male To 7 / 16 / DIN / L29 Female Adapter
Customer visit
Brass RF Adapter ODM 4.3-10 / DIN -JK 4.3-10 Male To 7 / 16 / DIN / L29 Female Adapter Brass RF Adapter ODM 4.3-10 / DIN -JK 4.3-10 Male To 7 / 16 / DIN / L29 Female Adapter
Product packaging
Brass RF Adapter ODM 4.3-10 / DIN -JK 4.3-10 Male To 7 / 16 / DIN / L29 Female Adapter Brass RF Adapter ODM 4.3-10 / DIN -JK 4.3-10 Male To 7 / 16 / DIN / L29 Female Adapter
Packaging and Shipping
Brass RF Adapter ODM 4.3-10 / DIN -JK 4.3-10 Male To 7 / 16 / DIN / L29 Female Adapter
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)

FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
