50 Ohm DC-6GHz Gold-Plated Brass RF Adapter for Reliable Signal Transmission
50 Ohm DC-6GHz Gold-Plated Brass RF Adapter for Reliable Signal Transmission
50 Ohm DC-6GHz Gold-Plated Brass RF Adapter for Reliable Signal Transmission
50 Ohm DC-6GHz Gold-Plated Brass RF Adapter for Reliable Signal Transmission
50 Ohm DC-6GHz Gold-Plated Brass RF Adapter for Reliable Signal Transmission
50 Ohm DC-6GHz Gold-Plated Brass RF Adapter for Reliable Signal Transmission
50 Ohm DC-6GHz Gold-Plated Brass RF Adapter for Reliable Signal Transmission
50 Ohm DC-6GHz Gold-Plated Brass RF Adapter for Reliable Signal Transmission
Specifications
Brand Name :
ZSX
Model Number :
4.3-10/SMA-JJ
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
$7.80-$9.95 (Depending on the quantity)
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
RF Adapter
Gender :
Male to Male
Boday Material :
Brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.3
Description
ODM RF Adapter 4.3-10 Male To SMA Male Mini DIN Male To SMA Male Adapter 50 Ohm
Product Overview

This RF Adapter is designed for RF (Radio Frequency, typically 3 kHz to 300 GHz frequency band) signal transmission systems. It serves as a passive component that enables reliable connections and signal conversion between different types of RF interfaces, impedances, or transmission media. The adapter ensures low loss, minimal reflection, and high stability of RF signals during transmission, making it suitable for communication, radar, test and measurement, aerospace, and medical equipment applications.

Product Specifications
Product Model4.3-10/SMA-JJ
Characteristic Impedance50 ohm
Frequency RangeDC-6GHz
Voltage Standing Wave Ratio≤1.3
Medium Pressure Resistance1000V RMS
Temperature Range-45℃ to +125℃
Dielectric Constant≥5000MΩ
Durability≥500 Cycles
Contact ResistanceCenter contact: (4.3-10): ≤1mΩ, (SMA): 3mΩ
Outer contact: (4.3-10): ≤1mΩ, (SMA): 2.5mΩ
Body MaterialGold-plated brass
InsulatorPTFE
Central ConductorGold-plated beryllium copper

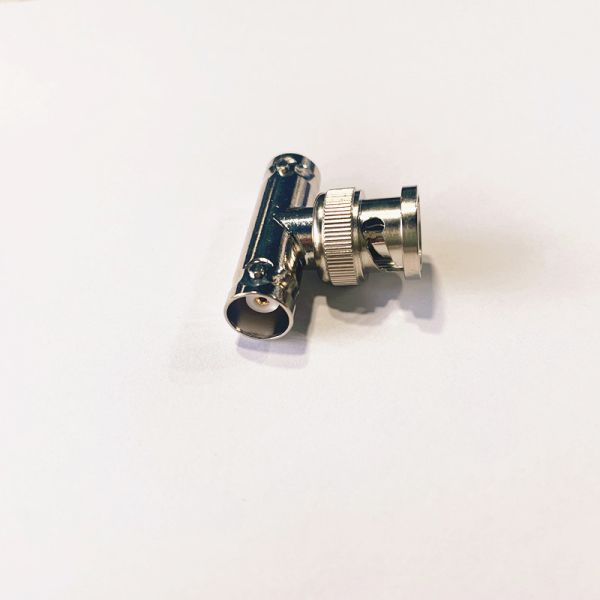

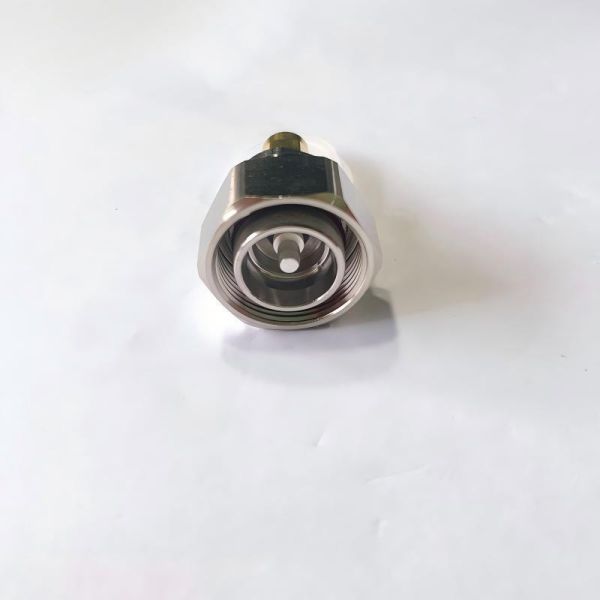

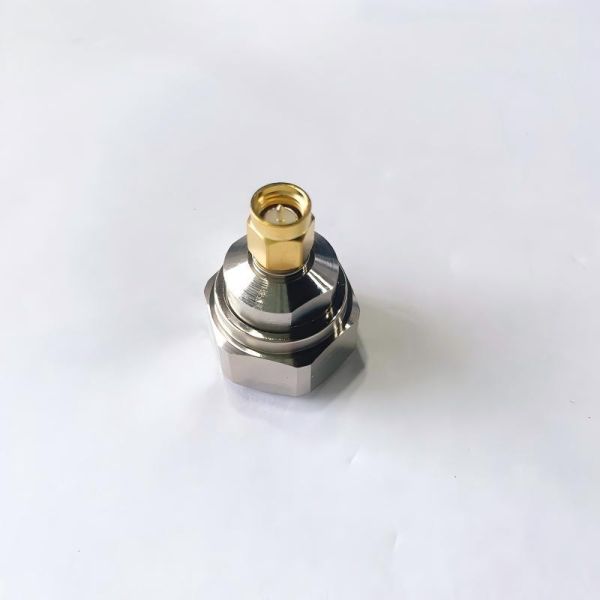

Product Display
50 Ohm DC-6GHz Gold-Plated Brass RF Adapter for Reliable Signal Transmission
50 Ohm DC-6GHz Gold-Plated Brass RF Adapter for Reliable Signal Transmission

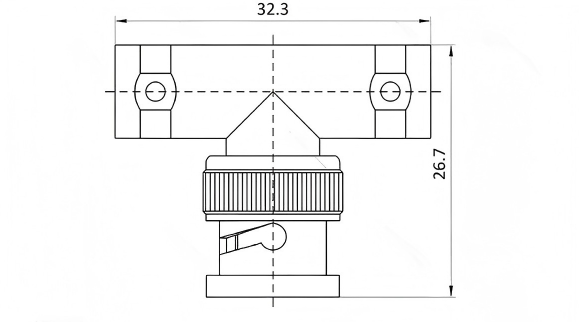

Product Dimensions
50 Ohm DC-6GHz Gold-Plated Brass RF Adapter for Reliable Signal Transmission
Related Products
50 Ohm DC-6GHz Gold-Plated Brass RF Adapter for Reliable Signal Transmission
50 Ohm DC-6GHz Gold-Plated Brass RF Adapter for Reliable Signal Transmission
Company Overview
Office Area
50 Ohm DC-6GHz Gold-Plated Brass RF Adapter for Reliable Signal Transmission
50 Ohm DC-6GHz Gold-Plated Brass RF Adapter for Reliable Signal Transmission
Production Facilities
Machining Production Workshop
50 Ohm DC-6GHz Gold-Plated Brass RF Adapter for Reliable Signal Transmission
50 Ohm DC-6GHz Gold-Plated Brass RF Adapter for Reliable Signal Transmission
Precision Assembly Production Workshop
50 Ohm DC-6GHz Gold-Plated Brass RF Adapter for Reliable Signal Transmission
50 Ohm DC-6GHz Gold-Plated Brass RF Adapter for Reliable Signal Transmission
Glass-to-Metal Sealed Production Workshop
50 Ohm DC-6GHz Gold-Plated Brass RF Adapter for Reliable Signal Transmission
50 Ohm DC-6GHz Gold-Plated Brass RF Adapter for Reliable Signal Transmission
Certifications
50 Ohm DC-6GHz Gold-Plated Brass RF Adapter for Reliable Signal Transmission
50 Ohm DC-6GHz Gold-Plated Brass RF Adapter for Reliable Signal Transmission
Customer Visits
50 Ohm DC-6GHz Gold-Plated Brass RF Adapter for Reliable Signal Transmission
50 Ohm DC-6GHz Gold-Plated Brass RF Adapter for Reliable Signal Transmission
Product Packaging
50 Ohm DC-6GHz Gold-Plated Brass RF Adapter for Reliable Signal Transmission
50 Ohm DC-6GHz Gold-Plated Brass RF Adapter for Reliable Signal Transmission
Packaging and Shipping
  • Standard export carton packaging
  • Customized specifications available including logo and other requirements
  • Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (based on quantity and ODM requirements)
50 Ohm DC-6GHz Gold-Plated Brass RF Adapter for Reliable Signal Transmission
Frequently Asked Questions
Are you a trading company or manufacturer?
Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing, and sales experience in aeronautics, astronautics, and commercial RF microwave transmission components.
What are the main products of your company?
Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors, and other microwave products.
Does your company accept customized products?
We accept ODM (Original Design Manufacturer) services.
Does your company provide free samples?
We support free samples with freight paid on delivery.
What is the minimum order quantity of your company's products?
200 pieces. The price is higher for orders under 200 pieces.
Which logistics company does your company ship through?
Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT year-round to ensure our customers receive their goods quickly with competitive shipping costs. We also offer air and sea freight options.
How long does it usually take to receive the goods?
Generally, 3-8 working days for international express, 5-8 working days for air freight.
What payment methods does your company accept?
We accept L/C, T/T, Western Union, and Trade Assurance (credit card & T/T).
How long is your warranty?
The warranty period is three months.
