50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range
50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range
50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range
50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range
50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range
50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range
50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range
50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range
50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range
50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range
Specifications
Brand Name :
ZSX
Model Number :
SMA-KYK
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
$0.80-$0.98(Depending on the quantity)
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
SMA Bulkhead Adapter
Gender :
Female to female
Boday Material :
Stainless steel
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.3
Description
50 Ohm SMA Bulkhead Adapter RF SMA Adapter Female To Female 6GHz SMA-KYK
RF Adapter SMA-KYK: SMA Female To Female Bulkhead Straight Adapter

RF Adapters are passive components used in signal transmission systems for Radio Frequency applications (typically 3 kHz to 300 GHz frequency band). Common types include SMA, N, BNC, TNC, MCX, UHF, SMP, 2.4mm, and 3.5mm. These adapters provide reliable connections and signal conversion between different RF interfaces, impedances, or transmission media, ensuring low loss, minimal reflection, and high stability during RF signal transmission. They are widely used in communications, radar, test and measurement, aerospace, medical equipment, and other fields.

Product Performance Specifications
Product Model SMA-KYK
Contact Resistance Center contact: ≤3mΩ
Outer contact: ≤2mΩ
Characteristic Impedance 50 ohm
Body Material Gold-plated brass
Frequency Range DC-6GHz
Insulator PTFE
Voltage Standing Wave Ratio ≤1.2
Central Conductor Gold-plated beryllium copper
Medium Pressure Resistance 1000V RMS
Temperature Range -45℃ to +125℃
Dielectric Constant ≥5000MΩ
Durability ≥500 Cycles

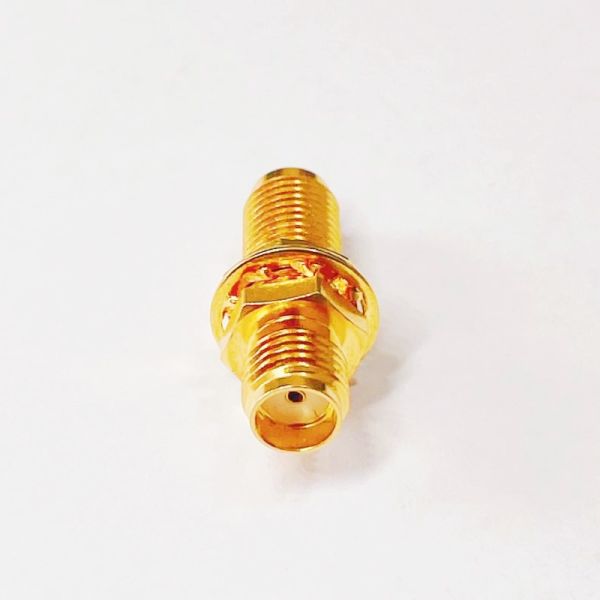

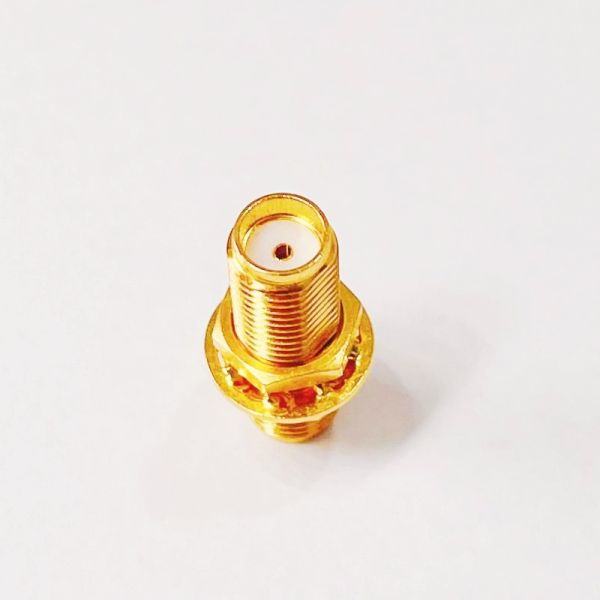

Physical Product Display
50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range
50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range

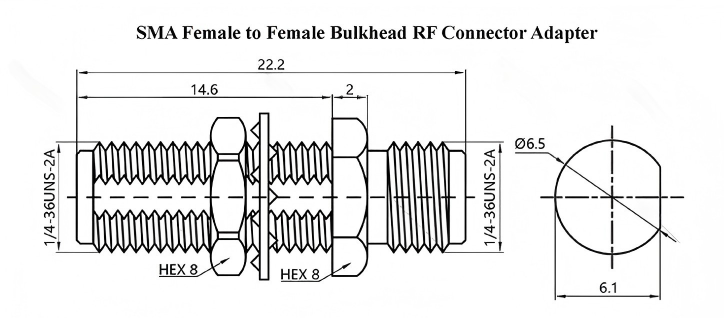

Product External Dimensions
50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range
Related Product Recommendations
50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range
50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range
Company Strength Display
Office Area
50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range
50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range
Production Plant Area
Machining Production Workshop
50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range
50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range
Precision Assembly Production Workshop
50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range
50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range
Glass-to-Metal Sealed Production Workshop
50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range
50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range
Obtained Certification Certificates
50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range
50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range
Customer Visits
50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range
50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range
Product Packaging
50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range
50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range
Packaging and Shipping
50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range
  • Standard export carton packaging
  • Customized specifications available (logo, etc.) according to customer requirements
  • Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (varies based on quantity, ODM requirements, etc.)
Frequently Asked Questions
Q: Are you a trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing, and sales experience in aeronautics, astronautics, and commercial RF microwave transmission components.

Q: What are the main products of your company?

A: Main products include RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors, and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM (Original Design Manufacturing) services.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. Pricing is higher for orders under 200 pieces.

Q: Which logistics company does your company ship through?

A: Our company cooperates with international logistics companies including DHL, UPS, FedEx, TNT year-round to ensure customers receive goods quickly with competitive shipping costs. We also offer air and sea freight options.

Q: How long does it usually take to receive the goods?

A: Typically 3-8 working days for international express, 5-8 working days for air freight.

Q: What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, and Trade Assurance (credit card & T/T).

Q: How long is your warranty?

A: The warranty period is three months.
