2 Holes RF Adapter Flange BMA To SMA Adapter DC-18GHz For RF Passive Components
2 Holes RF Adapter Flange BMA To SMA Adapter DC-18GHz For RF Passive Components
2 Holes RF Adapter Flange BMA To SMA Adapter DC-18GHz For RF Passive Components
2 Holes RF Adapter Flange BMA To SMA Adapter DC-18GHz For RF Passive Components
2 Holes RF Adapter Flange BMA To SMA Adapter DC-18GHz For RF Passive Components
2 Holes RF Adapter Flange BMA To SMA Adapter DC-18GHz For RF Passive Components
Specifications
Brand Name :
ZSX
Model Number :
BMA/SMA-KFK
Certification :
ISO9001
Place of Origin :
China
MOQ :
50
Price :
$0.99 --$1.25 (Depending on the quantity )
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
RF adapter BMA/SMA-KFK
Gender :
Female to female
Boday Material :
Brass
Insulator material :
PTFE
Working temperature :
-55℃~+125℃
VSWR :
≤ 1.25
Description
RF Adapter BMA Female (Jack) To SMA Female(Jack) 2 Holes Flange Connector

RF Adapter is a kind of used for RF (Radio Frequency, usually refers to 3 KHZ ~ 300 GHZ Frequency band) passive components in the signal transmission system, common types are SMA/N/of BNC/TNC/MCX/UHF/SMP / 2.4 MM / 3.5 MM, etc. The main function is to achieve reliable connection and signal conversion between different types of RF interfaces, impedances or transmission media, ensuring low loss, small reflection and high stability of RF signals during transmission. It is widely used in communication, radar, test and measurement, aerospace, medical equipment and other fields.

Product display
Product Performance Details
Product model BMA/SMA-KFK Contact resistance Center contact:≤3mΩ Outer contact:≤2mΩ
Characteristic impedance 50 ohm Body material Gold-plated brass
Frequency range DC-18GHz Insulator PTFE
Voltage standing wave ratio ≤1.3 Central conductor Gold-plated beryllium copper
Medium pressure resistance ≥750V RMS ,50Hz, at sea level Temperature range -40℃~+80℃
Dielectric constant ≥1000MΩ Durability ≥500 Cycles

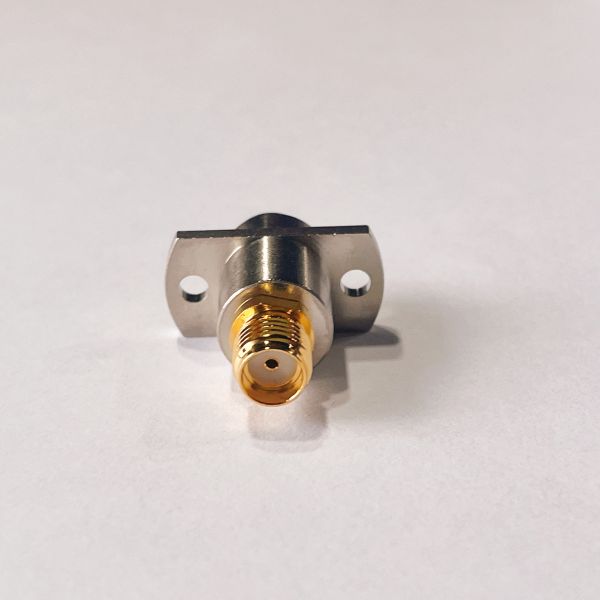

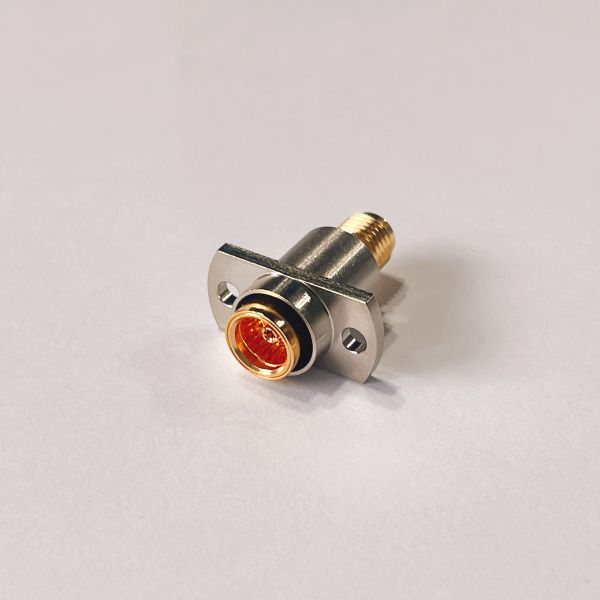

Physical product display
2 Holes RF Adapter Flange BMA To SMA Adapter DC-18GHz For RF Passive Components 2 Holes RF Adapter Flange BMA To SMA Adapter DC-18GHz For RF Passive Components

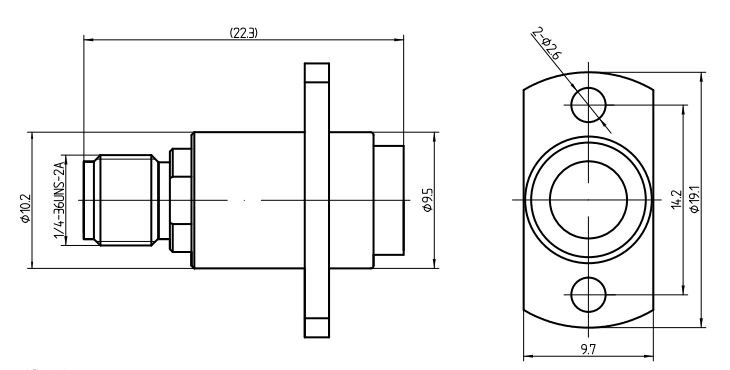

Product external dimensions
2 Holes RF Adapter Flange BMA To SMA Adapter DC-18GHz For RF Passive Components
Related product recommendations
2 Holes RF Adapter Flange BMA To SMA Adapter DC-18GHz For RF Passive Components 2 Holes RF Adapter Flange BMA To SMA Adapter DC-18GHz For RF Passive Components
Display of Strength

Production Plant Area
Machining production workshop
2 Holes RF Adapter Flange BMA To SMA Adapter DC-18GHz For RF Passive Components 2 Holes RF Adapter Flange BMA To SMA Adapter DC-18GHz For RF Passive Components
Precision Assembly Production Workshop
2 Holes RF Adapter Flange BMA To SMA Adapter DC-18GHz For RF Passive Components 2 Holes RF Adapter Flange BMA To SMA Adapter DC-18GHz For RF Passive Components
Glass-to-metal sealed production workshop
2 Holes RF Adapter Flange BMA To SMA Adapter DC-18GHz For RF Passive Components 2 Holes RF Adapter Flange BMA To SMA Adapter DC-18GHz For RF Passive Components
Obtained Certification Certificate
2 Holes RF Adapter Flange BMA To SMA Adapter DC-18GHz For RF Passive Components 2 Holes RF Adapter Flange BMA To SMA Adapter DC-18GHz For RF Passive Components
Customer visit
2 Holes RF Adapter Flange BMA To SMA Adapter DC-18GHz For RF Passive Components 2 Holes RF Adapter Flange BMA To SMA Adapter DC-18GHz For RF Passive Components
Product packaging
2 Holes RF Adapter Flange BMA To SMA Adapter DC-18GHz For RF Passive Components 2 Holes RF Adapter Flange BMA To SMA Adapter DC-18GHz For RF Passive Components
Packaging and Shipping
2 Holes RF Adapter Flange BMA To SMA Adapter DC-18GHz For RF Passive Components
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of military and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
