DC-1GHz RF Adapter Low Loss N Male To F Female Adapter For RF Passive Components
DC-1GHz RF Adapter Low Loss N Male To F Female Adapter For RF Passive Components
DC-1GHz RF Adapter Low Loss N Male To F Female Adapter For RF Passive Components
DC-1GHz RF Adapter Low Loss N Male To F Female Adapter For RF Passive Components
DC-1GHz RF Adapter Low Loss N Male To F Female Adapter For RF Passive Components
DC-1GHz RF Adapter Low Loss N Male To F Female Adapter For RF Passive Components
DC-1GHz RF Adapter Low Loss N Male To F Female Adapter For RF Passive Components
DC-1GHz RF Adapter Low Loss N Male To F Female Adapter For RF Passive Components
Specifications
Brand Name :
ZSX
Model Number :
N/F-JK
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
$1.29 --$1.60 (Depending on the quantity )
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
RF Adapter
Gender :
Male to female
Boday Material :
Brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.25
Description

N Male To F Female (British female) Adapter

N/F‑JK is a 50Ω RF adapter that converts N male to F female, widely used for antenna, cable, and RF system connection. It features a brass body with nickel-plated housing and gold-plated contacts, ensuring low insertion loss, excellent VSWR, and stable signal transmission up to 1GHz. With sturdy construction and reliable threaded coupling, this adapter provides secure connection and long service life, ideal for CATV, satellite, broadcast, telecom, and wireless communication applications.

Product display
Product Performance Details
Product model N/F-JK Contact resistance Center contact:≤1mΩ(N) 10mΩ(F) Outer contact:≤0.2mΩ(N) 5mΩ(F)
Characteristic impedance 50 ohm Body material Gold-plated brass
Frequency range DC-1GHz Insulator PTFE
Voltage standing wave ratio ≤1.25 Central conductor Gold-plated beryllium copper
Medium pressure resistance ≥1500V RMS ,50Hz, at sea level Temperature range -45℃~+125℃
Dielectric constant ≥5000MΩ Durability ≥500 Cycles

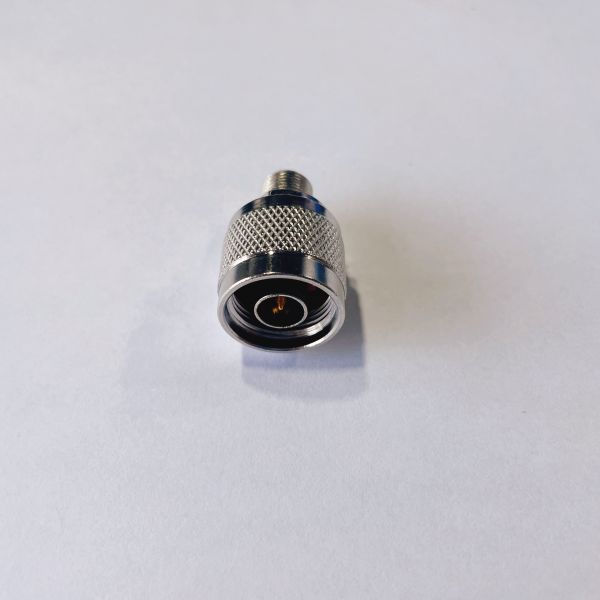

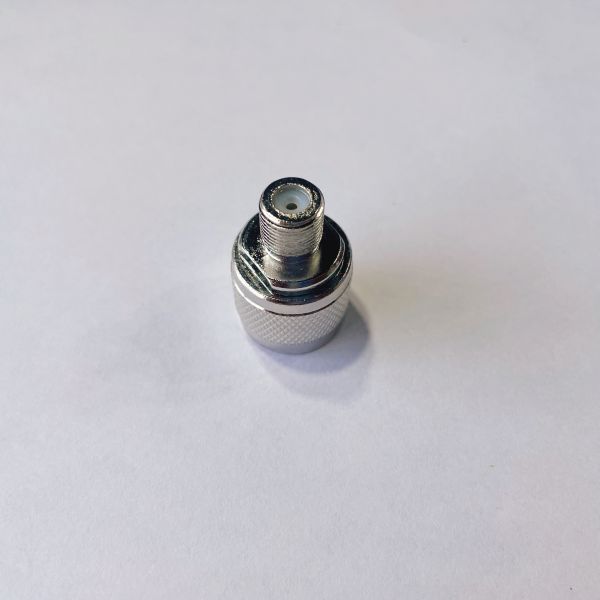

Physical product display
DC-1GHz RF Adapter Low Loss N Male To F Female Adapter For RF Passive Components DC-1GHz RF Adapter Low Loss N Male To F Female Adapter For RF Passive Components

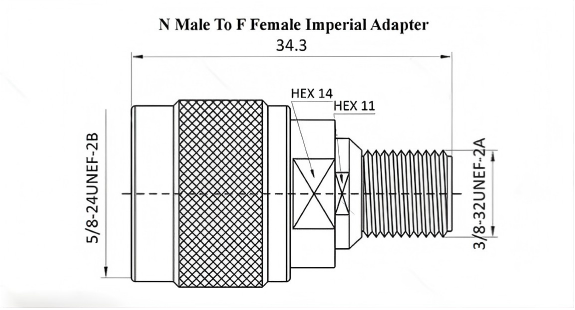

Product external dimensions
DC-1GHz RF Adapter Low Loss N Male To F Female Adapter For RF Passive Components
Related product recommendations
DC-1GHz RF Adapter Low Loss N Male To F Female Adapter For RF Passive Components DC-1GHz RF Adapter Low Loss N Male To F Female Adapter For RF Passive Components
Display of Strength
Office area
DC-1GHz RF Adapter Low Loss N Male To F Female Adapter For RF Passive Components DC-1GHz RF Adapter Low Loss N Male To F Female Adapter For RF Passive Components
Production Plant Area
Machining production workshop
DC-1GHz RF Adapter Low Loss N Male To F Female Adapter For RF Passive Components DC-1GHz RF Adapter Low Loss N Male To F Female Adapter For RF Passive Components
Precision Assembly Production Workshop
DC-1GHz RF Adapter Low Loss N Male To F Female Adapter For RF Passive Components DC-1GHz RF Adapter Low Loss N Male To F Female Adapter For RF Passive Components
Glass-to-metal sealed production workshop
DC-1GHz RF Adapter Low Loss N Male To F Female Adapter For RF Passive Components DC-1GHz RF Adapter Low Loss N Male To F Female Adapter For RF Passive Components
Obtained Certification Certificate
DC-1GHz RF Adapter Low Loss N Male To F Female Adapter For RF Passive Components DC-1GHz RF Adapter Low Loss N Male To F Female Adapter For RF Passive Components
Customer visit
DC-1GHz RF Adapter Low Loss N Male To F Female Adapter For RF Passive Components DC-1GHz RF Adapter Low Loss N Male To F Female Adapter For RF Passive Components
Product packaging
DC-1GHz RF Adapter Low Loss N Male To F Female Adapter For RF Passive Components DC-1GHz RF Adapter Low Loss N Male To F Female Adapter For RF Passive Components
Packaging and Shipping
DC-1GHz RF Adapter Low Loss N Male To F Female Adapter For RF Passive Components
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
