Customized RF Adapter 50 Ohm TNC To SMA Adapter RPTNC / RPSMA-JK
Customized RF Adapter 50 Ohm TNC To SMA Adapter RPTNC / RPSMA-JK
Customized RF Adapter 50 Ohm TNC To SMA Adapter RPTNC / RPSMA-JK
Customized RF Adapter 50 Ohm TNC To SMA Adapter RPTNC / RPSMA-JK
Customized RF Adapter 50 Ohm TNC To SMA Adapter RPTNC / RPSMA-JK
Customized RF Adapter 50 Ohm TNC To SMA Adapter RPTNC / RPSMA-JK
Customized RF Adapter 50 Ohm TNC To SMA Adapter RPTNC / RPSMA-JK
Customized RF Adapter 50 Ohm TNC To SMA Adapter RPTNC / RPSMA-JK
Specifications
Brand Name :
ZSX
Model Number :
RPTNC/RPSMA-JK
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
$0.98-$1.55 (Depending on the quantity)
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
RF Adapter
Gender :
Male to female
Boday Material :
Brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.3
Description

好的,我将严格遵循您的所有要求,将提供的 HTML 代码重构为一个独立的,自包含的,符合 HTML5 标准的模块化组件,并赋予其现代工业设计风格和彻底的样式隔离. 以下是重构后的代码: ```html

RF Adapter RPTNC/RPSMA-JK TNC External Screw Sleeve For Inner Hole To SMA External Thread For Inner Pin

RP-TNC/RP-SMA-JK RF adapter converts RP-TNC female to RP-SMA male, features 50Ω impedance, operates up to 11GHz with low insertion loss and VSWR ≤1.2:1. Constructed with brass body, nickel-plated shell and gold-plated contacts, it ensures stable signal transmission, high durability and reliable performance in harsh environments. it is widely used in wireless communication, WiFi, IoT, test equipment and industrial RF systems for quick, plug-and-play connectivity.

Product display
Product Performance Details

Product model

 RPTNC/RPSMA-JK Contact resistance

Center contact: (TNC):≤1.5mΩ (SMA): 3 mΩ

Outer contact: (TNC):≤0.2mΩ (SMA) : 2mΩ

Characteristic impedance

50 ohm

Body material

Gold-plated brass

Frequency range

DC-6GHz

 Insulator PTFE

Voltage standing wave ratio

≤1.3

Central conductor

Gold-plated beryllium copper

Medium pressure resistance

1000V RMS

Temperature range

-45℃~+125℃

Dielectric constant

≥5000MΩ

Durability

≥500 Cycles

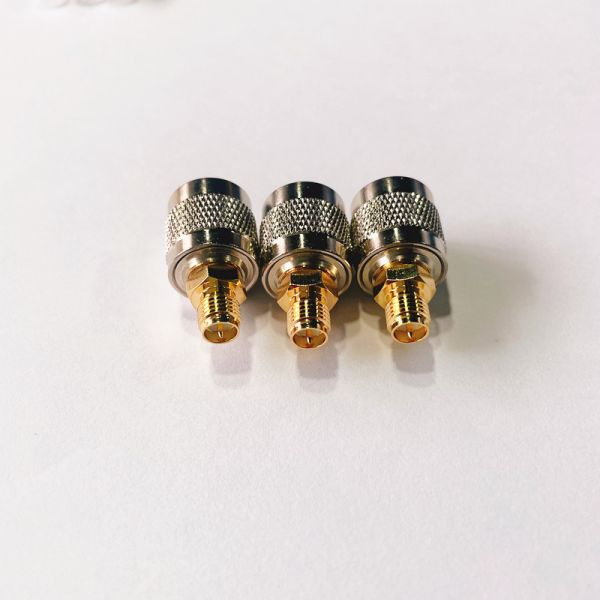

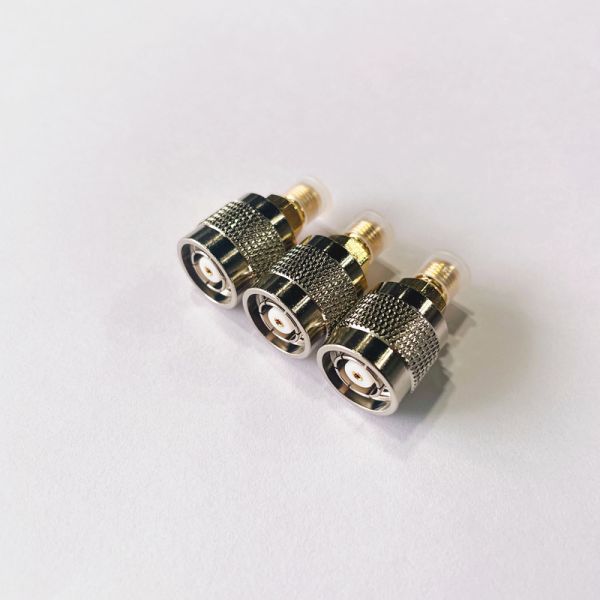

Physical product display
Customized RF Adapter 50 Ohm TNC To SMA Adapter RPTNC / RPSMA-JK Customized RF Adapter 50 Ohm TNC To SMA Adapter RPTNC / RPSMA-JK

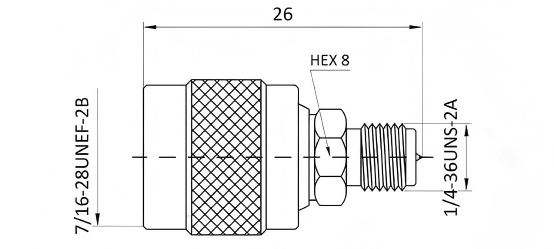

Product external dimensions
Customized RF Adapter 50 Ohm TNC To SMA Adapter RPTNC / RPSMA-JK
