Specifications
Supply Ability :
1000000Pcs/Year
Name :
RF Adapter N to BNC adapter
Model Number :
N-7/16-KK
Price :
$3.40-$4.60(Depending on the quantity)
Boday Material :
Brass
Insulator material :
PTFE
MOQ :
10 pcs
Delivery Time :
5-8 days
VSWR :
≤ 1.25
Payment Terms :
T/T,D/P,Alipay
Gender :
Female to female
Working temperature :
-45℃~+125℃
Certification :
ISO9001
Place of Origin :
China
Packaging Details :
Carton packaging
Brand Name :
ZSX
Description

N Female to 7/16 DIN Female Straight Coaxial Adapter N-7/16-KK

This 50Ω straight RF adapter converts N female to 7/16 DIN female ports for telecom base stations and RF testing. It features low VSWR, low PIM and high power capacity. Made of nickel-plated brass with silver inner contact and PTFE insulator, it supports DC-6GHz, stable signal transmission and over 500 mating cycles. RoHS compliant, suitable for 4G/5G antennas, repeaters and test instruments.

Product display
Product Performance Details
Product model N-7/16-KK Contact resistance

Center contact(N):≤1mΩ Outer contact(N):≤0.2mΩ

Center contact(7/16):≤1.5mΩ Outer contact(7/16):≤0.4mΩ
Characteristic impedance 50 ohm Body material Copper plated with nickel
Frequency range DC-6GHz Insulator PTFE
Voltage standing wave ratio ≤1.25 Central conductor Gold-plated beryllium copper
Medium pressure resistance ≥1500V RMS ,50Hz, at sea level Temperature range -45℃~+125℃
Dielectric constant ≥5000MΩ Durability ≥500 Cycles

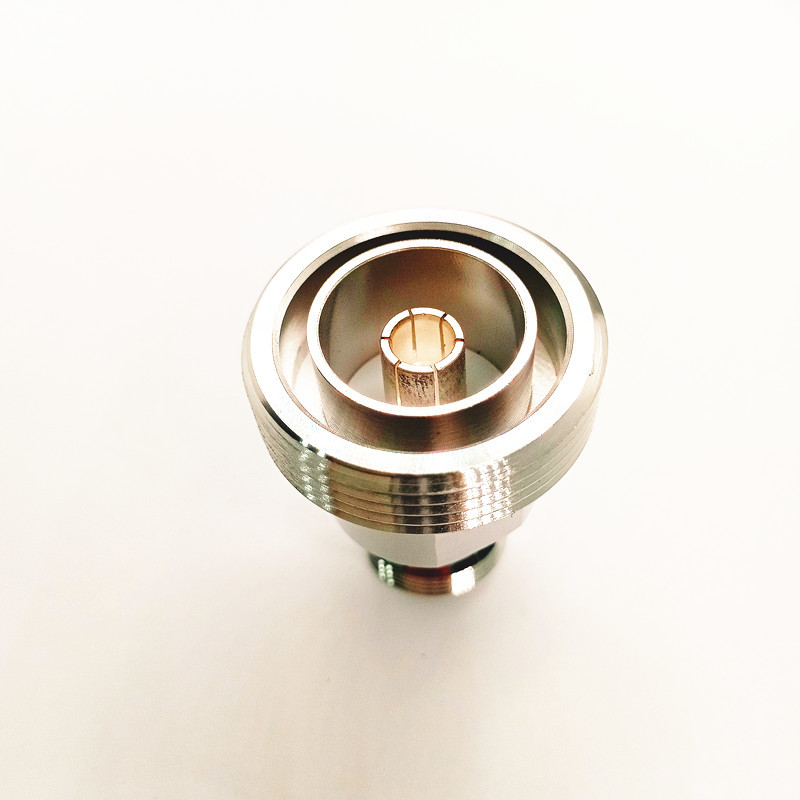

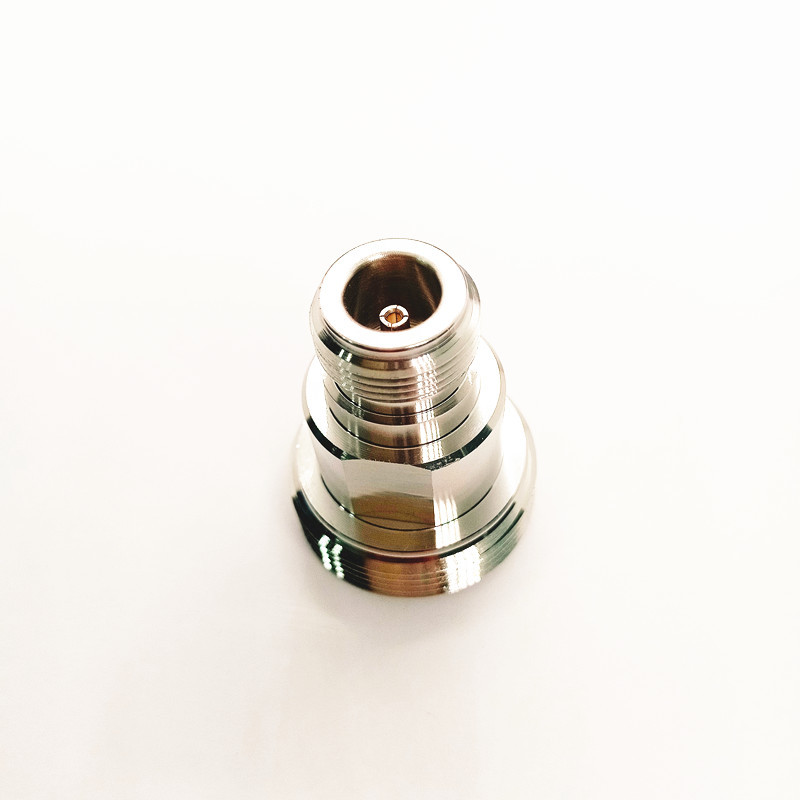

Physical product display

N Female To 7/16 DIN Female Straight Coaxial Adapter N-7/16-KK Adapter N Female To 7/16 DIN Female Straight Coaxial Adapter N-7/16-KK Adapter

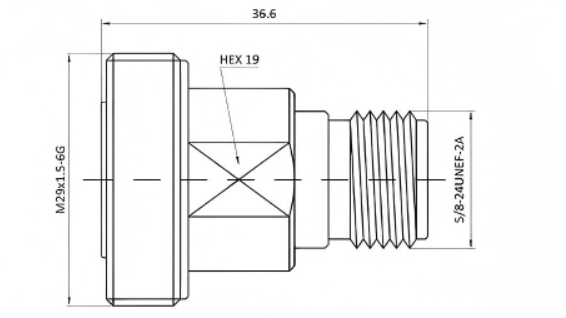

Product external dimensions

N Female To 7/16 DIN Female Straight Coaxial Adapter N-7/16-KK Adapter

Related product recommendations

N Female To 7/16 DIN Female Straight Coaxial Adapter N-7/16-KK Adapter N Female To 7/16 DIN Female Straight Coaxial Adapter N-7/16-KK Adapter

Display of Strength
Office area

N Female To 7/16 DIN Female Straight Coaxial Adapter N-7/16-KK Adapter N Female To 7/16 DIN Female Straight Coaxial Adapter N-7/16-KK Adapter

Production Plant Area
Machining production workshop

N Female To 7/16 DIN Female Straight Coaxial Adapter N-7/16-KK Adapter N Female To 7/16 DIN Female Straight Coaxial Adapter N-7/16-KK Adapter

Precision Assembly Production Workshop

N Female To 7/16 DIN Female Straight Coaxial Adapter N-7/16-KK Adapter N Female To 7/16 DIN Female Straight Coaxial Adapter N-7/16-KK Adapter

Glass-to-metal sealed production workshop

N Female To 7/16 DIN Female Straight Coaxial Adapter N-7/16-KK Adapter N Female To 7/16 DIN Female Straight Coaxial Adapter N-7/16-KK Adapter

Obtained Certification Certificate

N Female To 7/16 DIN Female Straight Coaxial Adapter N-7/16-KK AdapterN Female To 7/16 DIN Female Straight Coaxial Adapter N-7/16-KK Adapter

Customer visit

N Female To 7/16 DIN Female Straight Coaxial Adapter N-7/16-KK Adapter N Female To 7/16 DIN Female Straight Coaxial Adapter N-7/16-KK Adapter

Product packaging

N Female To 7/16 DIN Female Straight Coaxial Adapter N-7/16-KK Adapter N Female To 7/16 DIN Female Straight Coaxial Adapter N-7/16-KK Adapter

Packaging and Shipping

N Female To 7/16 DIN Female Straight Coaxial Adapter N-7/16-KK Adapter

  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Alipay, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
