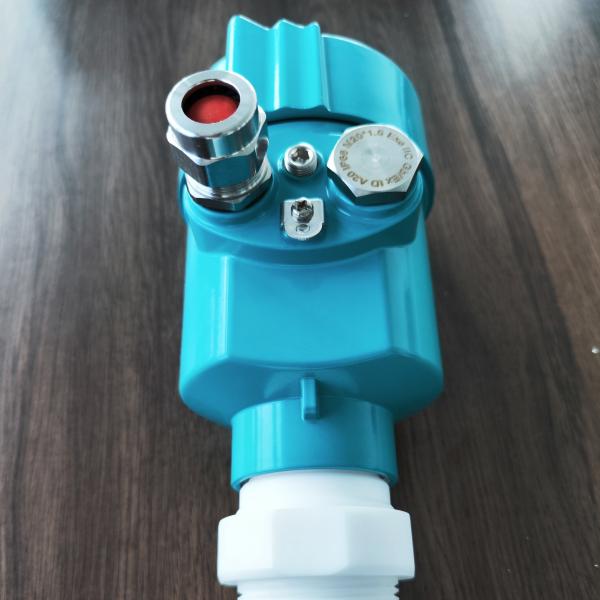

30 meter Radar Level Instrument Meter High Resolution CNEX
30 meter Radar Level Instrument Meter High Resolution CNEX
30 meter Radar Level Instrument Meter High Resolution CNEX
30 meter Radar Level Instrument Meter High Resolution CNEX
Specifications
Brand Name :
DTS
Model Number :
DTS-RD
Certification :
CNEX
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000
Packaging Details :
Carton
Grade :
Industrial
Customized support :
OEM, ODM
Model :
DTS-RD
Application :
Corrosive and pressure liquid
Process Temperature :
-40℃~+120℃
Process Pressure :
-0.1~2.5MPa
Process Connection :
Flange from DN50
Measuring Range :
30m
Description

Professional Manufacturer 80GHz Radar Level Instrument Sensor Meter Transmitter

Product Description:

Radar Level Instrument is capable of accurately measuring the maximum distance up to 120 meters.

The maximum measurement accuracy of the radar level measuring instrument is extremely high, yet the device is simple to use which makes it beneficial to many industrial manufacturers. High resolution achievable with the radar measurements helps reduce errors in measurement and also reduce manual inspection time.

Radar measurement: Measuring Principle
Radar level meter works with high-frequency radar pulses which are emitted by an antenna and reflected from the medium surface due to a change of the dc value (relative dielectric constant). The Time-of-Flight of the reflected radar pulse is directly proportional to the distance traveled. If the tank geometry is known, the level can be calculated from this variable.

Features:

  • 1. The measurement accuracy of millimeter-wave radar can reach ± 1mm, and the measurement blind area is 50mm.
    2. Smaller antenna size, to meet the more working conditions for measurement.
    3.A variety of lens antennas, 3 emission Angle, more concentrated energy, stronger echo signal, under the same industrial and mining conditions, with higher reliability than other radar products.
    4. It is more penetrating and can be used normally in the case of adhesion and condensation.
    5.The dynamic signal range is larger and is more stable for measurements of low permittivity media.
    6.Multiple measurement modes, and the radar reaction time is less than 1S in the rapid measurement mode.

Technical Parameters:

Model DTS-RD
Measuring range 30m
Application Corrosive and pressure liquid
Frequency 80GHz
Signal output 4…20mA/HART; RS485/MODBUS

Connection

 Bluetooth/NB-iot/4G
Resolution 1mm
Accuracy ±2mm
Material Stainless Steel+PTFE
Protection Level IP67
Process Connection Flange from DN50
Power Supply Two Wires DC24±6V; Four Wires AC220V
Process temperature -40~+120℃
Process pressure (-0.1~2.5)MPa

Applications:

30 meter Radar Level Instrument Meter High Resolution CNEX

Packing and Shipping:

30 meter Radar Level Instrument Meter High Resolution CNEX
