Product Description:

Radar measurement: Measuring Principle
Radar level meter works with high-frequency radar pulses which are emitted by an antenna and reflected from the medium surface due to a change of the dc value (relative dielectric constant). The Time-of-Flight of the reflected radar pulse is directly proportional to the distance traveled. If the tank geometry is known, the level can be calculated from this variable.

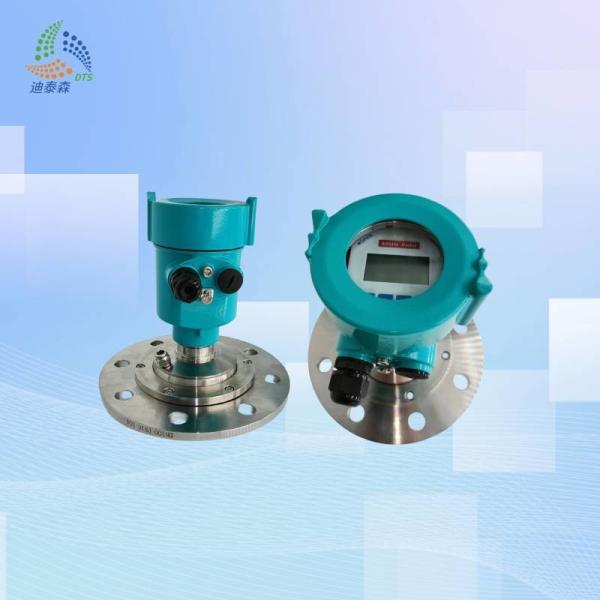

The 80GHz Radar Level Transmitter can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, it is an ideal solution for level control in the production process. With Air or Nitrogen purge connection, this DTS-RD-85-A is suitalbe for solid and power with heavy dust.

Easy-to-install radar level measurement with flanged, threaded, and sanitary process connections for every application. This broad range of devices are highly reliable and precise, featuring innovative operations and design for your industry and your process.

Features:

• 1. The non-contact measurement, no pollution, no wear and tear
  2. The small antenna size, easy to install
  3. The shorter wavelength, the inclined solid surface has a better reflection
  4. Measurement small blind for measuring small can also have a good effect
  5. The small beam angle, energy concentration, while enhancing the ability to echo, is conducive to avoid interference thereof
  6. hardly affected by corrosion foam
  7. virtually unaffected by temperature and pressure steam
  8. severe dust environment instruments can accurately read the true echo
  9. The high signal to noise ratio, even in case of fluctuations can result in better performance
• 10. Air purge connection or Nitrogen purge connection,efficient cleaning.
•

Technical Parameters:

Applications:

This DTS-RD-85-A Radar Level Transmitter is applicable for high silos, segmented containers, containers with mising systems, silos with reforcing struts, mounting close to the vessel vall. Such as Grain Storage, Bran, Fumed silica, Very light fly ash, Plastic powder, Dry wood chips, Cement, Cement silo etc, all these could use DTS-RD-85-A to monitor the level.
