30m Liquid Hygienic Radar Type Level Transmitter non contact
30m Liquid Hygienic Radar Type Level Transmitter non contact
30m Liquid Hygienic Radar Type Level Transmitter non contact
30m Liquid Hygienic Radar Type Level Transmitter non contact
30m Liquid Hygienic Radar Type Level Transmitter non contact
30m Liquid Hygienic Radar Type Level Transmitter non contact
Specifications
Brand Name :
DTS
Model Number :
DTS-RD-83-B
Place of Origin :
China
Certification :
CNEX
MOQ :
1
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000
Packaging Details :
Carton
Grade :
Industrial
Customized Support :
OEM, ODM
Model :
DTS-RD-83-B
Application :
Liquid-hygienic
Measuring Range :
30m
Frequency :
80GHz
Material :
Stainless Steel+PTFE
Process Connection :
Clamp from φ50.5
Description

30m Liquid-Hygienic Radar Level Instrument For Food Manufacturing 80GHz Radar Level Meter Gauge Transmitter Sensor

Product Description:

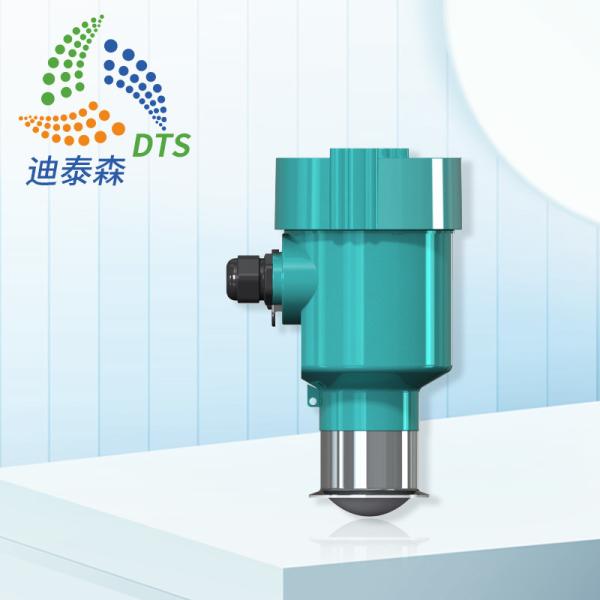

80GHz non-contact radar level sensor can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, this series is an ideal solution for level control in the production process.

Features:

  • The size of the antenna is small, which makes it easy to install. This non-contact radar will not cause any wear or pollution. It is almost immune to corrosion and foam and it is almost unaffected by the changes in the water vapour, temperature and pressure in the atmosphere. The beam angle is also small, concentrating the energy and thus enhancing its echo ability. As a result, it is more likely to avoid other interference objects.
  • 30m Liquid Hygienic Radar Type Level Transmitter non contact

Technical Parameters:

Model DTS-RD-83-B
Application Liquid-hygienic
Measuring Range 30m
Frequency 80GHz
Process Connection Clamp from φ50.5
Process Pressure -0.1~1MPa
Material Stainless Steel+PTFE
Power Supply Two Wires DC24±6V; Four Wires AC220V
Process temperature -40~+120℃
Protection Level IP67
Accuracy ±2mm
Signal output

4…20mA/HART
Digital output RS485/MODBUS
Connection Bluetooth/NB-iot/4G

Applications:

30m Liquid Hygienic Radar Type Level Transmitter non contact

Packing and Shipping:

The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.

30m Liquid Hygienic Radar Type Level Transmitter non contact
