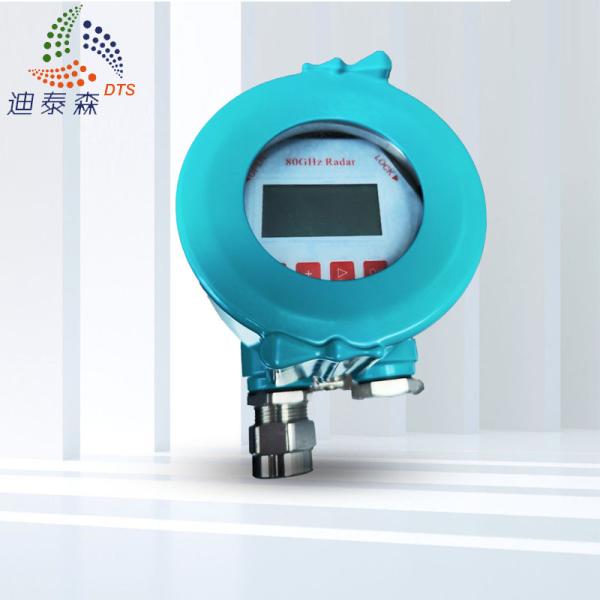

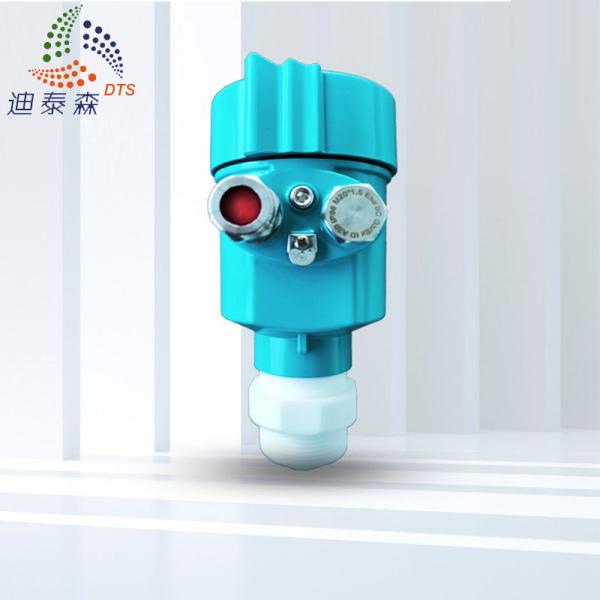

PTFE Radar Level Instrument HART Radar Gauge For Level Measurement
PTFE Radar Level Instrument HART Radar Gauge For Level Measurement
PTFE Radar Level Instrument HART Radar Gauge For Level Measurement
PTFE Radar Level Instrument HART Radar Gauge For Level Measurement
PTFE Radar Level Instrument HART Radar Gauge For Level Measurement
PTFE Radar Level Instrument HART Radar Gauge For Level Measurement
Specifications
Brand Name :
DTS
Model Number :
DTS-RD-82-C
Place of Origin :
China
Certification :
CNEX
MOQ :
1
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000
Packaging Details :
Carton
Grade :
Industrial
Customized support :
OEM, ODM
Model :
DTS-RD-82-C
Application :
Liquid; Corrosive liquid
Measuring Range :
30m
Frequency :
80GHz
Material :
Stainless Steel+PTFE
Process Temperature :
-40℃~+120℃
Description

Radar Level Instrument IP67 Protection 80GHz Radar Level Meter Gauge Transmitter Sensor 30m for Corrosive liquid

Product Description:

Radar level measuring instrument is an advanced device for distance measuring. With its optimization on the antenna, it can measure up to 30 meters accurately. Additionally, it comes with powerful microprocessors, allowing the device to analyze signals faster and enables it to be used in complex conditions, such as level of corrossive and pressure liquid. The device is valuable for multiple industries.

Features:

  • 80GHz FMCW technology
    False echo suppression option
    Narrow beam, small blind zone and accurate measurement
    Unaffected by temperature fluctuations
    Resistant to dirt and buildup
    Measurement under vacuum and high pressure
    Small size, easy to use, less maintenance

Technical Parameters:

Model DTS-RD-82-C
Measuring range 30m
Application Corrosive liquid; Liquid
Protection Level IP67
Process Connection Thread G1½; Flange DN50
Power Supply Two Wires DC24±6V; Four Wires AC220V
Connection Bluetooth/NB-iot/4G
Frequency 80GHz
Accuracy ±2mm
Process Temperature -40℃~+120℃
Process Pressure -0.1~0.1MPa
Material Stainless Steel+PTFE
Signal output 4…20mA/HART
Digital output RS485/MODBUS

Applications:

PTFE Radar Level Instrument HART Radar Gauge For Level Measurement

Packing and Shipping:

The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.

PTFE Radar Level Instrument HART Radar Gauge For Level Measurement
