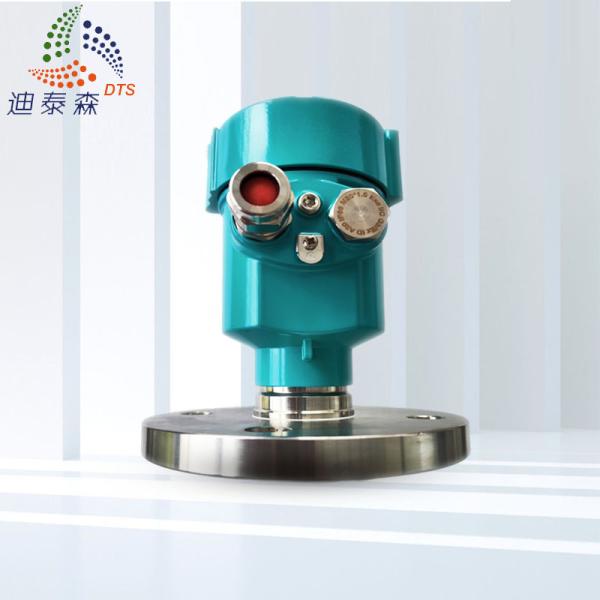

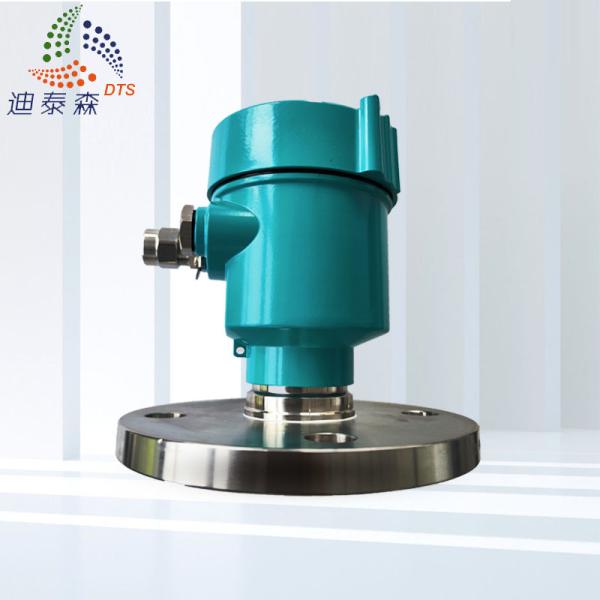

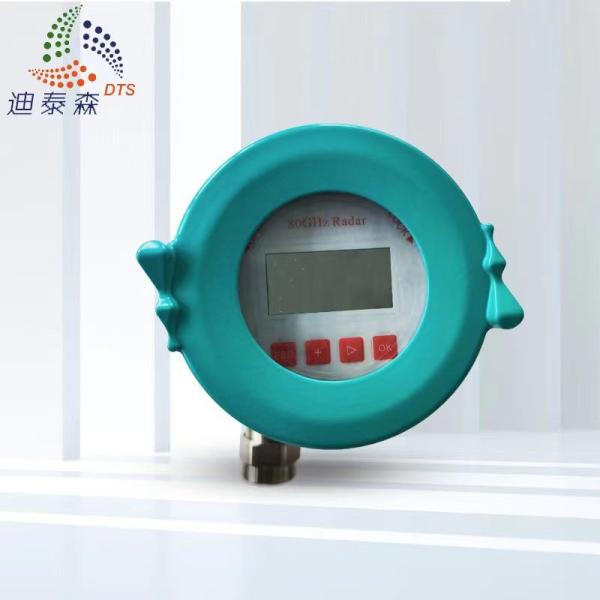

30 Meters Radar Tank Level Indicator CNEX With IP67 Protection
30 Meters Radar Tank Level Indicator CNEX With IP67 Protection
30 Meters Radar Tank Level Indicator CNEX With IP67 Protection
30 Meters Radar Tank Level Indicator CNEX With IP67 Protection
30 Meters Radar Tank Level Indicator CNEX With IP67 Protection
30 Meters Radar Tank Level Indicator CNEX With IP67 Protection
Specifications
Brand Name :
DTS
Model Number :
DTS-RD-83-A
Place of Origin :
China
Certification :
CNEX
MOQ :
1
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000
Packaging Details :
Carton
Grade :
Industrial
Customized support :
OEM, ODM
Model :
DTS-RD-83-A
Application :
Corrosive and pressure liquid
Process Temperature :
-40℃~+120℃
Process Pressure :
-0.1~2.5MPa
Process Connection :
Flange from DN50
Measuring Range :
30m
Description

Radar Level Instrument For Corrosive And Pressure Liquid With IP67 Protection -0.1~2.5MPa Process Pressure

Product Description:

Radar Level Instrument is capable of accurately measuring the maximum distance up to 30 meters.

The maximum measurement accuracy of the radar level measuring instrument is extremely high, yet the device is simple to use which makes it beneficial to many industrial manufacturers. High resolution achievable with the radar measurements helps reduce errors in measurement and also reduce manual inspection time.

With its advanced technology and user-friendly functions, the radar level measuring instrument has become an ideal tool for industrial applications.

Features:

  • 80GHz FMCW technology
    False echo suppression option
    Narrow beam, small blind zone and accurate measurement
    Unaffected by temperature fluctuations
    Resistant to dirt and buildup
    Measurement under vacuum and high pressure
    Small size, easy to use, less maintenance

Technical Parameters:

Model DTS-RD-83-A
Measuring range 30m
Application Corrosive and pressure liquid
Frequency 80GHz
Signal output 4…20mA/HART; RS485/MODBUS

Connection

 Bluetooth/NB-iot/4G
Accuracy ±2mm
Material Stainless Steel+PTFE
Protection Level IP67
Process Connection Flange from DN50
Power Supply Two Wires DC24±6V; Four Wires AC220V
Process temperature -40~+120℃
Process pressure (-0.1~2.5)MPa

Applications:

30 Meters Radar Tank Level Indicator CNEX With IP67 Protection

Packing and Shipping:

30 Meters Radar Tank Level Indicator CNEX With IP67 Protection
