Guide Rail Temperature Transmitter Expert Integration Solutions
Guide Rail Temperature Transmitter Expert Integration Solutions
Guide Rail Temperature Transmitter Expert Integration Solutions
Guide Rail Temperature Transmitter Expert Integration Solutions
Guide Rail Temperature Transmitter Expert Integration Solutions
Guide Rail Temperature Transmitter Expert Integration Solutions
Guide Rail Temperature Transmitter Expert Integration Solutions
Guide Rail Temperature Transmitter Expert Integration Solutions
Specifications
Model Number :
QW-SLS76
Application :
Widely
Model No :
TZ-PTT04C/TZ-PTT04R/TZ-PTT04V
Payment Terms :
T/T,D/P,D/A,L/C
Delivery Time :
5-8 work days
The Maximum Current :
50mA
Thread Connection Type :
1/2NPT or 1/4NPT
Input Signal :
PT100
Warranty Time :
12 months
Supply Ability :
100PCS/Month
Price :
Negotiable
Place of Origin :
China
Packaging Details :
Carton or wooden box
Output Signal :
4-20 mA, HART, FOUNDATION Fieldbus
Brand Name :
QINWEIYB
Output :
0...23 mA / 16 mA
Object Distance Ratio :
20 : 1
MOQ :
1Set
Sensing Element :
NDIR
Description

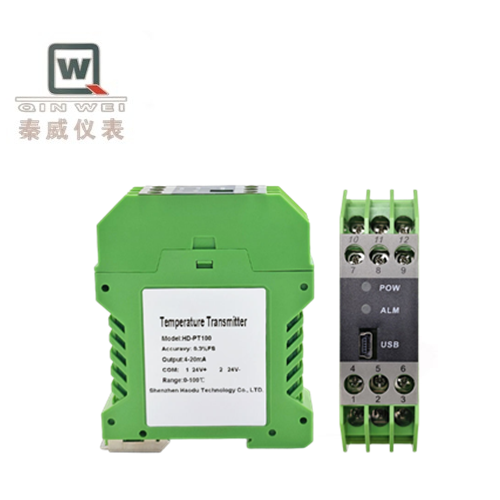

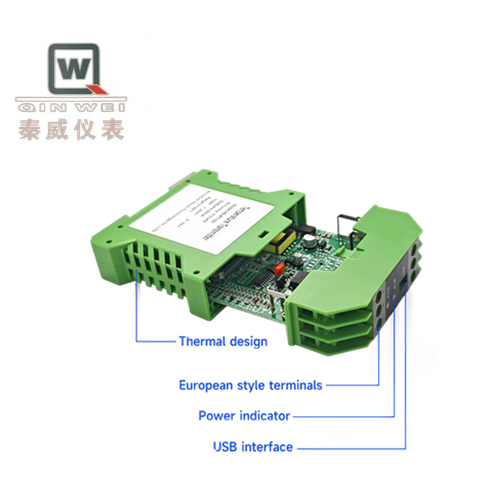

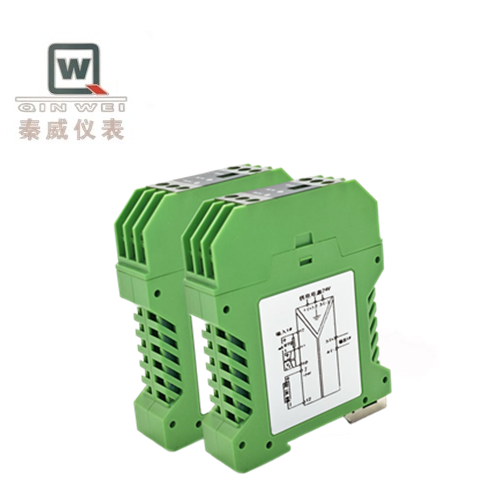

A rail-mounted temperature transmitter is a modular industrial instrument that adopts the standard DIN rail installation method to convert the signals from a resistance temperature detector (RTD) or thermocouple (TC) into standard electrical signals, such as 4-20mA, for output.

Core advantages:
  • Rail-mounted installation, standardized wiring, facilitating centralized management
  • Signal isolation, effectively suppressing ground loop interference, enhancing system stability
  • High precision and fast response
  • Supports signal distribution (one input, multiple outputs), allowing one sensor to serve multiple systems
  • Easy to replace and maintain, without the need to modify on-site pipelines
Rail-mounted vs Integrated Temperature Transmitters (Must-Memorize Comparison)
Comparison Item Rail-mounted Temperature Transmitter Integrated Temperature Transmitter
Installation Location Control cabinet DIN rail Industrial field temperature measurement points (pipes, equipment)
Signal Transmission From on-site sensor wire to cabinet transmitter then to control system Direct on-site transmission to standard signal for remote transmission
Anti-interference Three-terminal isolation, strong anti-interference Transmit on-site, reducing interference transmission
Wiring Relatively long sensor cable Remote transmission as standard signal, better wiring
Applicable Scenarios Signal processing and centralized transmission of multiple measurement points in the cabinet Single-point temperature measurement on-site and long-distance transmission
Application scenarios
  • Industrial process control: Temperature signal acquisition and conversion in industries such as power, metallurgy, chemical engineering, petroleum, and manufacturing.
  • Building automation: Temperature monitoring in air conditioning and heating systems.
  • Mechanical manufacturing: Temperature monitoring and protection of equipment.
  • System integration: As a supporting unit for PLC, DCS systems and unit combination instruments, it completes signal isolation and conversion.

Overall, the rail-mounted temperature transmitter is an expert in "solving integration problems". Its selection logic is very clear: when you need to centrally introduce the signals from multiple on-site temperature sensors into the control room and perform standardization and isolation processing, it is the most suitable solution.
