Environmental Monitoring System 4G Cloud Data Upload Station
Environmental Monitoring System 4G Cloud Data Upload Station
Environmental Monitoring System 4G Cloud Data Upload Station
Environmental Monitoring System 4G Cloud Data Upload Station
Environmental Monitoring System 4G Cloud Data Upload Station
Environmental Monitoring System 4G Cloud Data Upload Station
Environmental Monitoring System 4G Cloud Data Upload Station
Environmental Monitoring System 4G Cloud Data Upload Station
Specifications
Price :
Negotiable
Display Type :
Touchscreen Display
Working humidity :
0-93%RH
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
HCHO Range :
0–10.0 ppm
Equipment size(mm) :
738*810*200
Model Number :
HT-MS100
TVOC Range :
0–9.999 mg/m³
Delivery Time :
5-8 work days
Temperature Range :
-20°C to 60°C
Packaging Details :
Carton or wooden box
Reading Resolution :
0.01 IP Rating
Brand Name :
QINWEIYB
Type :
Outdoor Air Quality Monitor
Place of Origin :
China
Humidity Range :
0–93% RH
MOQ :
1Set
Temperature Accuracy :
±0.5°C
Description

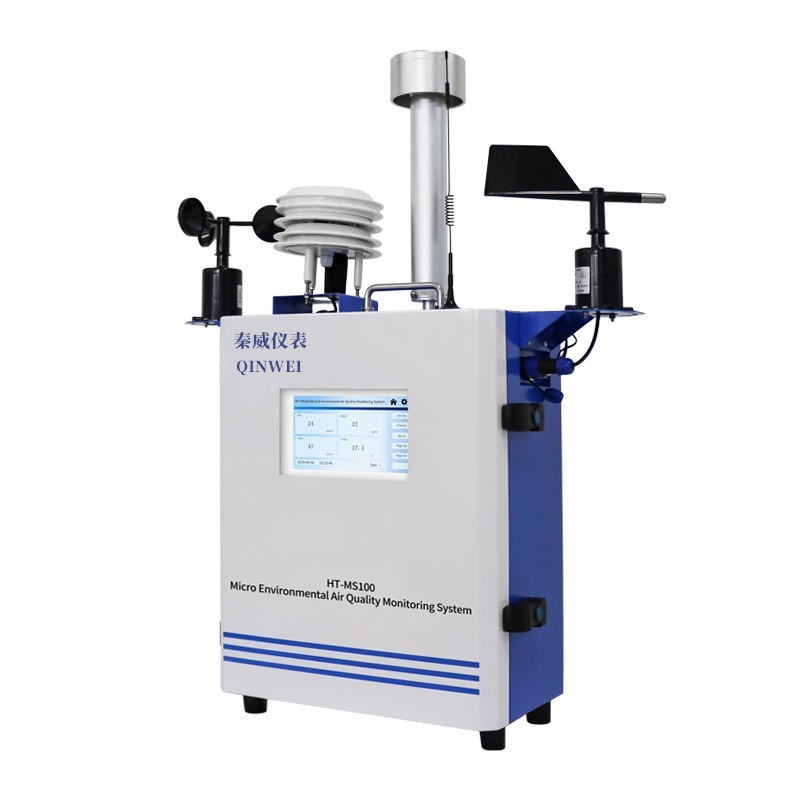

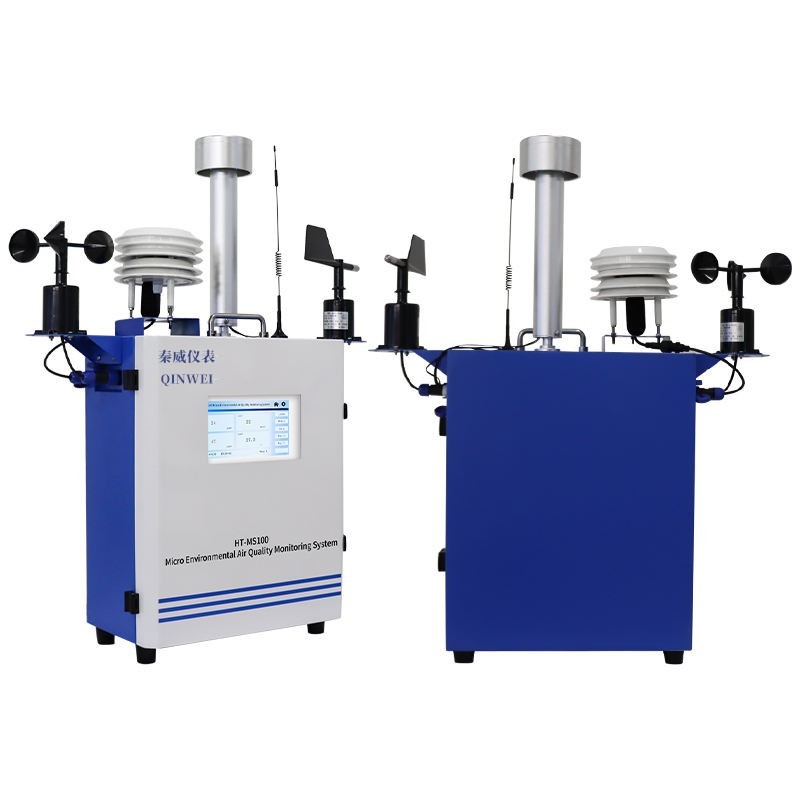

HT-MS100 Micro Environmental Air Quality Monitoring System

The HT-MS100 Micro Environmental Air Quality Monitoring System is a pump-suction type miniature air monitoring station featuring a modular integrated design. It can continuously and automatically collect atmospheric pollutants and meteorological parameters around the clock, suitable for grid-based air quality supervision, industrial sites, construction sites, and industrial parks, enabling real-time online monitoring of regional air quality.

Key Specifications

Type: Outdoor Air Quality Monitor
TVOC Range: 0–9.999 mg/m³
Humidity Range: 0–93% RH
Temperature Accuracy: ±0.5°C
Display Type: Touchscreen Display
Model: HT-MS100
Origin: China
Application Scenarios: Pollution Source Tracking, Air Environment Monitoring
HCHO Range: 0–10.0 ppm
Temperature Range: -20°C to 60°C
Reading Resolution: 0.01
IP Rating: IP55
Connector Type: USB

Technical Parameters

Parameter Value
Model HT-MS100
Power supply AC220V
Working temperature -20~50°C
Working humidity 0-93%RH
Equipment power <100W
Equipment size(mm) 738*810*200

Detailed Sensor Specifications

Five gases:

Gas CO NO2 O3 S02 TVOC
Range 0~20ppm
0~lppm
0~20ppm

Accuracy: 0–10 ppm: ≤+2 ppm; 0–100 ppb: ≤±20 ppb; 0–300 ppb: ≤±50 ppb 10ppm-20ppm:≤±20%FS 100ppb-1ppm :≤+20%FS 300ppb-20ppm:≤±20%FS

Three types of dust:

Dust Type PM2.5 PM10 TSP
Range 0~2000g/m3 0~2000g/m3 0~50000g/m3

Accuracy: ≤±25 μg/m³ when ≤100 μg/m³; ≤±25% when >100 μg/m³

Product Features

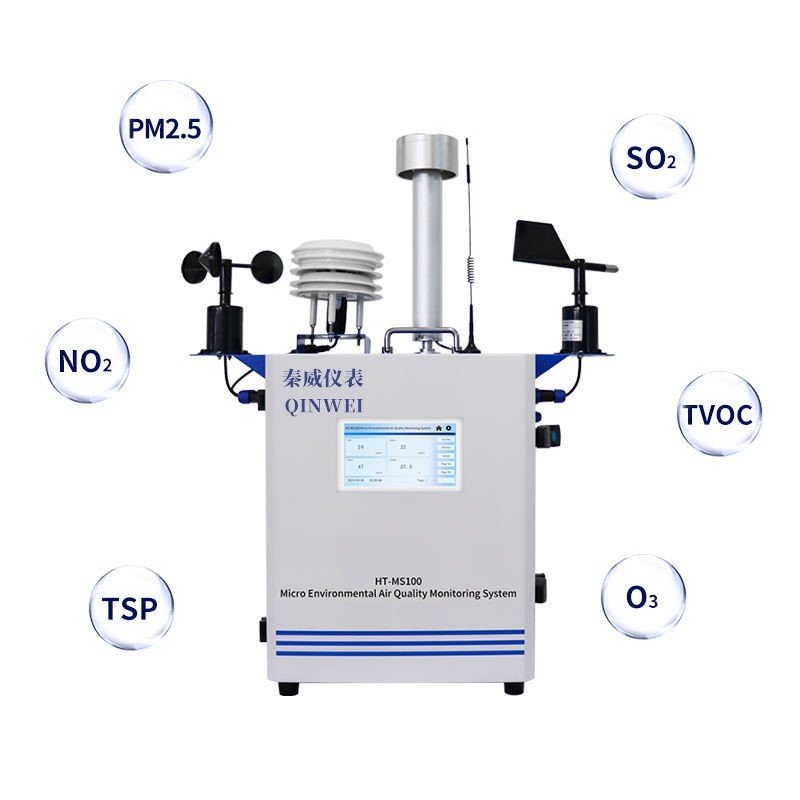

  • Miniature Environmental Air Quality Monitoring System: Monitors multiple pollutants including PM2.5, PM10, SO2, NO2, CO2, VOCs, and CO.
  • Real-time Data Display: Instantly calculates air quality index and provides visual feedback.
  • Alert Function: Notifies users to take timely action when air quality exceeds safe thresholds.
  • Networked Continuous Monitoring: Ensures uninterrupted data collection and analysis for comprehensive insights.

Typical Application Scenarios

  • Unorganized emission monitoring in industrial parks
  • Dust monitoring at construction sites
  • Urban grid-based air quality monitoring
  • Chemical industrial zones
  • Road traffic monitoring
  • Environmental monitoring in parks, schools, and residential areas
  • VOC monitoring in concentrated dining districts
  • Mining area environmental monitoring, etc.
