Online Monitoring Station Environmental Dust Beta Rays Detection
Online Monitoring Station Environmental Dust Beta Rays Detection
Online Monitoring Station Environmental Dust Beta Rays Detection
Online Monitoring Station Environmental Dust Beta Rays Detection
Online Monitoring Station Environmental Dust Beta Rays Detection
Online Monitoring Station Environmental Dust Beta Rays Detection
Online Monitoring Station Environmental Dust Beta Rays Detection
Online Monitoring Station Environmental Dust Beta Rays Detection
Specifications
Sampling method :
Natural Diffusion
Warranty :
12 months
Price :
Negotiable
Color :
Orange+silver
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Material :
Die-casting aluminum+stainlesssteel
Model Number :
YA-C10OFT
Degree of Protection :
IP67
Delivery Time :
5-8 work days
Alarm mode :
Alarm sounder
Packaging Details :
Carton or wooden box
Customization Services :
OEM, ODM, OBM, software reengineering
Place of Origin :
China
Power :
Electric Power Weight 4KG
MOQ :
1Set
Target Gas :
Carbon dioxide, carbon monoxide, flammable gas, hydrogen sulfide (toxic gas), oxygen
Brand Name :
QINWEIYB
Description

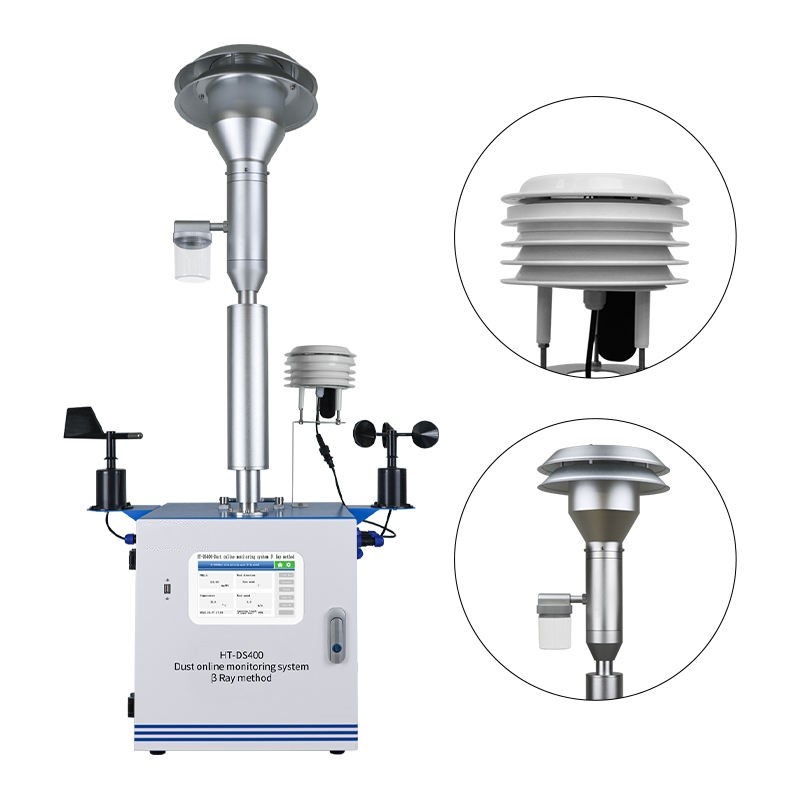

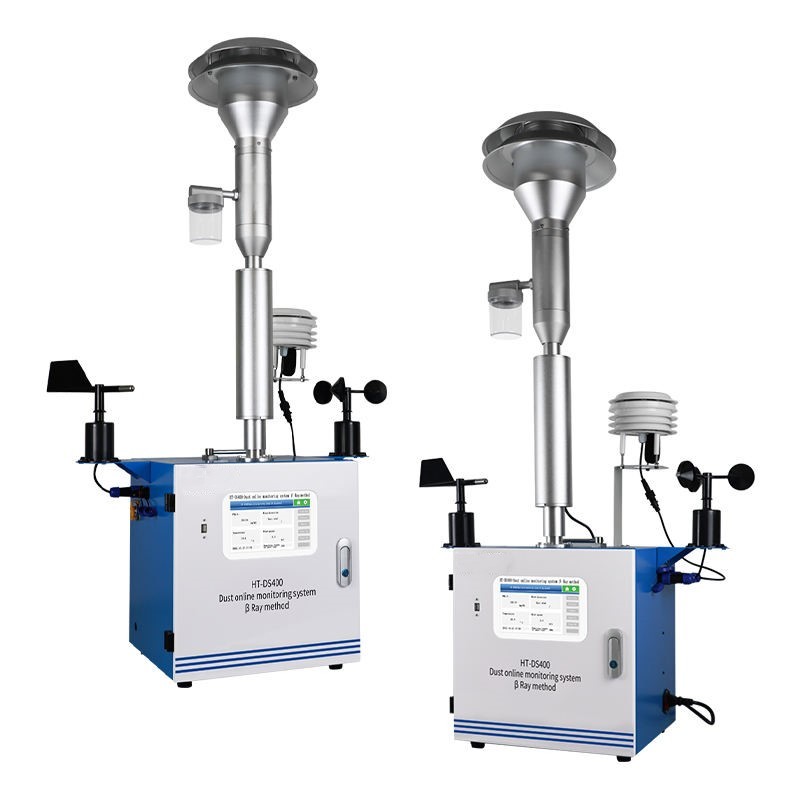

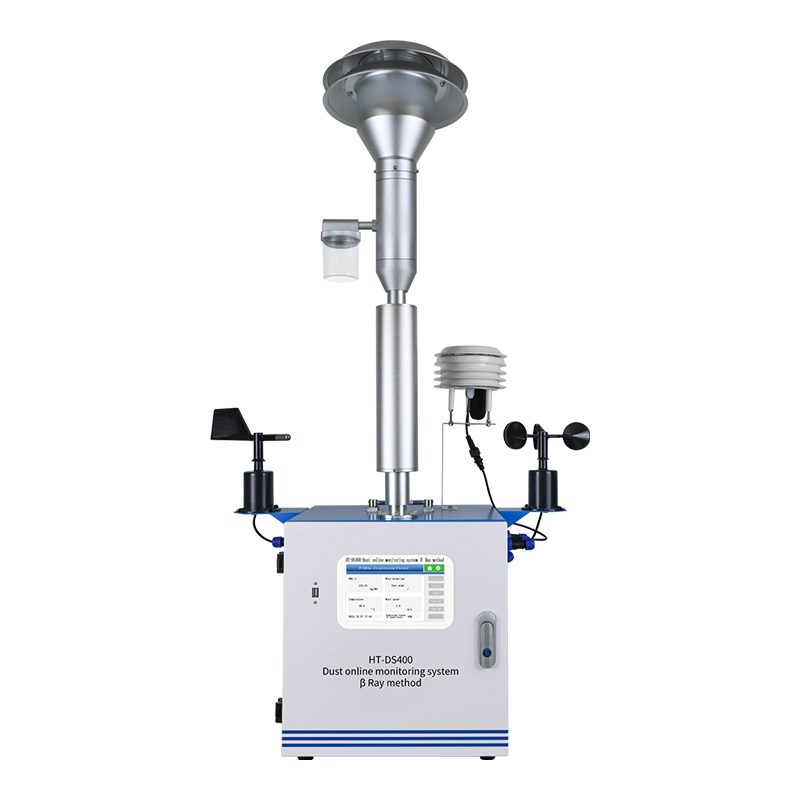

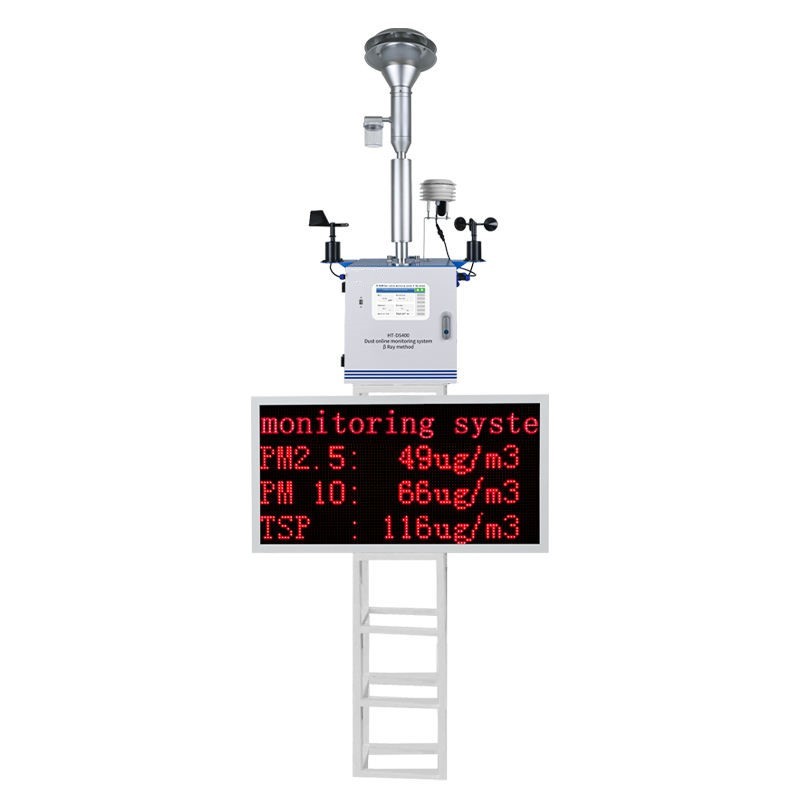

The HT-DS400 is an online particulate matter monitoring device based on the β-ray absorption method, a high-precision environmental monitoring instrument that differs from conventional light scattering devices. It employs the β-ray gravimetric principle recognized by national standards to directly measure particulate mass concentration, offering high data accuracy and serving as a reliable reference for environmental supervision. The unit features an integrated vertical pole installation design, incorporating a particulate sampling module, meteorological sensors, and a touch-screen display host. It is suitable for applications requiring precise dust monitoring, such as construction sites, industrial parks, and urban grid-based air quality management.

Product Parameters
Parameter Value
Product Type β Dust Detector
Voltage 220 V
Warranty 1 Year
Power <150 W place of origin
Product Name Online Monitoring System (Beta Ray)
Error Value MPE: +10%
Inlet Pipe Heating Dynamic heating of inlet air pipe
Calibration Method Standard film calibration
Fault Alarm Real-time fault alarm display
Accuracy Grade High precision
Protection Rating IP55
Customization Services OEM, ODM, OBM, software reengineering
Accuracy Resolution: 0.1 μg/m³
Measurement Range (0–10,000) μg/m³
Resolution Ratio 0.1 microgram per cubic meter
Remote Data Inquiry Equipped with DTU module, supports remote data transmission
Data Storage Capacity Up to 300,000 records
USB Interface Supports data export via USB flash drive
Typical Application Scenarios
  • Online monitoring of construction site dust
  • Mining and sand & gravel yards
  • Unorganized emission monitoring in industrial parks
  • Urban atmospheric grid-based precision monitoring
  • Road dust monitoring
  • Port storage areas
  • Boundary monitoring of industrial zones
  • Key monitoring points for environmental inspections
