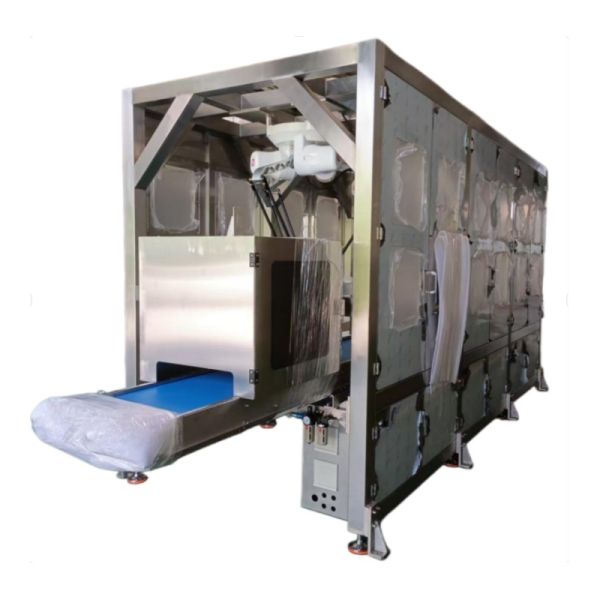

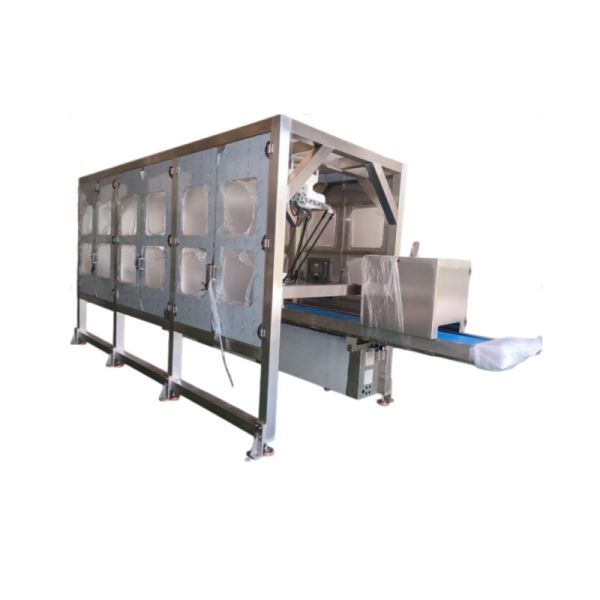

Budget-friendly fast dynamic response delta industrial robot for edible oil handling

Specifications

Place of Origin :

Canton

Working weight :

55KG

Model Number :

QS-D-A-600

Total power/Voltage :

1.2KW(3 axes),1.25KW(4axes)/220V single phase

Price :

Negotiable

Packaging Details :

Wooden pallete

Number of axis :

3/4

Customisation :

surported

Supply Ability :

2400 PCS each year

Payback period :

Half a year

Payment Terms :

L/C,T/T

Positional repeatability :

±0.1mm

Delivery Time :

60 days

Half a year :

3-6 workers

Brand Name :

Qiaoshou

Certification :

Rated load :

2KG

MOQ :

Max speed :

180PP/min

Description

Budget-friendly fast dynamic response QS-D-B-600 delta pick and place robot for edible oil

I.Product Overview

QS-D-B-600 Delta Robot - High Speed, High Precision, Fast Dynamic Response, High Stiffness

Classic high-speed delta robot configuration featuring translational movement along the XYZ axes in three-dimensional space. This robot is ideal for high-speed production operations in industries such as food and medicines, primarily used for rapid handling and sorting of light, small, scattered materials.

Budget-friendly fast dynamic response delta industrial robot for edible oil handling

Top viewRobotic arm details

Control cabinet

Mounting base

Up to 180 cycles/min | ±0.1mm Repeat Accuracy | 24h Continuous Operation Budget-friendly fast dynamic response delta industrial robot for edible oil handling

II.Technical Specifications

Parameter	Value
Working Stroke Range - L	856
Working Stroke Range - M	138
Working Stroke Range - N	112
Working Stroke Range - A	764
Working Stroke Range - B	598
Working Stroke Range - C	250
Working Stroke Range - D	175
Positional Repeatability	±0.1mm
Driving Motor Type	Absolute Value Servo Motor
Total Power/Voltage	2.25KW (3 axes), 2.3KW (4 axes) / 220V Single Phase
Working Weight of Whole Machine	55KG
IP Grade	IP54

Cycle Time vs Load Capacity

Load (KG)	1	2	3	4
Cycle Time (25/300/25)	0.35	0.42	0.52	0.6

III.Key Features

Standard cycle time of 0.6 seconds, meeting demands for high speed and most economical requirements
Easy to fulfill high-strength & high-frequency movement requirements
Highly suitable for fast assembly, handling and sorting of light, small, scattered materials
Compact structure, high rigidity and high load capacity
Perfectly symmetric parallel mechanism with good isotropy and small workspace

III.Core strengths and tech highlights

High-speed movement: High cycle efficiency, fits assembly line pace
Precision positioning: Accurately grabs tiny items, suitable for food/pharmaceutical/electronics industries
Lightweight design: Compact body, easy to install, takes up little space
Food-grade setup: Stainless steel material, easy to clean, meets hygiene standards
Stable and durable: Original motors/gears, can run continuously for long periods without failure
Easy setup: Comes with a control system, quick to learn, low maintenance cost
Payback period:Half a year
On-site debugging:The standard setup can reach full production in as fast as 3 days, and complex production lines can complete integration within 2 weeks.
Alternative headcount:3-6 workers

IV.Close-up of details & Structure Parsing

Close-up of core parts

Budget-friendly fast dynamic response delta industrial robot for edible oil handling

Robot arm joints Servo motors

Budget-friendly fast dynamic response delta industrial robot for edible oil handling

Mounting positions Control cabinet panel

Budget-friendly fast dynamic response delta industrial robot for edible oil handling

Control cabinet panel

Structual representation

Budget-friendly fast dynamic response delta industrial robot for edible oil handling

Line drawing/3D sketch showing the principles of Load-bearing motion structure

V.Running presentation video

Real Working Performance | On-site Operation Display

VI.Applied acenery &applied indutry

1.Applied indutry

Food processing Pharmaceutical packaging

Budget-friendly fast dynamic response delta industrial robot for edible oil handling

Daily chemical product 3C Electronics

Budget-friendly fast dynamic response delta industrial robot for edible oil handling

Nutrition Dietry Supplement

Budget-friendly fast dynamic response delta industrial robot for edible oil handling

Logistics sorting Toys

Budget-friendly fast dynamic response delta industrial robot for edible oil handling

Cosmetics Hardware

Budget-friendly fast dynamic response delta industrial robot for edible oil handling

Tea beverage

2. Production line real scene (machines + conveyor belt + complete material setup)

Budget-friendly fast dynamic response delta industrial robot for edible oil handling

Food processing

The function of a Delta Robot in the industry:The spider manupulator mainly handles tasks like picking, placing, and packing during the food packaging process.

Budget-friendly fast dynamic response delta industrial robot for edible oil handling

Pharmaceutical packaging

The role of spider robots in this industry:The spider manupulator mainly handles tasks like picking, placing, and packing during the Pharmaceutical packaging process.

Budget-friendly fast dynamic response delta industrial robot for edible oil handling

Daily chemical product

The role of spider robots in this industry:Smart picking and handling, automatic bottle sorting, automatic packing

Budget-friendly fast dynamic response delta industrial robot for edible oil handling

3C Electronics

The role of spider robots in this industry:The spider manupulator mainly handles tasks like picking, placing, and packing during the 3C Electronics packaging process.

Suitable for working conditions: automatic palletizing and depalletizing, high-speed picking and sorting, downstream packaging automation, precision assembly Budget-friendly fast dynamic response delta industrial robot for edible oil handling

Logistic sorting

The role of spider robots in this industry:Visual recognition and positioning, automatic picking, placing, and delivery

Suitable working conditions: high-speed sorting needs, high-precision sorting needs, space-limited environments, 24-hour intensive operations, sorting of multiple types of goods, multi-arm collaboration and customization requirements

4.View Complete Industry Solutions

VII.Supporting components and full set of solutions

· Parallel robots are rarely used alone; they are shown with supporting products to demonstrate one-stop service:

· - Standard: Dedicated control cabinet, control system, data cables, installation brackets

· - Optional: Vision positioning system, conveyor belt, loading and unloading mechanisms, safety fences

· - Layout: Listed with images and text, labeled 'Standard'/'Optional', with brief matching suggestions

· -Full set of solutions:Bagging machine, material feeding line, case opener, automatic packing machine, weighing mechanism, rejection mechanism, flap folding and sealing machine, automatic strapping machine, palletizer.

VIII.True sample case & Implemented project

Japan Food Factory|Packaging Automation overall Solution

Jordan Chemical Industry | Packaging Automation overall Solution

More Success Cases https://www.ecweb.com/website/file/case

IX. Patent,Certificate & after-sales service

Budget-friendly fast dynamic response delta industrial robot for edible oil handling

An automatic carton erector A sorting robot A flexile gripper

Budget-friendly fast dynamic response delta industrial robot for edible oil handling

An automatic forklift An automatic package A buffer feeding for mechanism machine feeding device a noodle fork sorting

machine

Budget-friendly fast dynamic response delta industrial robot for edible oil handling

Drag-to-teach six-axis robot

Budget-friendly fast dynamic response delta industrial robot for edible oil handling

After-sales service

Overseas Technical Support
Long-term Spare Parts Supply
12 Months Warranty
On-site Installation & Training (Optional)

X.FAQ

Q1: How fast do your Delta robot run?

Generally speaking, the speed is 80-180PP/min, while it can be customized as you require.

Q2: How strong is your company?

We have our own patents and R&D team. We provide customers with well-prepared pre-sales, in-site sale and after-sales service. Nisse bought our solution several years ago, but we still serve them fast. We have more than 70 employees. Our founder has been in this field for fifteen years. Our design director graduated from The Open University of China with a major in machinery engineering. We have a CE certificate. Our famous customers include Nissin, Adolf, etc.

Q3: Are your products complete?

Certainly! We can even provide packaging auto overall solutions.

Q4:What are the advantages of our products compared to other brands?

Complete packaging solution (spider-handle + unpacking + sealing + palletizing)

Q5.What is the maximum load capacity of the parallel robot?

5KG.

Q6:What is the robot's working range and accuracy?

1600, ±0.1mm.
