Cost-effective 30kg Payload Collaborative Palletizer with 8-10 times/Min Speed and 1600mm Stacking Height
Cost-effective 30kg Payload Collaborative Palletizer with 8-10 times/Min Speed and 1600mm Stacking Height
Cost-effective 30kg Payload Collaborative Palletizer with 8-10 times/Min Speed and 1600mm Stacking Height
Cost-effective 30kg Payload Collaborative Palletizer with 8-10 times/Min Speed and 1600mm Stacking Height
Cost-effective 30kg Payload Collaborative Palletizer with 8-10 times/Min Speed and 1600mm Stacking Height
Cost-effective 30kg Payload Collaborative Palletizer with 8-10 times/Min Speed and 1600mm Stacking Height
Cost-effective 30kg Payload Collaborative Palletizer with 8-10 times/Min Speed and 1600mm Stacking Height
Cost-effective 30kg Payload Collaborative Palletizer with 8-10 times/Min Speed and 1600mm Stacking Height
Specifications
Place of Origin :
Canton
Total power :
3.6KW
Certification :
CE
External dimensions :
1810mm*1480mm*1910mm
Price :
Negotiable
Packaging Details :
Wooden pallete
Palletizing speed :
8-10 times/Min
Supply Ability :
2400 PCS each year
Payment Terms :
L/C,T/T
Stacking height :
1600mm
Delivery Time :
30 days
Brand Name :
Qiaoshou
Pallet dimensions :
L1200mm-W1200mm-H150mm
MOQ :
1
Load capacity :
30 kilograms
Description

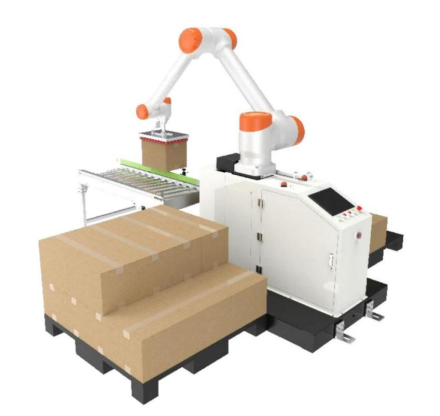

QS-C5-F30 Collaborative Palletizer

30kg Payload Mobile Box Stacking Robot

I.Operating Principle & Specifications

  • Device Model: QS-C5-F30
  • Design palletizing speed: 8-10 times/Min (Depending on the product)
  • Pallet dimensions: L1200mm * W1200mm * H150mm
  • Tray placement form: Manual, Left-Right
  • Robot load-bearing capacity: Maximum 30 kilograms with suction device included
  • Stacking height: Maximum stacking height 1600mm

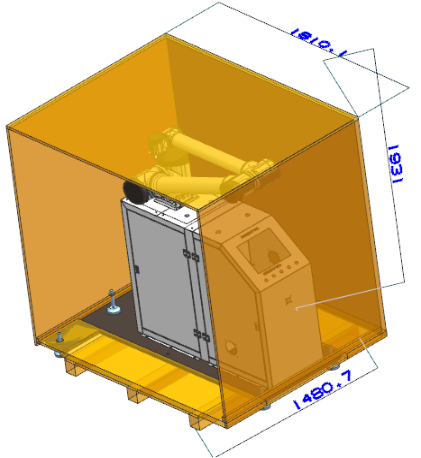

  • External dimensions: Approximately 1810mm * 1480mm * 1910mm (including pallet position)
  • Wooden box dimensions: 1810mm * 1480mm * 1910mm
  • Gross weight: 500KG
  • Total power: 3.6KW
  • Electricity supply: 220V ±10%, 50Hz ±5%
  • Control voltage: DC24V
  • Air source: 0.5～0.7Mpa
  • Air consumption: 200L/Min (Purchaser shall prepare their own gas source)
  • Weight: Approximately 600kg
  • Noise: <80 decibel
  • Host color: Grayish black
  • Robot arm extension: 1800mm
Cost-effective 30kg Payload Collaborative Palletizer with 8-10 times/Min Speed and 1600mm Stacking Height
II.Technical Performance Characteristics
  • Easy to operate, supporting multiple stacking formulas, foolproof operation, easy to learn and understand
  • Low energy consumption and low operating costs
  • Small footprint, flexible and movable
  • Safe and convenient, no need for guardrails
III.Palletizing Workstation Advantages
  • Self-developed algorithm finely regulates and ensures stability of palletizing
  • Tested 30,000 times without any stacking errors
  • Fast palletizing speed: 10-12 boxes/minute, 20% faster than similar products on the market
Cost-effective 30kg Payload Collaborative Palletizer with 8-10 times/Min Speed and 1600mm Stacking Height

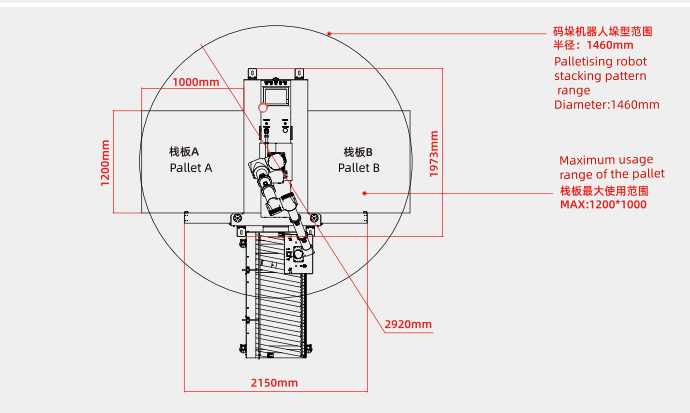

IV.Technical Parameters
Cost-effective 30kg Payload Collaborative Palletizer with 8-10 times/Min Speed and 1600mm Stacking Height

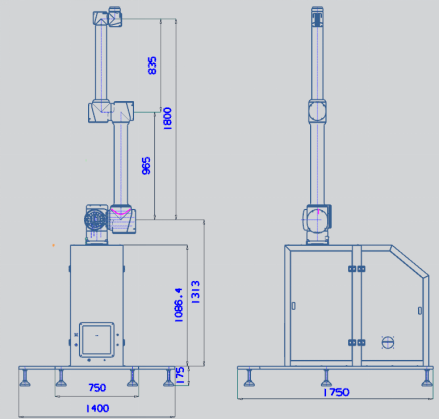

V.Mechanical Assembly Drawing
Cost-effective 30kg Payload Collaborative Palletizer with 8-10 times/Min Speed and 1600mm Stacking Height Cost-effective 30kg Payload Collaborative Palletizer with 8-10 times/Min Speed and 1600mm Stacking Height

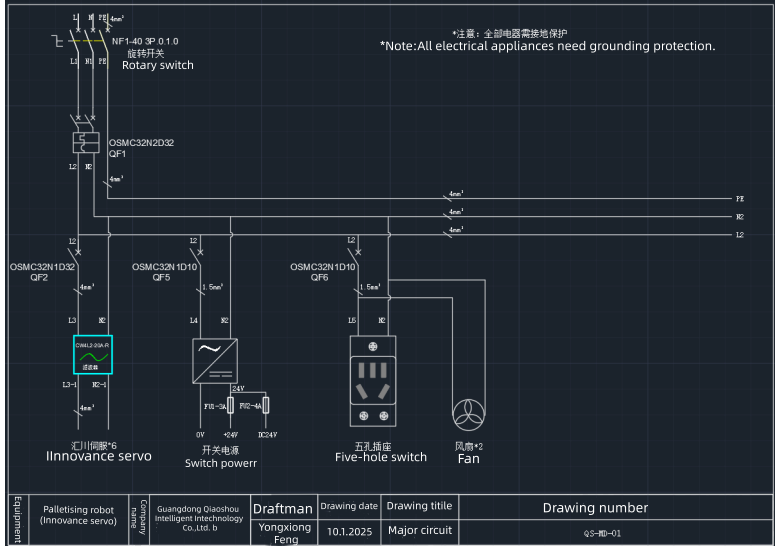

IV.Electrical Diagram
Cost-effective 30kg Payload Collaborative Palletizer with 8-10 times/Min Speed and 1600mm Stacking Height
V.General Standard Parts List
Cost-effective 30kg Payload Collaborative Palletizer with 8-10 times/Min Speed and 1600mm Stacking Height

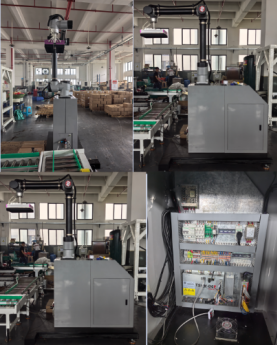

VI.On-Site Prototype Photos
Cost-effective 30kg Payload Collaborative Palletizer with 8-10 times/Min Speed and 1600mm Stacking Height
VII.Our other more cost-effective service options
VIII.Patent

Cost-effective 30kg Payload Collaborative Palletizer with 8-10 times/Min Speed and 1600mm Stacking HeightCost-effective 30kg Payload Collaborative Palletizer with 8-10 times/Min Speed and 1600mm Stacking HeightCost-effective 30kg Payload Collaborative Palletizer with 8-10 times/Min Speed and 1600mm Stacking Height

An automatic carton erector A sorting robot A flexible gripper

Cost-effective 30kg Payload Collaborative Palletizer with 8-10 times/Min Speed and 1600mm Stacking HeightCost-effective 30kg Payload Collaborative Palletizer with 8-10 times/Min Speed and 1600mm Stacking HeightCost-effective 30kg Payload Collaborative Palletizer with 8-10 times/Min Speed and 1600mm Stacking Height

An automatic forklift An automatic package A buffer feeding mechanism

machine feeding device for a noodle fork sorting

machine

IX.Why choose us
  1. More than 15 years' industry experience
  2. Specilised team
  3. Free solutions and on-site visits
  4. OEM & ODM
  5. Standard German standard industrial plants are more worry-free

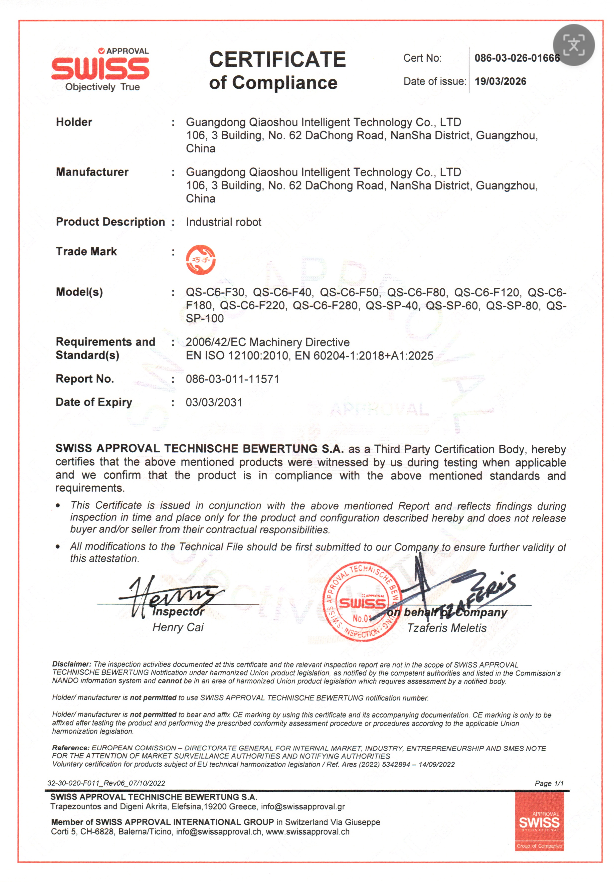

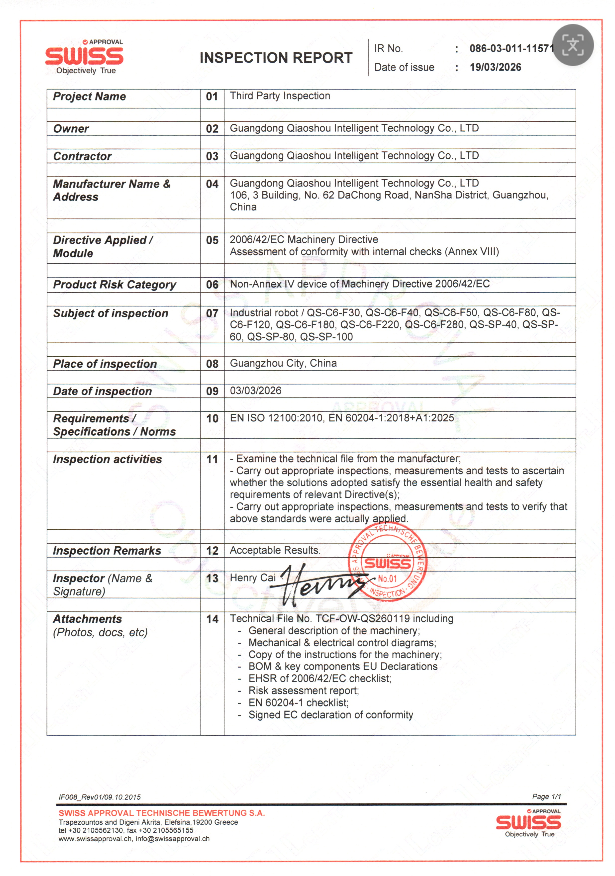

  6. CE

Cost-effective 30kg Payload Collaborative Palletizer with 8-10 times/Min Speed and 1600mm Stacking HeightCost-effective 30kg Payload Collaborative Palletizer with 8-10 times/Min Speed and 1600mm Stacking Height

6.After-sales service
  • Overseas Technical Support
  • Long-term Spare Parts Supply
  • 12 Months Warranty
  • On-site Installation & Training (Optional)
  • Supports return policy

X.FAQs

  • Q1:How fast do your automatic vertical carton erector machines run?
  • Genaral speaking,10-12 boxes/minute, 20% faster than similar products on the market,while it can be customised as you require.
  • Q2:How strong is your company?
  • A:We have our own patents and R&D team.And we provide customers with well-prepared pre-sales, in-site sale and after-sales service.Nisse bought our solution several years ago, but we still serve them fast.We have more than 70 employees.Our founder has been in this field for fifteen years.And our design director graduated from The Open University of China.And his major is machinery engineering.We have a CE certificete.Our famous customers are Nissin,Adolf,Daliyuan Food Group,Foshan Haitian Flavouring and Food Co.,Ltd.,etc..
  • Q3:Are your products complete?
  • Certainly!We can even provide packaging auto overall solutions.
  • Q4:How should i choose a model?
  • Tell me the dimensions of your carton,please.Such as the length, the width and the height?Also, I want to know the weight of each box and how high they're palletised.
