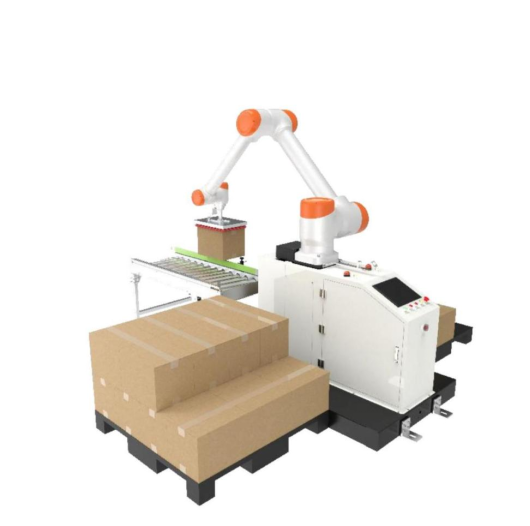

30kg Payload Mobile Box Stacking Robot

I.Operating Principle & Specifications

• Device Model: QS-C5-F30
• Design palletizing speed: 8-10 times/Min (Depending on the product)
• Pallet dimensions: L1200mm * W1200mm * H150mm
• Tray placement form: Manual, Left-Right
• Robot load-bearing capacity: Maximum 30 kilograms with suction device included
• Stacking height: Maximum stacking height 1600mm
• External dimensions: Approximately 1810mm * 1480mm * 1910mm (including pallet position)
• Wooden box dimensions: 1810mm * 1480mm * 1910mm
• Gross weight: 500KG
• Total power: 3.6KW
• Electricity supply: 220V ±10%, 50Hz ±5%
• Control voltage: DC24V
• Air source: 0.5～0.7Mpa
• Air consumption: 200L/Min (Purchaser shall prepare their own gas source)
• Weight: Approximately 600kg
• Noise: <80 decibel
• Host color: Grayish black
• Robot arm extension: 1800mm

• Easy to operate, supporting multiple stacking formulas, foolproof operation, easy to learn and understand
• Low energy consumption and low operating costs
• Small footprint, flexible and movable
• Safe and convenient, no need for guardrails

• Self-developed algorithm finely regulates and ensures stability of palletizing
• Tested 30,000 times without any stacking errors
• Fast palletizing speed: 10-12 boxes/minute, 20% faster than similar products on the market

1. More than 15 years' industry experience
2. Specilised team
3. Free solutions and on-site visits
4. OEM & ODM
5. Standard German standard industrial plants are more worry-free
6. CE

• Overseas Technical Support
• Long-term Spare Parts Supply
• On-site Installation & Training (Optional)
• 12 Months Warranty
• Supports return policy

X.FAQs

• 1. Do we need safety fence for cobot palletizer?
  Answer:Under ISO‑TS15066 standard, fence‑free is available after on‑site risk assessment.
  2. What voltage fits Southeast Asia factory?

  Answer:380V/415V

  3. Can regular factory operator program this cobot?

  Answer:

  4. What after‑sales support you offer for Vietnam / Indonesia / Thailand?

  Answer:On-site Installation & Training (Optional)

  5. What is typical payback period for cobot palletizing workstation?

  Answer:




  6. Can it handle multi‑SKU box sizes?
