Specifications
Supply Ability :
2400 PCS each year
Robot entity weight :
70 kg
Price :
Negotiable
Maxinum load :
3 kg
Maximum exercise frequency :
150pp/min
Applied area :
Foods, medicines, nutrition, dietry supplement,tea, cigarettes,hardwares,daily chemicals,etc..
Warranty :
1 year
Rotation range :
±360º
Certificate :
CE
MOQ :
1
Number of axis :
3/4
Model Number :
QS-D-C-1000
Place of Origin :
Canton
Brand Name :
Qiaoshou
Payment Terms :
L/C,T/T
Packaging Details :
Wooden pallet
Certification :
CE
Custommisation :
Supported
Delivery Time :
60 days
Workspace width :
1000mm
Description
QS-D-L-1000 Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts
High speedHigh precisionFast Dynamic Response
High Stiffness


Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts

Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts
Top view Robotic arm details
Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts
Control cabinetBoost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts
Mounting base
I.Product Introduction

The classic high-speed parallel robot configuration features translational movement along the XYZ axes in three-dimensional space and rotational movement around the Z axis. When paired with a high-precision machine vision system, it is suitable for high-speed production operations in industries such as food and medicines, primarily used for the assembly, handling, and sorting of light, small, and scattered materials.

II.Product Features
  • The standard cycle time is less than 0.6s, meeting the pursuit of maximum speed and the most economical demand
  • Easily cope with high-intensity and high-frequency repetitive exercise demands
  • Highly suitable for high-speed production operations in industries such as food and medicines, primarily used for the assembly, handling, and sorting of small materials

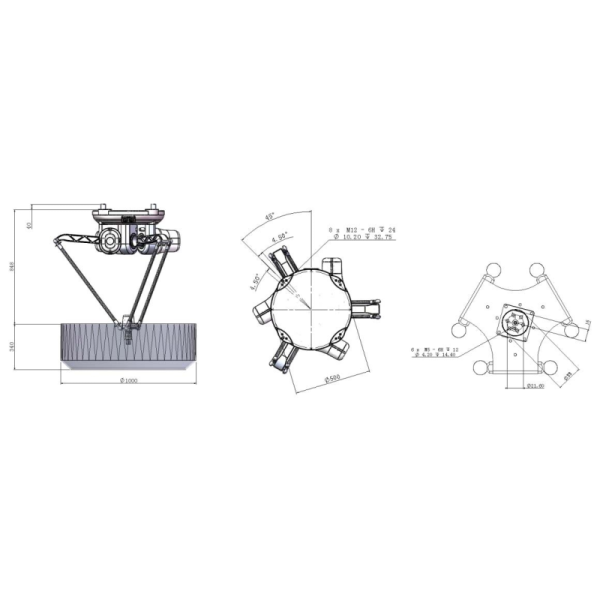

III.Product Drawing
Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts
IV.Product Parameters
Type Axle Count Maximum Load Robot Entity Repeatable Positioning Accuracy Maximum Exercise Frequency Rotation Range Active Arm Angle Range Rated Power Protection Level
QS-D-L-1000 3+1 3kg 70KG weight ±0.05MM Position
±0.1° Rotate		 150pp/min ±360° Put up: 37°
Put down: 65°		 2.35kw IP55

Workspace width: 1000MM
III.Core strengths and tech highlights
  • High-speed movement: High cycle efficiency, fits assembly line pace
  • Precision positioning: Accurately grabs tiny items, suitable for food/pharmaceutical/electronics industries
  • Lightweight design: Compact body, easy to install, takes up little space
  • Food-grade setup: Stainless steel material, easy to clean, meets hygiene standards
  • Stable and durable: Original motors/gears, can run continuously for long periods without failure
  • Easy setup: Comes with a control system, quick to learn, low maintenance cost
  • Payback period:Half a year
  • On-site debugging:The standard setup can reach full production in as fast as 3 days, and complex production lines can complete integration within 2 weeks.
  • Alternative headcount:3-6 workers
IV.Close-up of details & Structure Parsing
Close-up of core parts

Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproductsBoost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts

Robot arm joints Servo motors

Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts

Mounting positions Control cabinet panel

Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts

Control cabinet panel

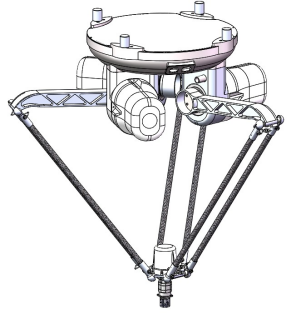

Structual representation

Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts

Line drawing/3D sketch showing the principles of motion Load-bearing structure

V.Running presentation video













Real Working Performance | On-site Operation Display

VI.Applied acenery &applied indutry

1.Applied indutry


Food processing Pharmaceutical packaging

Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts

Daily chemical product 3C Electronics

Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts

Nutrition Dietry Supplement


Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts

Logistics sorting Toys


Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts

Cosmetics Hardware

Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts

Tea beverage

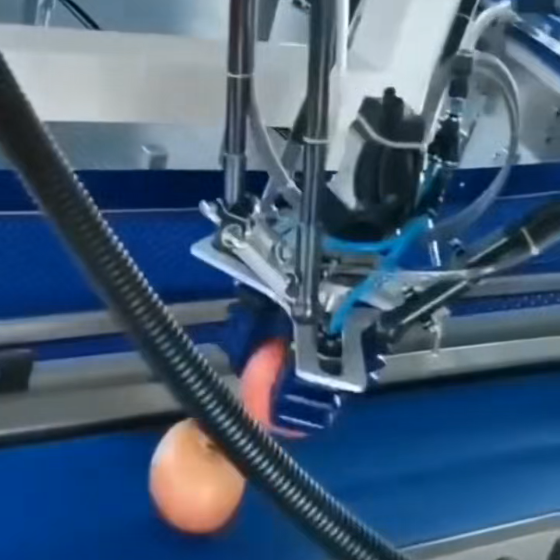

2. Production line real scene (machines + conveyor belt + complete material setup)

Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts

Food processing

The function of a Delta Robot in the industry:The spider manupulator mainly handles tasks like picking, placing, and packing during the food packaging process.

Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts

Pharmaceutical packaging

The role of spider robots in this industry:The spider manupulator mainly handles tasks like picking, placing, and packing during the Pharmaceutical packaging process.

Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts

Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts

Daily chemical product

The role of spider robots in this industry:Smart picking and handling, automatic bottle sorting, automatic packing


Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts

3C Electronics

The role of spider robots in this industry:The spider manupulator mainly handles tasks like picking, placing, and packing during the 3C Electronics packaging process.

Suitable for working conditions: automatic palletizing and depalletizing, high-speed picking and sorting, downstream packaging automation, precision assemblyBoost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts

Logistic sorting

The role of spider robots in this industry:Visual recognition and positioning, automatic picking, placing, and delivery

Suitable working conditions: high-speed sorting needs, high-precision sorting needs, space-limited environments, 24-hour intensive operations, sorting of multiple types of goods, multi-arm collaboration and customization requirements

4.View Complete Industry Solutions

1)Overall Plan Positioning
Robot Type: Parallel/Delta Robots (mainly 2–4 DOF)
Core Advantages: high speed, high repeatability, low inertia, small footprint
Applicable Processes: Pick & Place, sorting, packing, assembly

2) Typical Industry Applications
Food Industry: sorting and packing candies, biscuits, frozen foods
Pharmaceutical Industry: medicine sorting, blister packaging, reagent dispensing
3C Electronics: part assembly, loading/unloading for inspection
Logistics & E-commerce: express package sorting
Daily Chemicals/Hardware: small item packing, tray arrangement

3) Core Components of the Complete Solution
A. Robot Body
Load: 0.5kg–5kg
Working Radius: 350–1600mm
Cycle: 60–180 times/min
Protection Level: IP65 (food-grade stainless steel optional)

B. Vision System (Machine Vision)
2D/3D Cameras
Object recognition, positioning, defect detection
Real-time communication with robot

C. Conveyor and Feeding System
Belt lines, vibratory bowls, turntables
Dynamic tracking conveyors (encoder synchronized)

D. End Effectors
Vacuum suction cups
Pneumatic grippers
Flexible grippers

E. Control System
Motion controller
Robot-specific control system
MES integration for production line

F. Safety System
Light curtains, safety doors
Emergency stop, area protection

G. Software and Integration Capabilities
Teach programming / graphical programming
Production line data traceability
Remote operation and maintenance, fault diagnosis
Integration with WMS/ERP

H. Project Implementation Process (Delivery Loop)
Requirement analysis and cycle calculation
Solution design and simulation
Equipment manufacturing and integration
On-site installation and commissioning
Acceptance and training
After-sales support and optimization

I. Value Delivered by the Solution
Labor replacement: 30%–70%
Cycle time improvement: 2–5x
Yield improvement, hygiene compliance
Flexible production, quick line change

VII.Supporting components and full set of solutions
  • Parallel robots are rarely used alone; they are shown with supporting products to demonstrate one-stop service:
  • - Standard: Dedicated control cabinet, control system, data cables, installation brackets
  • - Optional: Vision positioning system, conveyor belt, loading and unloading mechanisms, safety fences
  • - Layout: Listed with images and text, labeled 'Standard'/'Optional', with brief matching suggestions
  • -Full set of solutions:Bagging machine, material feeding line, case opener, automatic packing machine, weighing mechanism, rejection mechanism, flap folding and sealing machine, automatic strapping machine, palletizer.
VIII.True sample case & Implemented project

Japan Food Factory|Packaging Automation overall Solution

Jordan Chemical Industry | Packaging Automation overall Solution

More Success Cases https://www.ecweb.com/website/file/case

IX. Patent,Certificate & after-sales service

Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproductsBoost Packaging Line Speed by 50% with delta pick and place for agricultural byproductsBoost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts

An automatic carton A sorting robot A flexile gripper

erector

Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproductsBoost Packaging Line Speed by 50% with delta pick and place for agricultural byproductsBoost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts

An automatic forklift An automatic package A buffer feeding mechanism machine feeding device for a noodle fork sorting

machine

Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts

Drag-to-teach six-axis robot


CE

Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproductsBoost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts

After-sales service
  • Overseas Technical Support
  • Long-term Spare Parts Supply
  • 12 Months Warranty
  • On-site Installation & Training (Optional)


X.FAQ

Q1: How fast do your Delta robot run?
Generally speaking, the speed is 80-180PP/min, while it can be customized as you require.
Q2: How strong is your company?
We have our own patents and R&D team. We provide customers with well-prepared pre-sales, in-site sale and after-sales service. Nisse bought our solution several years ago, but we still serve them fast. We have more than 70 employees. Our founder has been in this field for fifteen years. Our design director graduated from The Open University of China with a major in machinery engineering. We have a CE certificate. Our famous customers include Nissin, Adolf, etc.
Q3: Are your products complete?
Certainly! We can even provide packaging auto overall solutions.
Q4:What are the advantages of our products compared to other brands?
Complete packaging solution (spider-handle + unpacking + sealing + palletizing)
Q5.What is the maximum load capacity of the parallel robot?
5KG.
Q6:What is the robot's working range and accuracy?
1600, ±0.1mm.


X.Bottom Enquiry Area

1. Name / Email / Country / Your Requirement

2. Inquiry type(Price Inquiry / Technical Consultation / Customization / After-sales)

3. Instant Messaging Entry:

3. Instant Messaging Entry:WhatsApp & Skype

WhatsApp:18102562766

Send your message to this supplier
Send Now

Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts

Ask Latest Price
Watch Video
Product Detail
Supply Ability :
2400 PCS each year
Robot entity weight :
70 kg
Price :
Negotiable
Maxinum load :
3 kg
Maximum exercise frequency :
150pp/min
Applied area :
Foods, medicines, nutrition, dietry supplement,tea, cigarettes,hardwares,daily chemicals,etc..
Contact Supplier
video
Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts
Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts
Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts
Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts
Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts
Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts
Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts
Boost Packaging Line Speed by 50% with delta pick and place for agricultural byproducts

Guangdong Qiaoshou Intelligent Technology Co., Ltd.

Verified Supplier
1 Years
guangdong, guangzhou
Since 2021
Business Type :
Manufacturer, Seller, Exporter
Main Products :
Parallel Robot/Delta Robot, Palletizing Robot, Carton Erector Machine
Total Annual :
10000000-50000000
Employee Number :
70~80
Certification Level :
Verified Supplier
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Parallel Robot/Delta Robot
MachineU China Products Machinery Packaging Machine Packaging Line
Contact Supplier
Submit Requirement
