Manufacturer of high precision QS-D-C 700 delta style robot for bakery packaging

Specifications

Robot Type :

Parallel Robot

Working temperature :

-10≤t≤50℃，RH≤80%;

Control system voltage :

24V

Noise level :

≤70dB

Payment Terms :

L/C,T/T

MOQ :

Preserved humidity :

≥10%,≤70%

IP grade :

IP 51

Dynamic response :

Fast

Model Number :

QS-D-C

Place of Origin :

Canton

Applied field :

Foods, medicines,nutrition health products

Packaging Details :

Wooden pallet

Operation speed :

80~180 pp/min

Brand Name :

Qiaoshou

Model Series :

QS-D-C 700, 800, 900, 1000, 1100, 1200, 1400, 1600

Stiffness level :

High

Description

QS-D-C 700 Delta Robot

High Speed High Precision Fast Dynamic Response High Stiffness

I.INTRODUCTION

Classic high-speed delta robot configuration featuring translational movement along the XYZ axes in three-dimensional space. This robot is ideal for high-speed production operations in industries such as food and medicines, primarily used for rapid handling and sorting of light,small, scattered material,etc..

Manufacturer of high precision QS-D-C 700 delta style robot for bakery packaging

Top view Robotic arm details

Manufacturer of high precision QS-D-C 700 delta style robot for bakery packaging

Control cabinet

Manufacturer of high precision QS-D-C 700 delta style robot for bakery packaging

Mounting base

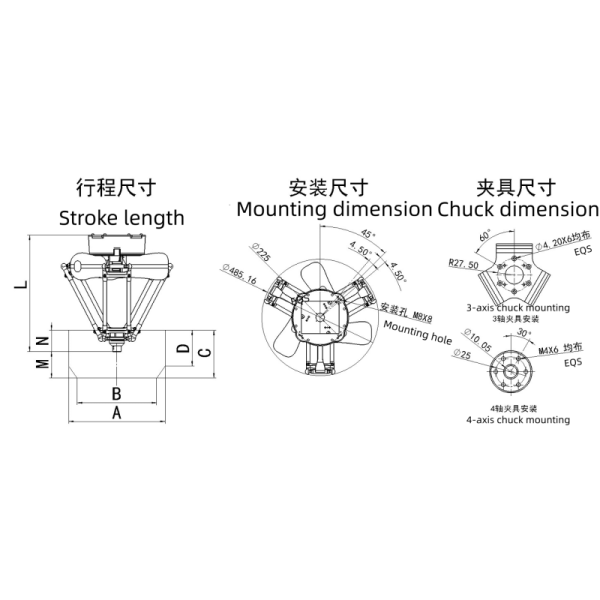

Working stroke range	Model	OY-D-S-700
	L	986
	M	151
	N	123
	A	764
	B	724
	C	274
	D	191

Positional repeatability	±0.1mm
Driving motor type	Absolute value servo motor
Different load(KG) Cycle time(25/300/25)	0.5	1	2	3.5
Different load(KG) Cycle time(25/300/25)	0.35	0.42	0.57	0.62
Total power/Voltage	2.25KW( 3 axes),2.3KW(4 axes) / 220V Single phase
Working weight of Whole machine	55KG
IP grade	IP54

II.FEATURE

Standard cycle time of 0.6 seconds, meeting demands for high speed and most ecomomical demand
Easy to fulfil high-strength & high-frequency movement requirement
Highly suitable for fast assembly, handling and sorting of light,small, scattered material,etc..
Compact structure, high rigidity and high load capacity. The perfectly symmetric parallel mechanism has good isotropy. Small workspace.

III.Core strengths and tech highlights

High-speed movement: High cycle efficiency, fits assembly line pace
Precision positioning: Accurately grabs tiny items, suitable for food/pharmaceutical/electronics industries
Lightweight design: Compact body, easy to install, takes up little space
Food-grade setup: Stainless steel material, easy to clean, meets hygiene standards
Stable and durable: Original motors/gears, can run continuously for long periods without failure
Easy setup: Comes with a control system, quick to learn, low maintenance cost
Payback period:Half a year
On-site debugging:The standard setup can reach full production in as fast as 3 days, and complex production lines can complete integration within 2 weeks.
Alternative headcount:3-6 workers

IV.Close-up of details & Structure Parsing

Close-up of core parts

Manufacturer of high precision QS-D-C 700 delta style robot for bakery packaging

Robot arm joints Servo motors

Manufacturer of high precision QS-D-C 700 delta style robot for bakery packaging

Mounting positions Control cabinet panel

Manufacturer of high precision QS-D-C 700 delta style robot for bakery packaging

Control cabinet panel

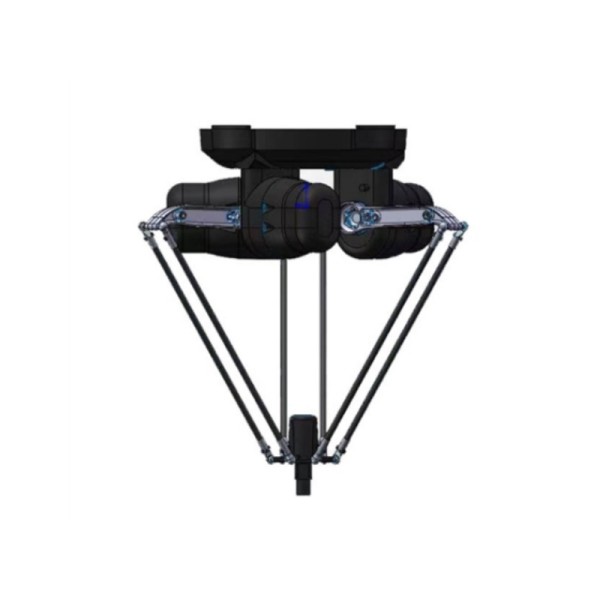

Structual representation

Manufacturer of high precision QS-D-C 700 delta style robot for bakery packaging

Line drawing/3D sketch showing the principles of motion Load-bearing structure

V.Running presentation video

Real Working Performance | On-site Operation Display

VI.Applied acenery &applied indutry

1.Applied indutry

Food processing Pharmaceutical packaging

Manufacturer of high precision QS-D-C 700 delta style robot for bakery packaging

Daily chemical product 3C Electronics

Manufacturer of high precision QS-D-C 700 delta style robot for bakery packaging

Logistics sorting Toys

Manufacturer of high precision QS-D-C 700 delta style robot for bakery packaging

Wetwipes Hardware

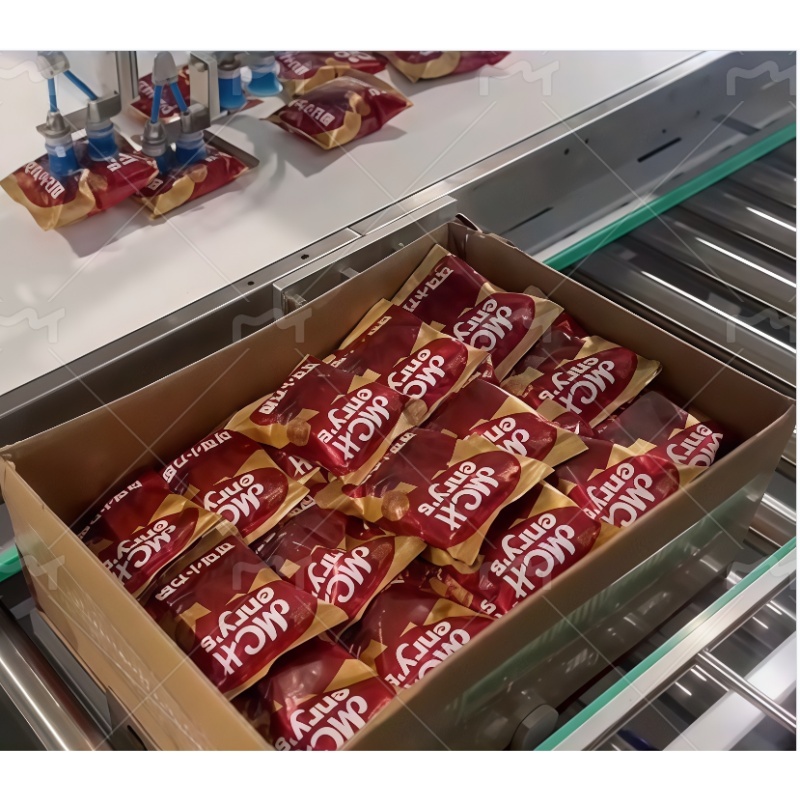

2. Production line real scene (machines + conveyor belt + complete material setup)

Manufacturer of high precision QS-D-C 700 delta style robot for bakery packaging

Food processing

The function of a Delta Robot in the industry:The spider manupulator mainly handles tasks like picking, placing, and packing during the food packaging process.

Manufacturer of high precision QS-D-C 700 delta style robot for bakery packaging

Pharcutical packaging

The role of spider robots in this industry:The spider manupulator mainly handles tasks like picking, placing, and packing during the Pharmaceutical packaging process.

Manufacturer of high precision QS-D-C 700 delta style robot for bakery packaging

Daily chemical product

The role of spider robots in this industry:Smart picking and handling, automatic bottle sorting, automatic packing

Manufacturer of high precision QS-D-C 700 delta style robot for bakery packaging

3C Electronics

The role of spider robots in this industry:The spider manupulator mainly handles tasks like picking, placing, and packing during the 3C Electronics packaging process.

Suitable for working conditions: automatic palletizing and depalletizing, high-speed picking and sorting, downstream packaging automation, precision assembly Manufacturer of high precision QS-D-C 700 delta style robot for bakery packaging

Logistic sorting

The role of spider robots in this industry:Visual recognition and positioning, automatic picking, placing, and delivery

Suitable working conditions: high-speed sorting needs, high-precision sorting needs, space-limited environments, 24-hour intensive operations, sorting of multiple types of goods, multi-arm collaboration and customization requirements

4.View Complete Industry Solutions

VII.Supporting components and full set of solutions

Parallel robots are rarely used alone; they are shown with supporting products to demonstrate one-stop service:
- Standard: Dedicated control cabinet, control system, data cables, installation brackets
- Optional: Vision positioning system, conveyor belt, loading and unloading mechanisms, safety fences
- Layout: Listed with images and text, labeled 'Standard'/'Optional', with brief matching suggestions
-Full set of solutions:Bagging machine, material feeding line, case opener, automatic packing machine, weighing mechanism, rejection mechanism, flap folding and sealing machine, automatic strapping machine, palletizer.

VIII.True sample case & Implemented project

Japan Food Factory|Packaging Automation overall Solution

Jordan Chemical Industry | Packaging Automation overall Solution

More Success Cases https://www.ecweb.com/website/file/case

IX. Patent,Certificate & after-sales service

Patent

Manufacturer of high precision QS-D-C 700 delta style robot for bakery packaging

An automatic carton erector A sorting robot A flexile gripper

Manufacturer of high precision QS-D-C 700 delta style robot for bakery packaging

An automatic forklift An automatic package A buffer feeding mechanism machine feeding device for a noodle fork sorting

machine

Manufacturer of high precision QS-D-C 700 delta style robot for bakery packaging

Drag-to-teach six-axis robot

Manufacturer of high precision QS-D-C 700 delta style robot for bakery packaging

After-sales service

Overseas Technical Support
Long-term Spare Parts Supply
12 Months Warranty
On-site Installation & Training (Optional)

X.FAQ

Q1: How fast do your Delta robot run?

Generally speaking, the speed is 80-180PP/min, while it can be customized as you require.

Q2: How strong is your company?

We have our own patents and R&D team. We provide customers with well-prepared pre-sales, in-site sale and after-sales service. Nisse bought our solution several years ago, but we still serve them fast. We have more than 70 employees. Our founder has been in this field for fifteen years. Our design director graduated from The Open University of China with a major in machinery engineering. We have a CE certificate. Our famous customers include Nissin, Adolf, etc.

Q3: Are your products complete?

Certainly! We can even provide packaging auto overall solutions.

Q4:What are the advantages of our products compared to other brands?

Complete packaging solution (spider-handle + unpacking + sealing + palletizing)

Q5.What is the maximum load capacity of the parallel robot?

5KG.

Q6:What is the robot's working range and accuracy?

1600, ±0.1mm.
