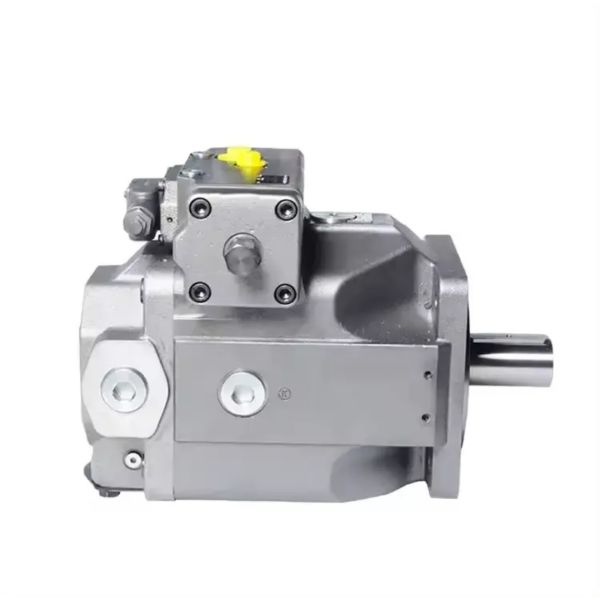

High Pressure Rexroth Plunger Pump A4VSO71LR2/10R-VPB13N00 A4VSO71LR2/10R-PPB13N00 A4VSO71DRG/10R-VPB25N00
High Pressure Rexroth Plunger Pump A4VSO71LR2/10R-VPB13N00 A4VSO71LR2/10R-PPB13N00 A4VSO71DRG/10R-VPB25N00
Specifications
Brand Name :
Rexroth
Model Number :
A4VSO71LR2/10R-VPB13N00 A4VSO71LR2/10R-PPB13N00 A4VSO71DRG/10R-VPB25N00
Certification :
ISO
Place of Origin :
Germany
MOQ :
negotiation
Price :
negotiation
Payment Terms :
MoneyGram,T/T,D/P,D/A,L/C,Western Union
Supply Ability :
negotiation
Delivery Time :
negotiation
Products Name :
Rexroth Plunger Pump
Mounting Type :
Flange, Foot, and Face
Pressure :
High Pressure
Transport Package :
Wooden Box
Structure :
PISTON PUMP
Standard Or Nonstandard :
Standard
Description

A4VSO71LR2/10R-VPB13N00 A4VSO71LR2/10R-PPB13N00 A4VSO71DRG/10R-VPB25N00 Rexroth equipment engineering machinery plunger pump imported from Germany with original packaging

Item

Specification

Brand Name

Rexroth

Place of Origin

Fujian, China

Warranty

12 Months

Video Outgoing-Inspection

Provided

Machinery Test Report

Provided

Application

Machinery Repair Shops

Material

Iron

Condition

Original

Certification

ISO

Feature

Long Life, Low Noise

Function

Filter Diesel Oil

Power

Hydraulic Power

High Pressure Rexroth Plunger Pump A4VSO71LR2/10R-VPB13N00 A4VSO71LR2/10R-PPB13N00 A4VSO71DRG/10R-VPB25N00

A4VSO180DRG/30R-PZB13N00

A4VSO180DRG/30R-VPB25N00

A4VSO180EO1/30R-PPB13N00

A4VSO180DFR/30R-VZB13N00

A4VSO180LR2/30R-PZB13N00

A4VSO180LR2/30R-VZB13N00

A4VSO180LR2/30R-VPB25N00

A4VSO180DFR/30R-PZB13N00

A4VSO180DRG/30R-VPB13N00

A4VSO180DRG/30R-VZB13N00

A4VSO180LR2/30R-PPB13N00

A4VSO180LR2/30R-VPB13N00

A4VSO250DR/30R-PZB13N00

A4VSO125DFR/30R-VZB13N00

A4VSO125EO1/30R-VPB25N00

A4VSO180LR2G/30R-VPB13N00

A4VSO180LR2G/30R-PPB13N00

A4VSO180DR/30R-VPB25N00

A4VSO180DR/30R-VZB13N00

A4VSO180DR/30R-PZB13N00

A4VSO180DR/30R-VPB13N00

A4VSO180DR/30R-PPB13N00

A4VSO125EO2/30R-VPB25N00

A4VSO125EO2/30R-VZB13N00

A4VSO125EO2/30R-PZB13N00

A4VSO125EO2/30R-VPB13N00

A4VSO125EO2/30R-PPB13N00

A4VSO125EO1/30R-VZB13N00

A4VSO125DFR/30R-VPB25N00

FAQ;

. Model Interpretation & Core Technical Parameters

Q1: What do the individual segments of the model code A4VSO71LR2/10R-VPB13N00 represent?

A1: The model code encodes key design and configuration details:
  • A4VSO: Series identifier (A=Axial piston pump; 4=Size series; V=Variable displacement; S=Swashplate design; O=Open-circuit application)
  • 71: Nominal displacement (71 cm³/r at maximum swashplate angle)
  • LR2: Control mode (LR=Hyperbolic power control; 2=Enhanced version with optimized power limiting response)
  • 10R: Mounting and rotation specification (10=Standard mounting flange per DIN 24336; R=Right-hand rotation when viewed from the drive end)
  • VPB13: Seal and port configuration (VP=Variable pressure port thread type; B13=FKM seal material compatible with mineral oil and HFC fluids; 13=Standard port size)
  • N00: Supplementary features (N=No special options; 00=Base model without additional accessories)

Q2: What are the key performance parameters (pressure, speed, flow) of this pump?

A2: Core nominal parameters (for mineral oil, operating temperature 40–60°C):
  • Pressure: Nominal working pressure = 350 bar; peak pressure = 420 bar (short-term operation, ≤5% of total runtime); case drain maximum pressure = 6 bar
  • Speed: Minimum stable speed = 600 rpm; nominal speed = 1500 rpm; maximum speed = 2200 rpm
  • Flow: At 1500 rpm, maximum flow = 106.5 L/min (calculated by 71 cm³/r × 1500 rpm ÷ 1000); flow is infinitely adjustable via swashplate angle (0–100%)
  • Power Matching: Requires a 37–45 kW drive motor (calculated by P = Q×p÷600, where Q=flow in L/min, p=pressure in bar)
