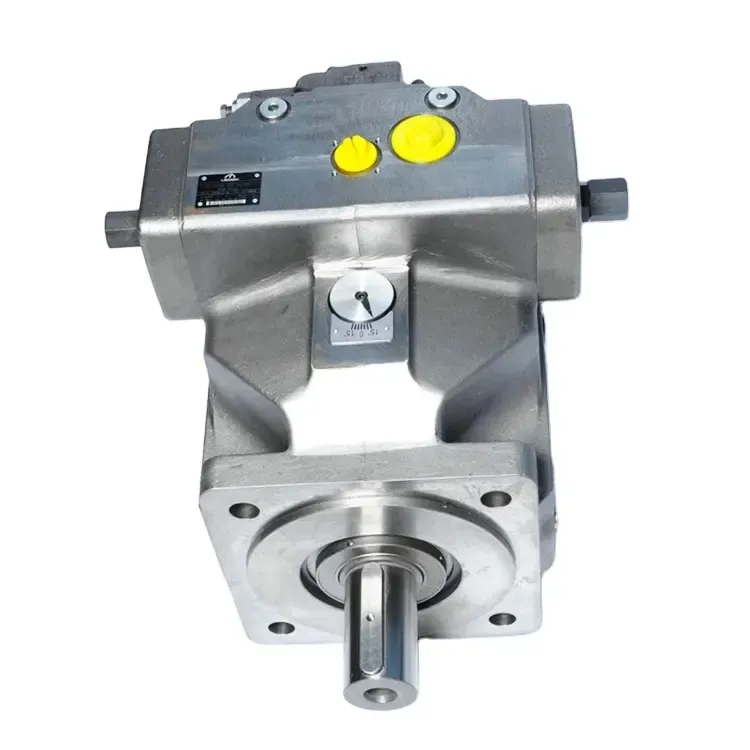

A4VSO180LR2G/22R-PPB13N00A4VSO180DR/22R-VPB25N00A4VSO180DR/22R-VZB13N00Rexroth axial piston pump imported from Germany
A4VSO180LR2G/22R-PPB13N00A4VSO180DR/22R-VPB25N00A4VSO180DR/22R-VZB13N00Rexroth axial piston pump imported from Germany
Specifications
Brand Name :
Rexroth
Model Number :
A4VSO180LR2G/22R-PPB13N00A4VSO180DR/22R-VPB25N00A4VSO180DR/22R-VZB13N00
Certification :
ISO
Place of Origin :
Germany
MOQ :
negotiation
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
negotiation
Delivery Time :
negotiation
Packaging Details :
wooden box
Type :
Directional Control Valve
Connection :
Subplate connection
Fluid :
Mineral Oil
Media :
Hydraulic Oil
Media Compatibility :
Mineral oil
Mountingtype :
Subplate / Manifold
Description

A4VSO180LR2G/22R-PPB13N00A4VSO180DR/22R-VPB25N00A4VSO180DR/22R-VZB13N00Rexroth axial piston pump imported from Germany

Parameter

Details

Displacement

125 cm³

Pump Type

Axial piston variable pump

Warranty

1 Year

Place of Origin

FuanJian, China

Connection Size

Ask for more

Max. Horsepower

22 HP

Number of Stages

1 Stage

Operating Pressure

350 bar

Showroom Location

CHINA

Weight

88 kg (Note: Unit supplemented for clarity; adjust if actual unit differs)

Brand Name

Rexroth

Dimension (LWH)

239 × 165 × 274 mm

Maximum Flow Rate

225 L/min

Power

131 KW

Pressure

350 bar

Structure

Single-stage axial piston structure (Note: Supplemented for technical accuracy; adjust if specific structure differs)

A4VSO180LR2G/22R-PPB13N00A4VSO180DR/22R-VPB25N00A4VSO180DR/22R-VZB13N00Rexroth axial piston pump imported from Germany

A4VSO125EO1/22R-PZB13N00

A4VSO125DRG/22R-PZB13N00

A4VSO125EO1/22R-PPB13N00

A4VSO125LR2/22R-PZB25N00

A4VSO125LR2/22R-VZB13N00

A4VSO125LR2/22R-VPB13N00

A4VSO125LR2/22R-PPB13N00

A4VSO125DRG/22R-VPB25N00

A4VSO125DRG/22R-VZB13N00

A4VSO125LR2/22R-PZB13N00

A4VSO40DFR/10L-PPB25N00

A4VSO125DR/22R-PZB13N00

A4VSO125DFR/22R-VPB25N00

A4VSO125DFR/22R-VZB13N00

A4VSO125DFR/22R-PZB13N00

A4VSO125DFR/22R-VPB13N00

A4VSO125DFR/22R-PPB13N00

A4VSO125LR2G/22R-VPB25N00

A4VSO125LR2G/22R-VZB13N00

A4VSO125LR2G/22R-PZB13N00

A4VSO125LR2G/22R-VPB13N00

A4VSO125LR2G/22R-PPB13N00

A4VSO125DR/22R-VPB25N00

A4VSO125DR/22R-VZB13N00

A4VSO125DR/22R-VPB13N00

A4VSO40DRG/10L-PPB13N00

A4VSO125DR/22R-PPB13N00

A4VSO71EO2/10L-PZB25N00

A4VSO71EO1/10L-PPB13N00

A4VSO71LR2/10L-PPB13N00

A4VSO71DRG/10L-PPB13N00

A4VSO71DFR/10L-PPB13N00

A4VSO71LR2G/10L-PZB13N00

A4VSO71DR/10L-PPB13N00

A4VSO40EO2/10L-PPB13N00

A4VSO40EO1/10L-PPB25N00

A4VSO40LR2/10L-PPB25N00

A4VSO40LR2/10L-PPB13N00

A4VSO40DRG/10L-PPB25N00

A4VSO125DRG/22R-PPB13N00

A4VSO40LR2G/10L-PPB13N00

A4VSO71LR2/10R-VPB25N00

A4VSO40LR2G/10L-PPB25N00

FAQ;

Installation & Commissioning
What are the requirements for the inlet and outlet oil pipelines of the pump?
A1: Pipeline requirements: 1) Inlet pipeline: a) Diameter ≥ pump inlet port diameter (recommended to increase by 10% to reduce resistance); b) Minimize bends (≤2 bends within 1 meter); c) Use seamless steel pipes or high-pressure hoses (avoid plastic pipes that are easy to collapse); d) Install a suction filter (filtration accuracy 25 μm, flow ≥ 1.5 times the pump rated flow). 2) Outlet pipeline: a) Pressure rating ≥ 35 MPa (peak pressure); b) Install a check valve near the pump outlet to prevent oil backflow; c) Reserve a pressure gauge interface (for real-time pressure monitoring); d) The pipeline should be fixed with brackets to avoid vibration resonance.
Q1: What preparations are required before the first commissioning of the new pump?
A9: Pre-commissioning preparations: 1) Oil tank and pipeline: Clean the oil tank (remove welding slag, rust) and rinse the pipeline with clean hydraulic oil; 2) Oil filling: Fill the oil tank with qualified hydraulic oil to the upper scale, and manually inject oil into the pump inlet until oil overflows from the vent plug; 3) Filter check: Confirm the suction and return filters are clean and correctly installed; 4) Valve setting: Set the system relief valve to the minimum pressure (5-10 MPa); 5) Electrical check: Confirm the motor rotation direction matches the pump's "R" (clockwise) mark; 6) Leakage inspection: Check all pipeline joints and pump seals for loose connections.
Q2: What is the correct commissioning procedure for the pump?
A10: Step-by-step commissioning: 1) No-load test: Start the motor at low speed (500 rpm) for 5 minutes, check for abnormal noise, pump body temperature (≤40℃), and no leakage; 2) Low-pressure test: Increase the motor speed to 1000 rpm, adjust the relief valve to 10 MPa, run for 10 minutes, and check the pressure stability and oil flow; 3) Rated pressure test: Gradually increase the pressure to 31.5 MPa (rated), run at 1500 rpm for 30 minutes, monitor pump body temperature (≤60℃), control valve response, and system pressure fluctuation (≤0.5 MPa); 4) Load-sensing test: Activate the executive component (e.g., cylinder), check if the pump displacement automatically adjusts with the load (flow increases when load is light, decreases when load is heavy); 5) Shutdown inspection: After stopping, check the oil level, filter contamination, and seal integrity.
