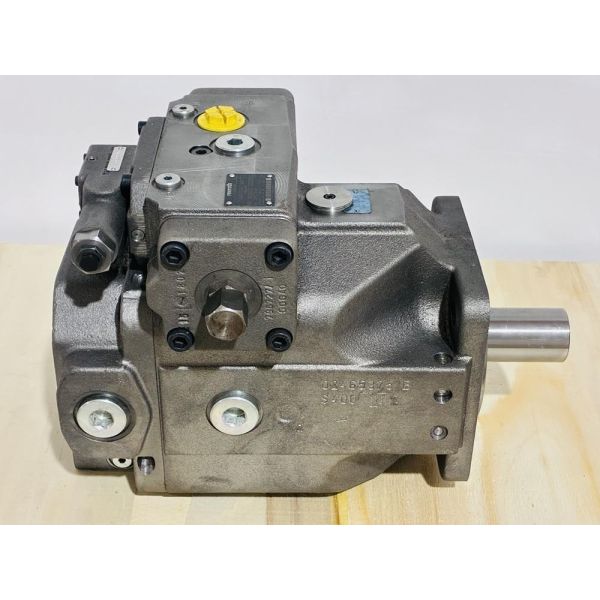

A4VSO40LR2G/10R-VZB13N00A4VSO40LR2G/10R-VPB13N00A4VSO40LR2G/10R-PPB13N00Rexroth axial mechanical piston pump imported from Germany
A4VSO40LR2G/10R-VZB13N00A4VSO40LR2G/10R-VPB13N00A4VSO40LR2G/10R-PPB13N00Rexroth axial mechanical piston pump imported from Germany
Specifications
Brand Name :
Rexroth
Model Number :
A4VSO40LR2G/10R-VZB13N00A4VSO40LR2G/10R-VPB13N00A4VSO40LR2G/10R-PPB13N00
Certification :
ISO
Place of Origin :
Germany
MOQ :
negotiation
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,Western Union,T/T,MoneyGram
Supply Ability :
negotiation
Delivery Time :
negotiation
Packaging Details :
wooden box
Fluid Compatibility :
Mineral oil
Fluid :
Mineral Oil
Connection Type :
Threaded
Connection :
Subplate connection
Actuation Type :
Direct acting
Medium :
Oil
Description

A4VSO40LR2G/10R-VZB13N00A4VSO40LR2G/10R-VPB13N00A4VSO40LR2G/10R-PPB13N00Rexroth axial mechanical piston pump imported from Germany

Parameter

Details

Displacement

125 cm³

Pump Type

Axial piston variable pump

Warranty

1 Year

Place of Origin

FuanJian, China

Connection Size

Ask for more

Max. Horsepower

22 HP

Number of Stages

1 Stage

Operating Pressure

350 bar

Showroom Location

CHINA

Weight

88 kg (Note: Unit supplemented for clarity; adjust if actual unit differs)

Brand Name

Rexroth

Dimension (LWH)

239 × 165 × 274 mm

Maximum Flow Rate

225 L/min

Power

131 KW

Pressure

350 bar

Structure

Single-stage axial piston structure (Note: Supplemented for technical accuracy; adjust if specific structure differs)

A4VSO40LR2G/10R-VZB13N00A4VSO40LR2G/10R-VPB13N00A4VSO40LR2G/10R-PPB13N00Rexroth axial mechanical piston pump imported from Germany

A4VSO125LR2/22R-VPB13N00

A4VSO125LR2/22R-PPB13N00

A4VSO125DRG/22R-VPB25N00

A4VSO125DRG/22R-VZB13N00

A4VSO125LR2/22R-PZB13N00

A4VSO40DFR/10L-PPB25N00

A4VSO125DR/22R-PZB13N00

A4VSO125DFR/22R-VPB25N00

A4VSO125DFR/22R-VZB13N00

A4VSO125DFR/22R-PZB13N00

A4VSO125DFR/22R-VPB13N00

A4VSO125DFR/22R-PPB13N00

A4VSO125LR2G/22R-VPB25N00

A4VSO125LR2G/22R-VZB13N00

A4VSO125LR2G/22R-PZB13N00

A4VSO125LR2G/22R-VPB13N00

A4VSO125LR2G/22R-PPB13N00

A4VSO125DR/22R-VPB25N00

A4VSO125DR/22R-VZB13N00

A4VSO125DR/22R-VPB13N00

A4VSO40DRG/10L-PPB13N00

A4VSO125DR/22R-PPB13N00

A4VSO71EO2/10L-PZB25N00

A4VSO71EO1/10L-PPB13N00

A4VSO71LR2/10L-PPB13N00

A4VSO71DRG/10L-PPB13N00

A4VSO71DFR/10L-PPB13N00

A4VSO71LR2G/10L-PZB13N00

A4VSO71DR/10L-PPB13N00

A4VSO40EO2/10L-PPB13N00

A4VSO40EO1/10L-PPB25N00

FQA;

Maintenance & Replacement

Q1: What is the recommended maintenance schedule for the pump?
A20: Regular maintenance schedule (based on 8-hour daily operation): 1) Daily maintenance: Check oil level, leakage, abnormal noise, and pump body temperature; 2) Weekly maintenance: Clean the suction and return filters, check the pressure gauge for accuracy, and tighten loose bolts; 3) Monthly maintenance: Sample the hydraulic oil for cleanliness and water content testing, inspect the shaft seal for oil seepage, and lubricate the coupling; 4) Quarterly maintenance: Disassemble the control valve (PZB13) for cleaning, check the swashplate wear, and test the load-sensing response; 5) Half-year maintenance: Replace the hydraulic oil and all filters, check the piston-cylinder pair clearance (should be ≤0.02 mm); 6) Annual maintenance: Complete disassembly of the pump, replace worn parts (bearings, seals, valve plates), and calibrate the control system.
Q2: How to correctly replace the hydraulic oil and filter of the pump system?
A21: Oil and filter replacement steps: 1) Preparations: Heat the hydraulic oil to 40-50℃ (to improve fluidity), prepare new oil, filters, and tools; 2) Drain the old oil: Open the oil tank drain valve, drain all old oil, and clean the oil tank with a lint-free cloth (avoid rags); 3) Replace the filters: Replace the suction filter, return filter, and pressure filter elements (use Rexroth original filters); 4) Add new oil: Use a filter cart (filtration accuracy 3 μm) to inject new oil into the tank to the upper scale; 5) Circulate and exhaust: Start the pump at low speed for 10 minutes, open the system vent valve to exhaust; 6) Check: After stopping, check the oil level (make up if insufficient) and the filter pressure difference (should be ≤0.1 MPa).
