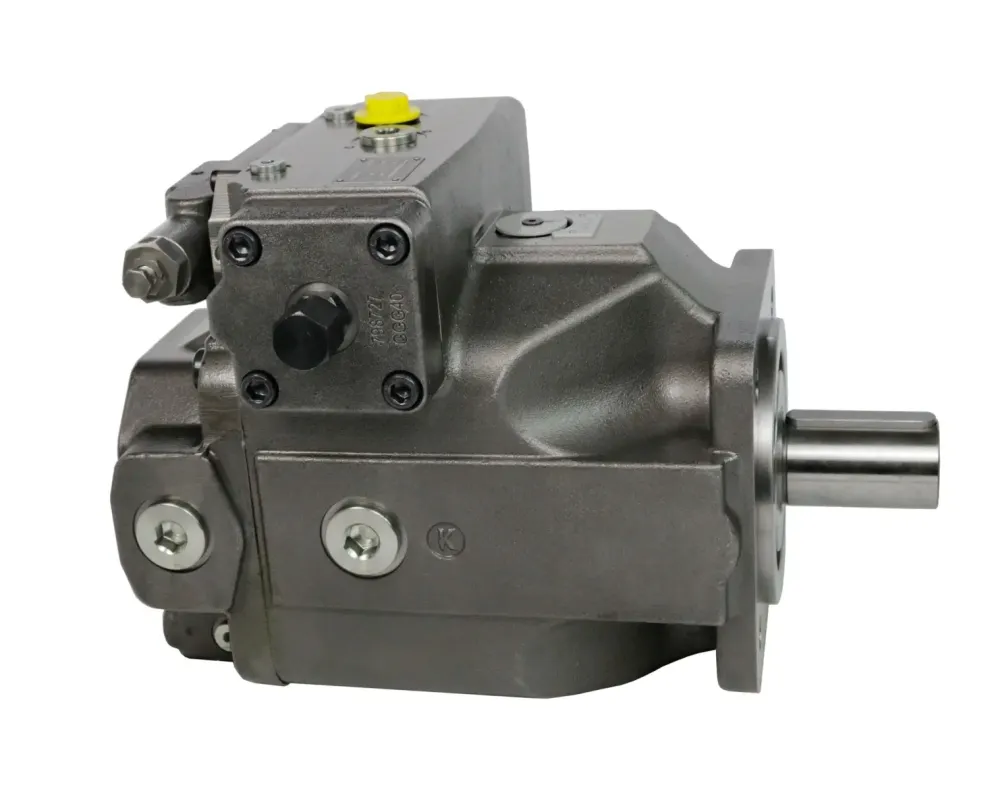

A4VSO40EO1/10R-VPB13N00A4VSO40EO1/10R-PPB13N00A4VSO40LR2/10R-VPB25N00Rexroth axial mechanical piston pump imported from Germany
A4VSO40EO1/10R-VPB13N00A4VSO40EO1/10R-PPB13N00A4VSO40LR2/10R-VPB25N00Rexroth axial mechanical piston pump imported from Germany
Specifications
Brand Name :
Rexroth
Model Number :
A4VSO40EO1/10R-VPB13N00A4VSO40EO1/10R-PPB13N00A4VSO40LR2/10R-VPB25N00
Certification :
ISO
Place of Origin :
Germany
MOQ :
negotiation
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
negotiation
Delivery Time :
negotiation
Packaging Details :
wooden box
Coil Type :
Wet Pin
Fluid :
Mineral Oil
Application :
Industrial Automation, Pneumatic Systems
Medium :
Oil
Manufacturer :
Rexroth
Fluid Compatibility :
Mineral Oil
Description

A4VSO40EO1/10R-VPB13N00A4VSO40EO1/10R-PPB13N00A4VSO40LR2/10R-VPB25N00Rexroth axial mechanical piston pump imported from Germany

Parameter

Details

Displacement

125 cm³

Pump Type

Axial piston variable pump

Warranty

1 Year

Place of Origin

FuanJian, China

Connection Size

Ask for more

Max. Horsepower

22 HP

Number of Stages

1 Stage

Operating Pressure

350 bar

Showroom Location

CHINA

Weight

88 kg (Note: Unit supplemented for clarity; adjust if actual unit differs)

Brand Name

Rexroth

Dimension (LWH)

239 × 165 × 274 mm

Maximum Flow Rate

225 L/min

Power

131 KW

Pressure

350 bar

Structure

Single-stage axial piston structure (Note: Supplemented for technical accuracy; adjust if specific structure differs)

A4VSO40EO1/10R-VPB13N00A4VSO40EO1/10R-PPB13N00A4VSO40LR2/10R-VPB25N00Rexroth axial mechanical piston pump imported from Germany

A4VSO71DFR/10R-VZB13N00

A4VSO71DFR/10R-VPB13N00

A4VSO71DFR/10R-PPB13N00

A4VSO71DFR/10R-PZB13N00

A4VSO40DFR/10L-PPB13N00

A4VSO40DRG/10R-PPB13N00

A4VSO40EO2/10R-VPB13N00

A4VSO71LR2G/10R-VZB13N00

A4VSO71LR2G/10R-PZB13N00

A4VSO71LR2G/10R-VPB13N0

A4VSO71LR2G/10R-PPB13N00

A4VSO71DR/10R-VPB25N00

A4VSO71DR/10R-VZB13N00

A4VSO71DR/10R-PZB13N00

A4VSO71DR/10R-VPB13N00

A4VSO71DR/10R-PPB13N00

A4VSO40EO2/10R-PZB25N00

A4VSO40EO2/10R-VZB13N0

A4VSO40EO2/10R-PZB13N00

A4VSO40EO2/10R-PPB13N00

A4VSO40DRG/10R-VPB13N00

A4VSO40EO1/10R-VPB25N00

A4VSO40EO1/10R-VZB13N00

A4VSO40EO1/10R-PZB13N00

A4VSO40EO1/10R-VPB13N00

A4VSO40EO1/10R-PPB13N00

A4VSO40LR2/10R-VPB25N00

A4VSO40LR2/10R-VZB13N00

A4VSO40LR2/10R-PZB13N00

A4VSO40LR2/10R-VPB13N00

A4VSO40LR2/10R-PPB13N00

A4VSO40DRG/10R-VPB25N00

A4VSO40DRG/10R-VZB13N00

A4VSO40DRG/10R-PZB13N00

FAQ;

Operation & Fault Troubleshooting

Q1: What causes insufficient output pressure of the pump during operation, and how to fix it?
A13: Main causes and solutions: 1) Severe internal leakage: Check the piston-cylinder pair, swashplate, and valve plate for wear (if wear exceeds 0.1 mm, replace the parts); 2) Load-sensing control valve failure: Disassemble the PZB13 valve, clean the pressure feedback oil passage, and replace the aging spring; 3) Relief valve is set too low: Re-calibrate the relief valve to the rated pressure (31.5 MPa); 4) Air in the system: Bleed the air as per Q12; 5) Clogged oil filter: Replace the filter element and clean the oil tank; 6) Hydraulic oil viscosity is too low: Replace with oil of the correct viscosity (ISO VG 46).
Q2: Why does the pump output flow fluctuate, and how to resolve it?
A14: Common reasons and fixes: 1) Unstable load-sensing signal: Check the pressure feedback pipeline for blockage, clean the pipeline, and ensure the signal line is tightly connected; 2) Worn control valve core: Replace the PZB13 control valve core or apply lapping to restore sealing; 3) Air mixed in the oil: Bleed the system; 4) Clogged oil suction filter: Clean or replace the filter element; 5) Variable mechanism jamming: Disassemble the swashplate mechanism, clean the guide rail, and apply molybdenum disulfide lubricant; 6) Voltage fluctuation of the control circuit (if equipped with electric control): Stabilize the power supply voltage (±5% of rated value).
