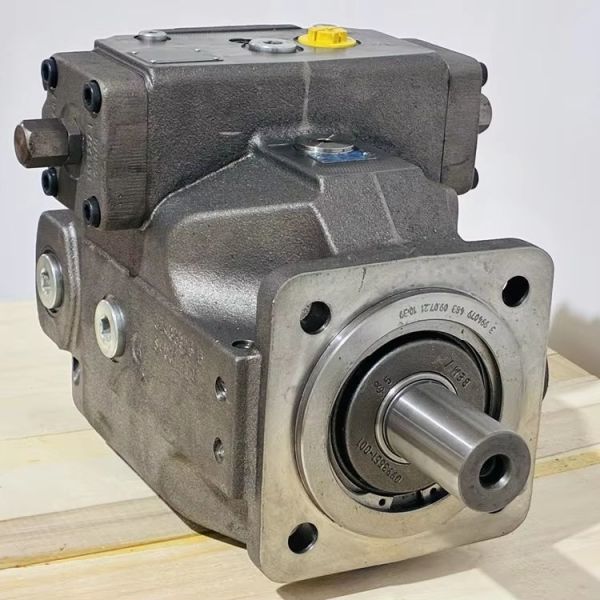

A4VSO71LR2G/10R-VPB25N00A4VSO40DFR/10R-PPB13N00A4VSO40LR2G/10R-VPB25N00Rexroth A4VSO Series Axial Piston VariableDisplacementPump 125cm 350 Bar 22HP HydraulicPump German Import
A4VSO71LR2G/10R-VPB25N00A4VSO40DFR/10R-PPB13N00A4VSO40LR2G/10R-VPB25N00Rexroth A4VSO Series Axial Piston VariableDisplacementPump 125cm 350 Bar 22HP HydraulicPump German Import
Specifications
Brand Name :
Rexroth
Model Number :
A4VSO71LR2G/10R-VPB25N00A4VSO40DFR/10R-PPB13N00A4VSO40LR2G/10R-VPB25N00
Certification :
ISO
Place of Origin :
German
MOQ :
negotiation
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
negotiation
Delivery Time :
negotiation
Packaging Details :
wooden box
Actuation Type :
Solenoid
Media :
Hydraulic Oil
Model :
Rexroth
Fluid :
Mineral Oil
Function :
Normally Closed
Pressure Fluid :
Hydraulic oil
Medium :
Oil
Description

A4VSO71LR2G/10R-VPB25N00A4VSO40DFR/10R-PPB13N00A4VSO40LR2G/10R-VPB25N00Rexroth A4VSO Series Axial Piston VariableDisplacementPump 125cm 350 Bar 22HP HydraulicPump German Import

Parameter

Details

Displacement

125 cm³

Pump Type

Axial piston variable pump

Warranty

1 Year

Place of Origin

FuanJian, China

Connection Size

Ask for more

Max. Horsepower

22 HP

Number of Stages

1 Stage

Operating Pressure

350 bar

Showroom Location

CHINA

Weight

88 kg (Note: Unit supplemented for clarity; adjust if actual unit differs)

Brand Name

Rexroth

Dimension (LWH)

239 × 165 × 274 mm

Maximum Flow Rate

225 L/min

Power

131 KW

Pressure

350 bar

Structure

Single-stage axial piston structure (Note: Supplemented for technical accuracy; adjust if specific structure differs)

A4VSO71LR2G/10R-VPB25N00A4VSO40DFR/10R-PPB13N00A4VSO40LR2G/10R-VPB25N00Rexroth A4VSO Series Axial Piston VariableDisplacementPump 125cm 350 Bar 22HP HydraulicPump German Import

A4VSO125DR/22R-VPB25N00

A4VSO125DR/22R-VZB13N00

A4VSO125DR/22R-VPB13N00

A4VSO40DRG/10L-PPB13N00

A4VSO125DR/22R-PPB13N00

A4VSO71EO2/10L-PZB25N00

A4VSO71EO1/10L-PPB13N00

A4VSO71LR2/10L-PPB13N00

A4VSO71DRG/10L-PPB13N00

A4VSO71DFR/10L-PPB13N00

A4VSO71LR2G/10L-PZB13N00

A4VSO71DR/10L-PPB13N00

A4VSO40EO2/10L-PPB13N00

A4VSO40EO1/10L-PPB25N00

A4VSO40LR2/10L-PPB25N00

A4VSO40LR2/10L-PPB13N00

A4VSO40DRG/10L-PPB25N00

A4VSO125DRG/22R-PPB13N00

A4VSO40LR2G/10L-PPB13N00

A4VSO71LR2/10R-VPB25N00

A4VSO40LR2G/10L-PPB25N00

A4VSO40DR/10L-PPB25N00

A4VSO40DR/10L-PPB13N00

A4VSO71EO2/10R-VPB25N00

A4VSO71EO2/10R-VZB13N00

A4VSO71EO2/10R-PZB13N00

A4VSO71EO2/10R-VPB13N00

A4VSO71EO2/10R-PPB13N00

A4VSO71EO1/10R-VPB25N00

A4VSO71EO1/10R-PZB13N00

A4VSO71EO1/10R-VPB13N00

A4VSO71EO1/10R-PPB13N00

FAQ;

Operation & Fault Troubleshooting
Q1: What causes the pump to make abnormal noise during operation?
A15: Noise classification and causes: 1) Cavitation noise (gurgling sound): Oil level is too low, suction pipeline is blocked, or filter is clogged; 2) Mechanical noise (metallic impact sound): Bearing damage, piston wear, or swashplate loose; 3) Hydraulic noise (whistling sound): Control valve stuck, oil passage blocked, or relief valve unstable; 4) Resonance noise (low-frequency vibration sound): Pump and pipeline resonance, or motor-pump shaft misalignment. Corresponding solutions: Replenish oil, clean filters, replace bearings/pistons, align shafts, or install shock absorbers.
Q2: Why does the pump body overheat (temperature > 65℃), and how to handle it?
A16: Overheating causes and solutions: 1) Severe internal leakage: Replace worn piston-cylinder pair and valve plate; 2) High oil viscosity: Replace with low-viscosity oil (e.g., ISO VG 32 for high-temperature environments); 3) Poor heat dissipation: Clean the system cooler, increase cooling fan speed, or add a supplementary cooler; 4) Relief valve malfunction (long-term pressure relief): Repair or replace the relief valve; 5) Pipeline backpressure is too high: Shorten the return pipeline, reduce bends, or increase the pipeline diameter; 6) Ambient temperature is too high: Install a heat shield between the pump and high-temperature heat sources.
