Specifications
Brand Name :
PR
Model Number :
PR 4104
Certification :
CO
Place of Origin :
Denmark
MOQ :
1
Price :
150-250usd
Payment Terms :
T/T
Supply Ability :
99pcs 4-6 weeks
Delivery Time :
5-7 work days
Dimensions :
120mm x 80mm x 40mm
Ingressprotectionrating :
IP65
Productname :
Multifunctional Transmitter
Responsetime :
≤ 200ms
Model :
MTX-500
Mountingtype :
DIN Rail / Panel Mount
Accuracy :
±0.1%
Powersupply :
24V DC
Housingmaterial :
Aluminum Alloy
Display :
LCD with backlight
Operatingtemperaturerange :
-40°C to 85°C
Description

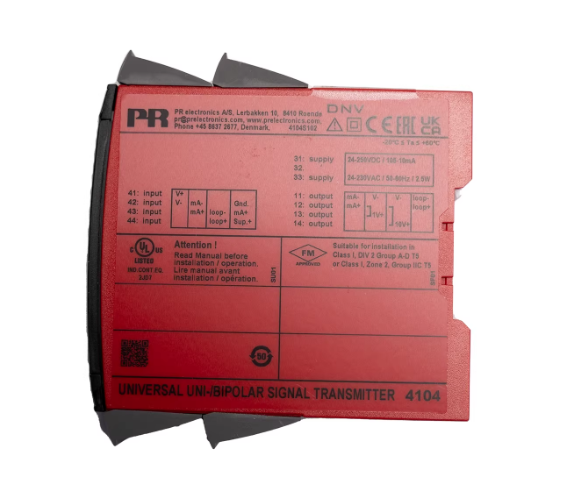

Universal Uni-/Bipolar Signal Transmitter PR 4104
Key Features
• Measures and outputs uni-/bipolar voltage and current signals
• Works with both passive and active inputs and outputs
• Compatible with PR 4500 display series
• High accuracy: Better than 0.05% of selected range
Environmental Conditions
Operating temperature -20°C to +60°C
Storage temperature -20°C to +85°C
Calibration temperature 20...28°C
Relative humidity < 95% RH (non-condensing)
Protection degree IP20
Installation in Pollution degree 2 & measurement / overvoltage category II
Mechanical Specifications
Dimensions (HxWxD) 109 x 23.5 x 104 mm
Weight approx. 155 g
Weight incl. 4501 / 451x (approx.) 170 g / 185 g
DIN rail type DIN EN 60715/35 mm
Wire size 0.13...2.08 mm² AWG 26...14 stranded wire
Screw terminal torque 0.5 Nm
Common Specifications
Supply
Supply voltage, universal 21.6...253 VAC, 50...60 Hz or 19.2...300 VDC
Max. required power ≤ 2.5 W
Max. power dissipation ≤ 2.5 W
Isolation Voltage
Isolation voltage, test / working 2.3 kVAC / 250 VAC
Response Time
Response time (0...90%, 100...10%) < 20 ms
Auxiliary Supplies
2-wire loop supply > 16 V / 20 mA
3-wire loop supply > 18 V / 20 mA
Loop supply limitation 30 mA
Programming PR 4500 communication interfaces
Signal / noise ratio > 60 dB
Cut-off frequency (3 dB) > 40 Hz
Accuracy Better than 0.05% of selected range
EMC immunity influence < ±0.5% of span
Extended EMC immunity: NAMUR NE21, A criterion, burst < ±1% of span
Input Specifications
Current Input
Signal range ±23 mA
Programmable measurement ranges 0...20 and 4...20 mA ± 10 and ± 20 mA
Input voltage drop 1.4 V @ 20 mA
Loop error detection, 4...20 mA: Low < 3.6 mA
Loop error detection, 4...20 mA: High > 21 mA
Voltage Input
Signal range ±12 V
Programmable measurement ranges 0/0.2...1, 0/1...5, 0/2...10 VDC ±1, ±5 and ±10 V
Input resistance > 2 MΩ
Output Specifications
Current Output
Signal range 0...23 mA (unipolar) -23...+23 mA (bipolar)
Current limit ≤ 28 mA (unipolar) ± 28 mA (bipolar)
Load stability ≤ 0.001% of span / 100 Ω
Response time, programmable 0.0...60.0 s
Voltage Output
Programmable signal ranges 0/0.2...1; 0/1...5 ; 0/2...10 V ±1, ±5 and ±10 V
Load (@ voltage output) ≥ 500 kΩ
Response time, programmable 0.0...60.0 s
Compliance & Approvals
Observed Authority Requirements
EMC 2014/30/EU & UK SI 2016/1091
LVD 2014/35/EU & UK SI 2016/1101
RoHS 2011/65/EU & UK SI 2012/3032
EAC TR-CU 020/2011
Approvals
c UL us, UL 508 E248256
FM 3025177
DNV Marine TAA0000101
