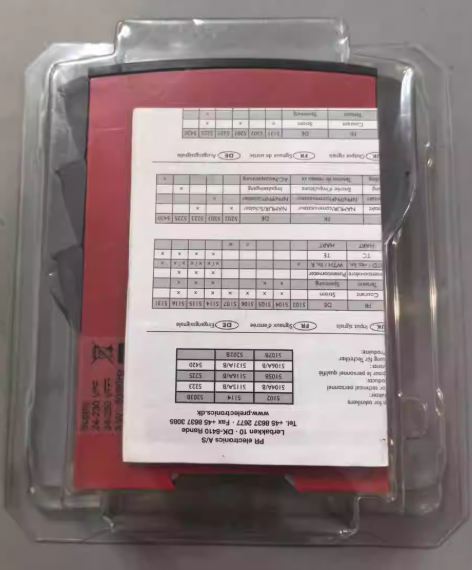

PR 5131A 2 Wire Programmable Transmitter 3.75 kVAC Galvanic Isolation RTD TC mV Input
PR 5131A 2 Wire Programmable Transmitter 3.75 kVAC Galvanic Isolation RTD TC mV Input
PR 5131A 2 Wire Programmable Transmitter 3.75 kVAC Galvanic Isolation RTD TC mV Input
PR 5131A 2 Wire Programmable Transmitter 3.75 kVAC Galvanic Isolation RTD TC mV Input
PR 5131A 2 Wire Programmable Transmitter 3.75 kVAC Galvanic Isolation RTD TC mV Input
PR 5131A 2 Wire Programmable Transmitter 3.75 kVAC Galvanic Isolation RTD TC mV Input
PR 5131A 2 Wire Programmable Transmitter 3.75 kVAC Galvanic Isolation RTD TC mV Input
PR 5131A 2 Wire Programmable Transmitter 3.75 kVAC Galvanic Isolation RTD TC mV Input
Specifications
Brand Name :
PR
Model Number :
PR 5131A
Certification :
CO
Place of Origin :
Denmark
MOQ :
1
Price :
150-250usd
Payment Terms :
T/T
Supply Ability :
99pcs 4-6 weeks
Delivery Time :
5-7 work days
Displaytype :
LCD
Responsetime :
≤ 1 second
Productname :
Multifunctional Transmitter
Signaltype :
Analog/Digital
Mountingtype :
DIN Rail / Panel Mount
Protectionrating :
IP65
Functionality :
Multifunctional
Outputrange :
4-20mA / 0-10V
Housingmaterial :
Aluminum Alloy
Powersupply :
24V DC
Inputrange :
0-10V / 4-20mA
Accuracy :
±0.1%
Operatingtemperature :
-20°C to 70°C
Communicationprotocol :
HART / Modbus
Description

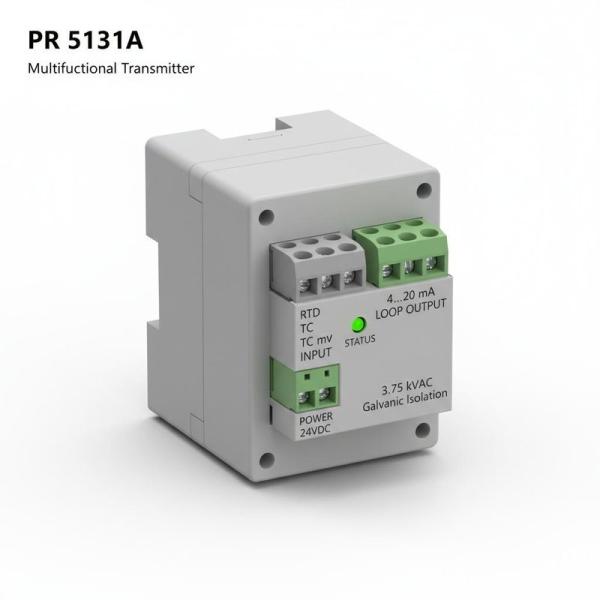

PR 5131A 2-Wire Programmable Transmitter

A versatile 2-wire programmable transmitter supporting multiple input types including RTD, TC, mV, linear resistance, mA, and V with 3.75 kVAC galvanic isolation and 4...20 mA loop output.

  • Input for RTD, TC, mV, linear resistance, mA, and V
  • 3.75 kVAC galvanic isolation
  • 4...20 mA loop output
  • 1- or 2-channel version available
  • DIN rail mounting
Environmental Conditions
Operating temperature-20°C to +60°C
Calibration temperature20...28°C
Relative humidity< 95% RH (non-condensing)
Protection degreeIP20
Mechanical Specifications
Dimensions (HxWxD)109 x 23.5 x 130 mm
Weight approx.195 g
DIN rail typeDIN EN 60715/35 mm
Wire size0.13...2.08 mm² AWG 26...14 stranded wire
Screw terminal torque0.5 Nm
Common Specifications
Supply
Supply voltage7.5...35 VDC
Fuse50 mA SB / 250 VAC
Isolation Voltage
Isolation voltage, test / working3.75 kVAC / 250 VAC
PELV/SELVIEC 61140
Response Time
Temperature input, programmable (0...90%, 100...10%)400 ms...60 s
mA / V input (programmable)250 ms...60 s
ProgrammingPR 5909 Loop Link communications interface
Signal / noise ratioMin. 60 dB (0...100 kHz)
Signal dynamics, input22 bit
Signal dynamics, output16 bit
Updating time115 ms (temperature input) 75 ms (mA / V / mV input)
Performance Characteristics
EMC immunity influence< ±0.5% of span
Extended EMC immunity: NAMUR NE21, A criterion, burst< ±1% of span
Effect of supply voltage change< 0.005% of span / VDC
Input Specifications
Common Input Specifications
Max. offset50% of selected max. value
RTD Input
RTD typePt100, Ni100, lin. R
Cable resistance per wire10 Ω (max.)
Sensor currentNom. 0.2 mA
Effect of sensor cable resistance (3-/4-wire)< 0.002 Ω / Ω
Sensor error detectionYes
TC Input
Thermocouple typeB, E, J, K, L, N, R, S, T, U, W3, W5, LR
Cold junction compensation (CJC)< ±1.0°C
Sensor error currentNom. 30 μA
Sensor error detectionYes
Current Input
Measurement range0...100 mA
Min. measurement range (span)4 mA
Input resistance: Supplied unitNom. 10 Ω + PTC 10 Ω
Input resistance: Non-supplied unitRSHUNT = ∞, VDROP < 6 V
mV Input
Measurement range-150...+150 mV
Voltage Input
Measurement range0...250 VDC
Min. measurement range (span)5 mV
Input resistanceNom. 10 MΩ (≤ 2.5 VDC) Nom. 5 MΩ (> 2.5 VDC)
Output Specifications
Current Output
Signal range4…20 mA
Min. signal range10 mA
Load (@ current output)≤ (Vsupply - 7.5) / 0.023 [Ω]
Load stability≤ 0.01% of span / 100 Ω
Current limit≤ 28 mA
Sensor error indicationProgrammable 3.5…23 mA
NAMUR NE43 Upscale/Downscale23 mA / 3.5 mA
of span= of the presently selected range
Compliance & Certifications
EMC2014/30/EU
LVD2014/35/EU
RoHS2011/65/EU
EACTR-CU 020/2011
