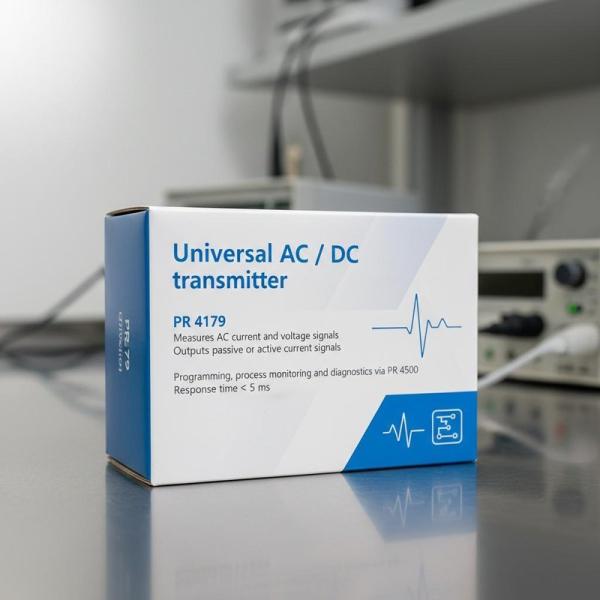

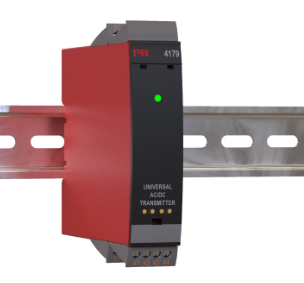

AC DC Universal Signal Transmitter PR 4179 Outputs Passive / Active Current Signals
AC DC Universal Signal Transmitter PR 4179 Outputs Passive / Active Current Signals
AC DC Universal Signal Transmitter PR 4179 Outputs Passive / Active Current Signals
AC DC Universal Signal Transmitter PR 4179 Outputs Passive / Active Current Signals
AC DC Universal Signal Transmitter PR 4179 Outputs Passive / Active Current Signals
AC DC Universal Signal Transmitter PR 4179 Outputs Passive / Active Current Signals
AC DC Universal Signal Transmitter PR 4179 Outputs Passive / Active Current Signals
AC DC Universal Signal Transmitter PR 4179 Outputs Passive / Active Current Signals
Specifications
Brand Name :
PR
Model Number :
PR 4179
Certification :
CO
Place of Origin :
Denmark
MOQ :
1
Price :
150usd -350usd
Payment Terms :
T/T
Supply Ability :
99pcs 4-6 weeks
Delivery Time :
5-7 work days
Mountingoptions :
Panel mount, Wall mount
Calibration :
Factory calibrated
Material :
Stainless Steel
Responsetime :
Less than 1 second
Application :
Industrial process control, HVAC, Hydraulic systems
Displaytype :
Digital LCD
Powersupply :
24 V DC
Protectionrating :
IP65
Measurementrange :
0 to 1000 psi
Productname :
Pressure Measurement Instruments
Connectiontype :
1/4 inch NPT
Pressuretype :
Gauge, Absolute, Differential
Outputsignal :
4-20 mA, 0-10 V
Accuracy :
±0.25% of full scale
Operatingtemperature :
-20°C to 85°C
Description

Environmental Conditions

Operating temperature -20°C to +60°C
Storage temperature -20°C to +85°C
Calibration temperature 20...28°C
Relative humidity < 95% RH (non-cond.)
Protection degree IP20
Installation in Pollution degree 2 & meas. / overvoltage cat. II

Mechanical specifications

Dimensions (HxWxD) 109 x 23.5 x 104 mm
Dimensions (HxWxD) w/ PR 4500 109 x 23.5 x 131 mm
Weight approx. 155 g
Weight incl. 4501 / 451x (approx.) 170 g / 185 g
DIN rail type DIN EN 60715/35 mm
Wire size 0.13...2.08 mm2 AWG 26...14 stranded wire
Screw terminal torque 0.5 Nm
Vibration IEC 60068-2-6
2...13.2 Hz ±1 mm
13.2...100 Hz ±0.7 g

Common specifications

Supply
Supply voltage, universal 21.6...253 VAC, 50...60 Hz or 19.2...300 VDC
Max. required power 1.6 W
Max. power dissipation - current measurement 2.7 W
Max. power dissipation - voltage measurement 1.6 W

Isolation voltage
Test voltage 2.3 kVAC
Working voltage 250 VAC (reinforced) / 500 VAC (basic)

Response time
Response time (0...90%, 100...10%) < 0.75 s
Programming PR 4500 communication interfaces
Signal dynamics, input 20 bit
Signal dynamics, output 18 bit
Signal / noise ratio > 60 dB
Output referred common mode rejection ratio 0.02 ppm / VHz
Accuracy Better than 0.3% of selected range*
EMC immunity influence < ±0.5% of span*
Extended EMC immunity: NAMUR NE21, A criterion, burst < ±1% of span*
of span = of selected standard range

Input specifications

Current input
Signal range 0...5 AAC / 40...400 Hz
Maximum input limit 6.00 AAC @ 40°C
Programmable measurement ranges 0...0.5; 0…1; 0…2.5 & 0...5 AAC
Custom configurable signal range 0...5 AAC /40...400 Hz
Min. measurement range (span) 0.5 AAC
Input resistance < 0.042 Ω (incl. terminals)

Voltage input
Signal range 0...300 VAC / 40...400 Hz
Programmable measurement ranges 0...0.5, 0...1, 0...2.83, 0…5, 0…120, 0…230 & 0…300 VAC
Custom configurable signal range 0...300 VAC / 40...400 Hz
Min. measurement range (span) 0.5 VAC
Input resistance Nom. 3 MΩ || 100 pF

Output specifications

Active unipolar and bipolar mA output
Programmable ranges 0...20, 4...20 and S4...20 mA ±10 and ±20 mA
Direct or Inverted Action
Load (@ current output) ≤ 800 Ω
V-curve function, active signals, 100-0-100% 20-0-20 mA

Passive 2-wire mA output
Programmable ranges 0...20 and 4...20 mA Direct or Inverted action
V-curve function, 100-0-100% 20-0-20 mA
External loop supply 3.5...30 V

Current output
Signal range 0...23 mA (unipolar) -23...+23 mA (bipolar)
Current limit ≤ 28 mA (unipolar) ± 28 mA (bipolar)
Load stability ≤ 0.001% of span / 100 Ω
Response time, programmable 0.0...60.0 s

Voltage output
Programmable signal ranges 0/0.2...1; 0/1...5 ; 0/2...10; 1...0.2/0; 5...1/0; 10...2/0 V ±1, ±5 and ±10 V
Direct or Inverted action
V-curve function, 100-0-100% 1-0-1, 5-0-5 and 10-0-10 V
Load (@ voltage output) ≥ 500 kΩ
Response time, programmable 0.0...60.0 s

Observed authority requirements

EMC 2014/30/EU & UK SI 2016/1091
LVD 2014/35/EU & UK SI 2016/1101
RoHS 2011/65/EU & UK SI 2012/3032
EAC TR-CU 020/2011

Approvals

c UL us, UL 508 E248256
SIL Hardware assessed for use in SIL applications

NB

* / ** For custom configurable signal ranges, general accuracy and EMC specifications are 0.3% of full scale
