Specifications
Brand Name :
PR
Model Number :
PR 4114
Certification :
CO
Place of Origin :
Denmark
MOQ :
1
Price :
150-250usd
Payment Terms :
T/T
Supply Ability :
99pcs 4-6 weeks
Delivery Time :
5-7 work days
Operatingtemperaturerange :
-40°C to 85°C
Accuracy :
±0.1%
Model :
MT-2024
Responsetime :
≤ 1 second
Powersupply :
24V DC
Dimensions :
120mm x 80mm x 40mm
Ingressprotectionrating :
IP67
Housingmaterial :
Aluminum Alloy
Productname :
Multifunctional Transmitter
Displaytype :
LCD with backlight
Description

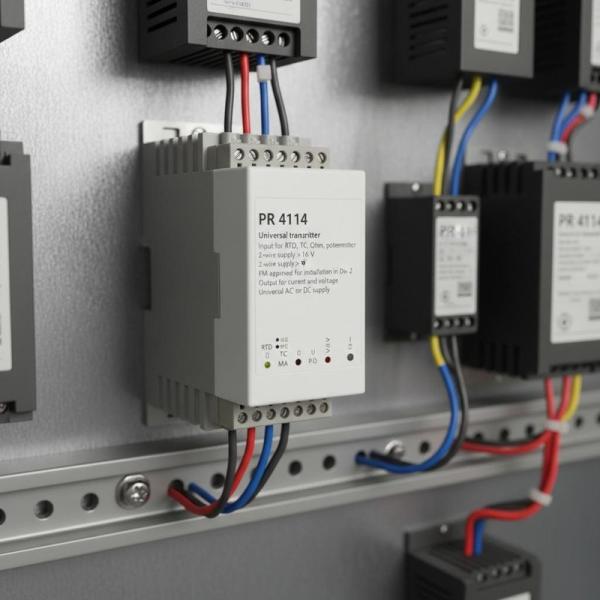

Universal Transmitter
PR 4114
  • Input for RTD, TC, Ohm, potentiometer, mA and V
  • 2-wire supply > 16 V
  • FM-approved for installation in Div. 2
  • Output for current and voltage
  • Universal AC or DC supply
Environmental Conditions
Operating temperature -20°C to +60°C
Storage temperature -20°C to +85°C
Calibration temperature 20...28°C
Relative humidity < 95% RH (non-cond.)
Protection degree IP20
Mechanical Specifications
Dimensions (HxWxD) 109 x 23.5 x 104 mm
Weight approx. 155 g
Weight incl. 4501 / 451x (approx.) 170 g / 185 g
Wire size 0.13...2.08 mm² AWG 26...14 stranded wire
Screw terminal torque 0.5 Nm
Vibration IEC 60068-2-6
2...13.2 Hz: ±1 mm
13.2...100 Hz: ±0.7 g
Common Specifications
Supply
Supply voltage, universal 21.6...253 VAC, 50...60 Hz or 19.2...300 VDC
Fuse 400 mA SB / 250 VAC
Max. required power ≤ 2.0 W
Max. power dissipation ≤ 2.0 W
Isolation Voltage
Isolation voltage, test / working: 2.3 kVAC / 250 VAC
Response Time
Temperature input (0...90%, 100...10%): ≤ 1 s
mA / V input (0...90%, 100...10%): ≤ 400 ms
Auxiliary Supplies
2-w. supply (term. 44...43): 25...16 VDC / 0...20 mA
Programming: PR 4500 communication interfaces
Signal / noise ratio: Min. 60 dB (0...100 kHz)
Accuracy: Better than 0.1% of sel. range
EMC immunity influence: < ±0.5% of span
Extended EMC immunity: NAMUR NE21, A criterion, burst: < ±1% of span
Input Specifications
RTD Input
RTD type Pt10/20/50/100/200/250; Pt300/400/500/1000; Ni50/100/120/1000; Cu10/20/50/100
Cable resistance per wire 50 Ω (max.)
Sensor current Nom. 0.2 mA
Effect of sensor cable resistance (3-/4-wire) < 0.002 Ω / Ω
Sensor error detection Yes
Short circuit detection < 15 Ω
Linear Resistance Input
Linear resistance min....max.: 0 Ω...10000 Ω
Potentiometer Input
Potentiometer min....max.: 10 Ω...100 kΩ
TC Input
Thermocouple type B, E, J, K, L, N, R, S, T, U, W3, W5, LR
Cold junction compensation (CJC) via ext. sensor in 5910 20...28°C ≤ ±1°C, -20...20°C / 28...70°C ≤ 2°C
CJC via int. mounted sensor ±(2.0°C + 0.4°C * Δt)
Sensor error detection Yes
Sensor error current: When detecting / else Nom. 2 μA / 0 μA
Current Input
Measurement range 0...23 mA
Programmable measurement ranges 0...20 and 4...20 mA
Input resistance Nom. 20 Ω + PTC 50 Ω
Sensor error detection: Loop break 4...20 mA Yes
Voltage Input
Measurement range 0...12 VDC
Programmable measurement ranges 0/0.2...1, 0/1...5, 0/2...10 VDC
Input resistance Nom. 10 MΩ
Output Specifications
Current Output
Signal range 0...23 mA
Programmable signal ranges 0...20/4...20/20...0/20...4 mA
Load (@ current output) ≤ 800 Ω
Load stability ≤ 0.01% of span / 100 Ω
Sensor error indication 0 / 3.5 / 23 mA / none
NAMUR NE43 Upscale/Downscale 23 mA / 3.5 mA
Output limitation, on 4...20 and 20...4 mA signals 3.8...20.5 mA
Output limitation, on 0...20 and 20...0 mA signals 0...20.5 mA
Current limit ≤ 28 mA
Voltage Output
Signal range 0...10 VDC
Programmable signal ranges 0/0.2...1; 0/1...5 ; 0/2...10; 1...0.2/0; 5...1/0; 10...2/0 V
Load (@ voltage output) ≥ 500 kΩ
of span = of the presently selected range
Compliance & Certifications
EMC 2014/30/EU & UK SI 2016/1091
LVD 2014/35/EU & UK SI 2016/1101
RoHS 2011/65/EU & UK SI 2012/3032
EAC TR-CU 020/2011
EAC LVD TR-CU 004/2011
Approvals
c UL us, UL 508 E231911
FM 3025177
DNV Marine TAA0000101
EU RO MR Type Approval MRA000000Z
SIL Hardware assessed for use in SIL applications
