Specifications
Brand Name :
PR
Model Number :
PR 4131
Certification :
CO
Place of Origin :
Denmark
MOQ :
1
Price :
150usd-350usd
Payment Terms :
T/T
Supply Ability :
99pcs 4-6 weeks
Delivery Time :
5-7 work days
Ingressprotectionrating :
IP65
Mountingtype :
DIN Rail / Panel Mount
Operatingtemperaturerange :
-40°C to 85°C
Accuracy :
±0.1%
Productname :
Multifunctional Transmitter
Powersupply :
24V DC
Dimensions :
120mm x 80mm x 60mm
Responsetime :
≤ 1 second
Model :
MT-2024
Displaytype :
LCD with backlight
Housingmaterial :
Aluminum Alloy
Description

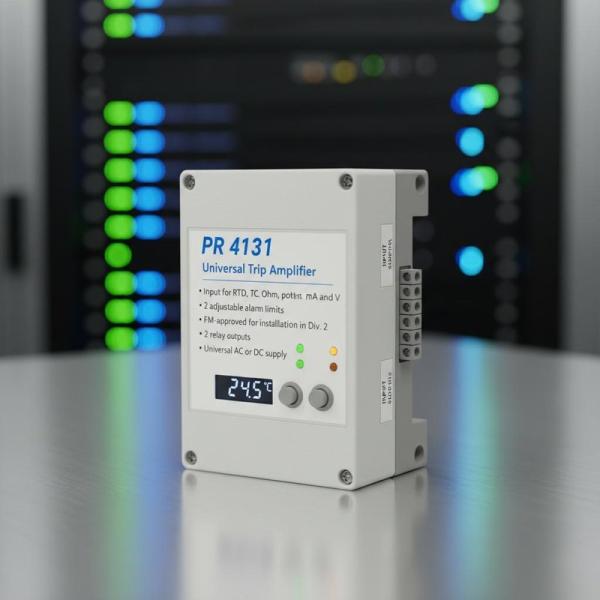

Universal Trip Amplifier
PR 4131
Key Features: Input for RTD, TC, Ohm, potentiometer, mA and V • 2 adjustable alarm limits • FM-approved for installation in Div. 2 • 2 relay outputs • Universal AC or DC supply
Environmental Conditions
Operating temperature -20°C to +60°C
Calibration temperature 20...28°C
Relative humidity < 95% RH (non-cond.)
Protection degree IP20
Mechanical Specifications
Dimensions (HxWxD) 109 x 23.5 x 104 mm
Dimensions (HxWxD) w/ PR 4500 109 x 23.5 x 131 mm
Weight approx. 170 g
Weight incl. 4501 / 451x (approx.) 185 g / 200 g
Wire size 0.13...2.08 mm² AWG 26...14 stranded wire
Screw terminal torque 0.5 Nm
Vibration IEC 60068-2-6
2...13.2 Hz: ±1 mm
13.2...100 Hz: ±0.7 g
Common Specifications
Supply
Supply voltage, universal 21.6...253 VAC, 50...60 Hz or 19.2...300 VDC
Fuse 400 mA SB / 250 VAC
Max. required power ≤ 2.0 W
Max. power dissipation ≤ 2.0 W
Isolation Voltage
Isolation voltage, test / working 2.3 kVAC / 250 VAC
Response Time
Temperature input (0...90%, 100...10%) ≤ 1 s
mA / V input (0...90%, 100...10%) ≤ 400 ms
Auxiliary Supplies
2-w. supply (term. 44...43) 25...16 VDC / 0...20 mA
Programming PR 4500 communication interfaces
Signal / noise ratio Min. 60 dB (0...100 kHz)
Accuracy Better than 0.1% of sel. range
EMC immunity influence < ±0.5% of span
Extended EMC immunity: NAMUR NE21, A criterion, burst < ±1% of span
Input Specifications
RTD Input
RTD type Pt10/20/50/100/200/250; Pt300/400/500/1000; Ni50/100/120/1000; Cu10/20/50/100
Cable resistance per wire 50 Ω (max.)
Sensor current Nom. 0.2 mA
Effect of sensor cable resistance (3-/4-wire) < 0.002 Ω / Ω
Sensor error detection Yes
Short circuit detection < 15 Ω
Linear Resistance Input
Linear resistance min....max. 0 Ω...10000 Ω
Potentiometer Input
Potentiometer min....max. 10 Ω...100 kΩ
TC Input
Thermocouple type B, E, J, K, L, N, R, S, T, U, W3, W5, LR
Cold junction compensation (CJC) via ext. sensor in 5910 20...28°C ≤ ±1°C, -20...20°C / 28...70°C ≤ 2°C
CJC via int. mounted sensor ±(2.0°C + 0.4°C * Δt)
Sensor error detection Yes
Sensor error current: When detecting / else Nom. 2 μA / 0 μA
Current Input
Measurement range 0...23 mA
Programmable measurement ranges 0...20 and 4...20 mA
Input resistance Nom. 20 Ω + PTC 50 Ω
Voltage Input
Measurement range 0...12 VDC
Programmable measurement ranges 0/0.2...1, 0/1...5, 0/2...10 VDC
Input resistance Nom. 10 MΩ
Output Specifications
Relay Output
Relay functions Setpoint, Window, Sensor error, Latch, Power and Off
Hysteresis 0...100%
ON and OFF delay 0...3600 s
Max. voltage 250 VRMS
Max. current 2 AAC or 1 ADC
Max. AC power 500 VA
Sensor error reaction Break / Make / Hold
of span = of the presently selected range
Compliance & Approvals
Observed Authority Requirements
EMC 2014/30/EU & UK SI 2016/1091
LVD 2014/35/EU & UK SI 2016/1101
RoHS 2011/65/EU & UK SI 2012/3032
EAC TR-CU 020/2011
EAC LVD TR-CU 004/2011
Approvals
c UL us, UL 508 E231911
FM 3025177
DNV Marine TAA0000101
EU RO MR Type Approval MRA000000Z
