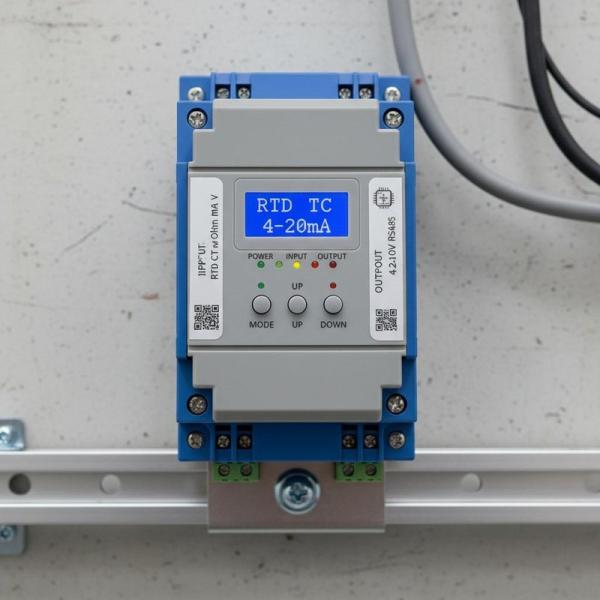

PR 5116B Multifunction Programmable Transmitter With RTD TC MV Ohm MA V Input 4-20mA 0-10V RS485 Output
PR 5116B Multifunction Programmable Transmitter With RTD TC MV Ohm MA V Input 4-20mA 0-10V RS485 Output
PR 5116B Multifunction Programmable Transmitter With RTD TC MV Ohm MA V Input 4-20mA 0-10V RS485 Output
PR 5116B Multifunction Programmable Transmitter With RTD TC MV Ohm MA V Input 4-20mA 0-10V RS485 Output
Specifications
Brand Name :
PR
Model Number :
PR 5116B
Certification :
CO
Place of Origin :
Denmark
MOQ :
1
Price :
100-200usd
Payment Terms :
T/T
Supply Ability :
99pcs 4-6 weeks
Delivery Time :
5-7 work days
Measurementrange :
0-1000 units
Mountingtype :
DIN rail / Wall mount
Humidityrange :
0-95% RH, non-condensing
Protectionrating :
IP65
Display :
LCD with backlight
Housingmaterial :
Aluminum alloy
Productname :
Multifunctional Transmitter
Outputsignaltype :
4-20mA, 0-10V, RS485
Dimensions :
120mm x 80mm x 50mm
Powersupply :
24V DC
Inputsignaltype :
Analog/Digital
Operatingtemperature :
-20°C to 70°C
Accuracy :
±0.1%
Communicationprotocol :
Modbus RTU
Model :
MT-2024
Description
Programmable Transmitter PR 5116B
Universal Input Capabilities

Compatible with RTD, TC, mV, Ohm, potentiometer, mA and V inputs. Features bipolar voltage input and 2-wire supply > 16.5 V for Ex zone 0 applications.

Environmental Conditions
Operating temperature -20°C to +60°C
Calibration temperature 20...28°C
Relative humidity < 95% RH (non-condensing)
Protection degree IP20
Mechanical Specifications
Dimensions (HxWxD) 109 x 23.5 x 130 mm
Weight approx. 235 g
DIN rail type DIN EN 60715/35 mm
Wire size 0.13...2.08 mm² AWG 26...14 stranded wire
Screw terminal torque 0.5 Nm
Vibration IEC 60068-2-6
2...13.2 Hz: ±1 mm
13.2...100 Hz: ±0.7 g
Common Specifications
Supply
Supply voltage, universal 21.6...253 VAC, 50...60 Hz or 19.2...300 VDC
Fuse 400 mA SB / 250 VAC
Max. required power 2.4 W
Max. power dissipation 2.0 W
Isolation Voltage
Isolation voltage, test / working 3.75 kVAC / 250 VAC
PELV/SELV IEC 61140
Response Time
Temperature input, programmable (0...90%, 100...10%) 400 ms...60 s
mA / V input (programmable) 250 ms...60 s
Auxiliary Supplies
2-wire supply (pin 54...52) 28...16.5 VDC / 0...20 mA
Programming PR 5909 Loop Link communications interface
Signal / noise ratio Min. 60 dB (0...100 kHz)
Accuracy Better than 0.05% of selected range
Signal dynamics, input 22 bit
Signal dynamics, output 16 bit
Auxiliary voltages: Reference voltage 2.5 VDC ±0.5% / 15 mA
EMC immunity influence < ±0.5% of span
Extended EMC immunity: NAMUR NE21, A criterion, burst < ±1% of span
Input Specifications
Common Input Specifications
Max. offset 50% of selected max. value
RTD Input
RTD type Pt46, Pt100, Ni100, Cu53, lin. R
Cable resistance per wire 10 Ω (max. 50 Ω)
Sensor current Nom. 0.2 mA
Effect of sensor cable resistance (3-/4-wire) < 0.002 Ω / Ω
Sensor error detection Yes
TC Input
Thermocouple type B, E, J, K, L, N, R, S, T, U, W3, W5, LR
Cold junction compensation (CJC) < ±1.0°C
Sensor error current Nom. 30 μA
Sensor error detection Yes
Current Input
Measurement range 0...100 mA
Min. measurement range (span) 4 mA
Input resistance: Supplied unit Nom. 10 Ω + PTC 10 Ω
Input resistance: Non-supplied unit RSHUNT = ∞, VDROP < 6 V
Sensor error detection Loop break 4...20 mA
Voltage Input
Measurement range 0...250 VDC -2500...+2500 mV
Min. measurement range (span) 5 mV
Input resistance Nom. 10 MΩ (≤ 2.5 VDC) Nom. 5 MΩ (> 2.5 VDC)
> 5 MΩ (mV input)
Potentiometer via 2.5 V ref. 170 Ω
Output Specifications
Current Output
Signal range 0...20 mA
Min. signal range 10 mA
Load (@ current output) ≤ 600 Ω
Load stability ≤ 0.01% of span / 100 Ω
Current limit ≤ 28 mA
Sensor error indication Programmable 0...23 mA
NAMUR NE43 Upscale/Downscale 23 mA / 3.5 mA
Passive 2-wire mA Output
Signal range 4...20 mA
Load stability ≤ 0.01% of span / 100 Ω
Max. external 2-wire supply 29 VDC
Effect of external 2-wire supply voltage variation < 0.005% of span / V
Voltage Output
Signal range 0...10 VDC
Min. signal range 500 mV
Load (@ voltage output) ≥ 500 kΩ
Relay Output
Relay functions Increasing / decreasing Window
Max. voltage 250 VAC / VDC
Max. current 2 A
Max. AC power 500 VA
Max. DC current, resistive load > 30 VDC See manual for details
Sensor error reaction Break / Make / Hold / None
of span = of the presently selected range
Compliance & Approvals
Observed Authority Requirements
EMC 2014/30/EU
LVD 2014/35/EU
ATEX 2014/34/EU
RoHS 2011/65/EU
EAC TR-CU 020/2011
EAC LVD TR-CU 004/2011
EAC Ex TR-CU 012/2011
Approvals
ATEX KEMA 04ATEX1316 X
FM FM21US0035X
c UL us, UL 508 E231911
EAC Ex EAEU KZ 7500361.01.01.08756
DNV Marine TAA0000101
