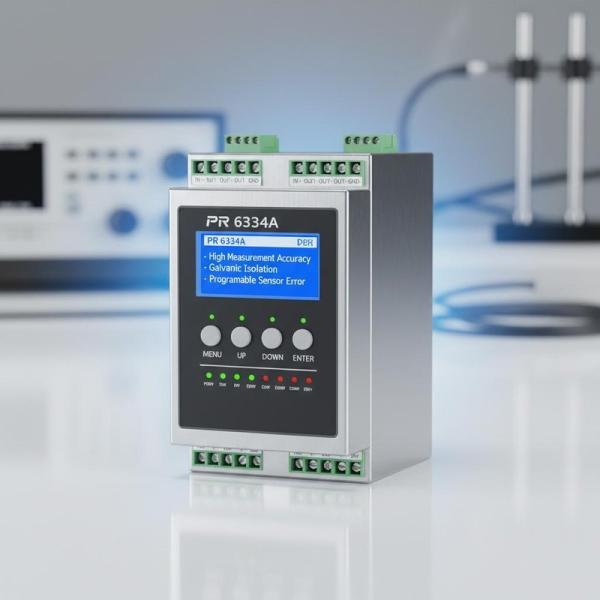

High Accuracy Programmable Measurement Transmitter PR 6334A With Galvanic Isolation
High Accuracy Programmable Measurement Transmitter PR 6334A With Galvanic Isolation
High Accuracy Programmable Measurement Transmitter PR 6334A With Galvanic Isolation
High Accuracy Programmable Measurement Transmitter PR 6334A With Galvanic Isolation
High Accuracy Programmable Measurement Transmitter PR 6334A With Galvanic Isolation
High Accuracy Programmable Measurement Transmitter PR 6334A With Galvanic Isolation
High Accuracy Programmable Measurement Transmitter PR 6334A With Galvanic Isolation
High Accuracy Programmable Measurement Transmitter PR 6334A With Galvanic Isolation
Specifications
Brand Name :
PR
Model Number :
PR 6334A
Certification :
CO
Place of Origin :
Denmark
MOQ :
1
Price :
160usd
Payment Terms :
T/T
Supply Ability :
99pcs 4-6 weeks
Delivery Time :
5-7 work days
Coo :
Yes
Ingress Protection :
IP65
Storage Temperature :
-40 to 85°C (-40 to 185°F)
Switching Output :
Relay
Accuracies :
up to 0.035% standard & 0.025% Opt
Load Resistance :
0 to 1,440 ohms
Product Type :
Redundant Discrete Input Cards
Tariff Code :
85365080
Compensation Rangeability :
up to 400:1
Net Weight :
7 oz
Accuracy :
±0.1% of span
Range :
-200℃-1200℃
Manufacturer :
Moog
Using Range :
temperature
Mounting Type :
DIN Rail or Field Mount
Description
PR 6334A 2-Wire Programmable Transmitter
Product Overview
  • TC input capability
  • High measurement accuracy
  • Galvanic isolation
  • Programmable sensor error value
  • Available in 1- or 2-channel versions
Environmental Conditions
Operating temperature-40°C to +85°C
Storage temperature-40°C to +85°C
Calibration temperature20...28°C
Relative humidity< 95% RH (non-condensing)
Protection degreeIP20
Mechanical Specifications
Dimensions (HxWxD)109 x 23.5 x 104 mm
Weight (1 / 2 channels)145 / 185 g
DIN rail typeDIN EN 60715/35 mm
Wire size0.13...2.08 mm² AWG 26...14 stranded wire
Screw terminal torque0.5 Nm
Technical Specifications
Power Supply
Supply voltage7.2...35 VDC
Max. required power≤ 0.8 W/≤ 1.6 W (1 ch./2 ch.)
Internal power dissipation0.17...0.8 W
Isolation & Response
Isolation voltage, test / working1.5 kVAC / 50 VAC
Response time (programmable)1...60 s
Voltage drop7.2 VDC
Warm-up time5 min.
Performance Characteristics
Programming interfacePR 5909 Loop Link communications interface
Signal / noise ratioMin. 60 dB
AccuracyBetter than 0.05% of selected range
EEprom error check< 3.5 s
Signal dynamics, input18 bit
Signal dynamics, output16 bit
Effect of supply voltage change< 0.005% of span / VDC
EMC immunity influence< ±0.5% of span
Extended EMC immunity< ±1% of span
Input Specifications
Common Input Specifications
Max. offset50% of selected max. value
Thermocouple Input
Thermocouple typeB, E, J, K, L, N, R, S, T, U, W3, W5, LR
Cold junction compensation (CJC)< ±1.0°C
Voltage Input
Measurement range-12...150 mV
Min. measurement range (span)5 mV
Input resistanceNom. 10 MΩ
Output Specifications
Current Output
Signal range4…20 mA
Min. signal range16 mA
Load (@ current output)≤ (Vsupply - 7.2) / 0.023 [Ω]
Sensor error indicationProgrammable 3.5…23 mA
NAMUR NE43 Upscale/Downscale23 mA / 3.5 mA
Common Output Specifications
Updating time440 ms
of span= of the presently selected range
Compliance & Certifications
Regulatory Compliance
EMC2014/30/EU
ATEX2014/34/EU
RoHS2011/65/EU
EACTR-CU 020/2011
EAC ExTR-CU 012/2011
Approvals
ATEXDEKRA 20ATEX0096X
IECExDEK 20.0059X
INMETRODEKRA 23.0009X
EAC ExEAEU KZ 7500361.01.01.08756
