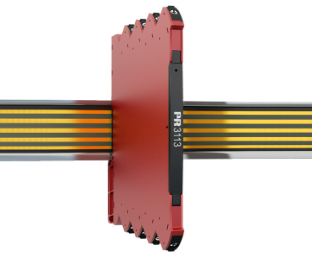

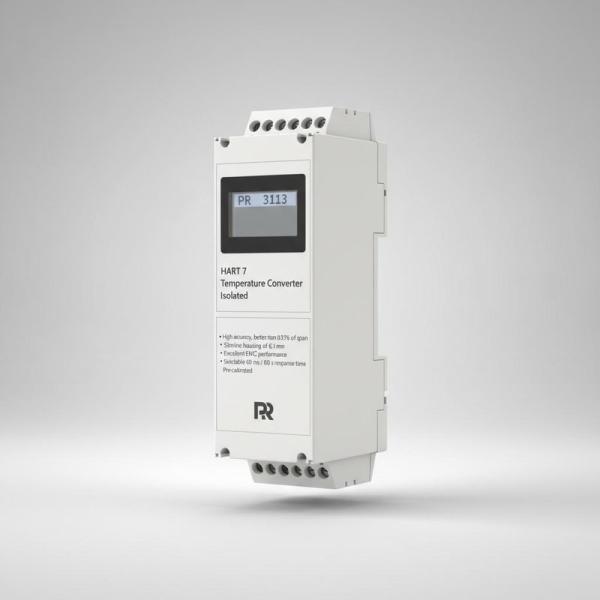

HART 7 Temperature Converter - Isolated
PR 3113
Key Features
  • High accuracy, better than 0.05% of span
  • Slimline housing of 6.1 mm
  • Excellent EMC performance
  • Selectable 60 ms / 60 s response time
  • Pre-calibrated for immediate use
Environmental Conditions
Operating temperature -25°C to +70°C
Storage temperature -40°C to +85°C
Calibration temperature 20...28°C
Relative humidity < 95% RH (non-cond.)
Protection degree IP20
Installation in Pollution degree 2 & meas. / overvoltage cat. II
Mechanical Specifications
Dimensions (HxWxD) 113 x 6.1 x 115 mm
Weight approx. 70 g
DIN rail type DIN EN 60715/35 mm
Wire size 0.13...2.5 mm² / AWG 26...12 stranded wire
Screw terminal torque 0.5 Nm
Vibration IEC 60068-2-6
2...25 Hz: ±1.6 mm
25...100 Hz: ±4 g
Common Specifications
Supply
Supply voltage 16.8...31.2 VDC
Max. required power 0.70 W
Max. power dissipation 0.70 W
Isolation Voltage
Isolation voltage, test / working 2.5 kVAC / 300 VAC (reinforced)
Zone 2 / Div. 2 250 VAC
Performance
Response time HART mode 60 ms...60 s, programmable
Response time DIP mode < 60 ms
Accuracy Better than 0.05% of selected range
Signal / noise ratio Min. 60 dB
Long-term stability ±0.1% of span / year (±0.3% of span / 5 years)
Programming DIP switches
Signal dynamics, input 23 bit
Signal dynamics, output 18 bit
EMC immunity influence < ±0.5% of span
Extended EMC immunity < ±1% of span
Incorrect DIP-switch setting identification 3.5 mA output; LED 0.5 s / 1 Hz
Input Specifications
RTD Input
Temperature range, Pt100 -200...+850°C
Min. measurement range (span) 10°C
Accuracy Better than 0.05% of span or 0.1°C
Temperature coefficient 0.02°C/°C or ≤ ±0.01%/°C
Sensor current < 150 µA
Sensor cable resistance < 50 Ω per wire
Effect of sensor cable resistance (3-/4-wire) < 0.002 Ω / Ω
Sensor error detection Yes - selectable via DIP-switch
Broken sensor detection > 800 Ω
Shorted sensor detection < 18 Ω
TC Input
Temperature range, TC J -100...+1200°C
Temperature range, TC K -180...+1372°C
Min. measurement range (span) - TC J & K 50°C
Accuracy Better than 0.05% of span or 0.5°C
Temperature coefficient 0.1°C/°C or ≤ ±0.01%/°C
Sensor cable resistance < 5 kΩ per wire
Cold junction compensation (CJC): Accuracy @ external Pt100 input Better than ±0.15°C
Cold junction compensation (CJC): Accuracy @ internal CJC Better than ±2.5°C
Internal CJC error detection Yes
External CJC error detection Yes - selectable via DIP-switch
Open Thermocouple detection Yes - selectable via DIP-switch
Output Specifications
Current Output
Signal range 0...23 mA
Programmable signal ranges 4...20 and 20...4 mA
Load (@ current output) ≤ 600 Ω
Load stability ≤ 0.01% of span / 100 Ω
Sensor error indication 3.5 mA or 23 mA / acc. to NAMUR NE43 or OFF
Open output < 20 V
HART protocol revisions HART 7
Updating time 10 ms
Intrinsic Safety & Ex Marking
ATEX II 3 G Ex ec IIC T4 Gc
IECEx Ex ec IIC T4 Gc
FM, US Cl. I, Div. 2, Gp. A, B, C, D T4 or Cl. I, Zone 2, AEx nA IIC T4
FM, CA Cl. I, Div. 2, Gp. A, B, C, D T4 or Cl. I, Zone 2, Ex nA IIC T4
EAC Ex 2Ex nA IIC T4 Gc X
Compliance & Approvals
Observed Authority Requirements
EMC 2014/30/EU & UK SI 2016/1091
LVD 2014/35/EU & UK SI 2016/1101
ATEX 2014/34/EU & UK SI 2016/1107
RoHS 2011/65/EU & UK SI 2012/3032
EAC TR-CU 020/2011
EAC Ex TR-CU 012/2011
Certification Approvals
ATEX KEMA 10ATEX0147 X
IECEx KEM 10.0068X
UKEX DEKRA 21UKEX0055X
c FM us FM17US0004X / FM17CA0003X
c UL us, UL 61010-1 E314307
EAC Ex EAEU KZ 7500361.01.01.08756
DNV Marine TAA00001RW
