Specifications
Brand Name :
PR
Model Number :
PR 6334B
Certification :
CO
Place of Origin :
Denmark
MOQ :
1
Price :
200-400usd
Payment Terms :
T/T
Supply Ability :
99pcs 4-6 weeks
Delivery Time :
5-7 work days
Overvoltage Protection :
Output protected at 110% to 120%
Tariff Code :
85365080
Using Range :
temperature
Input Types :
RTD, Thermocouple
Actuator Type :
Side Rotary - No Lever
Hart :
16 Channels 4-20 mA, HART
Body :
Brass
Load Resistance :
0 to 1,440 ohms
Part Number :
1037778
Output Signal :
4-20 mA
Mounting Type :
DIN Rail / Field Mount
Display :
Optional LCD
Switch Function :
On-Mom
Response Times :
as fast as 90ms
Availability :
In Stock
Description

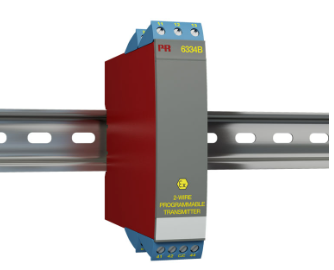

2-Wire Programmable Transmitter PR 6334B
Product Overview
  • TC input with high measurement accuracy
  • Galvanic isolation for enhanced safety
  • Suitable for installation in Ex zone 0 hazardous areas
  • Available in 1- or 2-channel versions
Environmental Conditions
Operating temperature-40°C to +85°C
Storage temperature-40°C to +85°C
Calibration temperature20...28°C
Relative humidity< 95% RH (non-condensing)
Protection degreeIP20
Mechanical Specifications
Dimensions (HxWxD)109 x 23.5 x 104 mm
Weight (1 / 2 channels)145 / 185 g
DIN rail typeDIN EN 60715/35 mm
Wire size0.13...2.08 mm² AWG 26...14 stranded wire
Screw terminal torque0.5 Nm
Technical Specifications
Power Supply
Supply voltage7.2...30 VDC
Max. required power≤ 0.7 W/≤ 1.4 W (1 ch./2 ch.)
Power dissipation, per channel0.17...0.7 W
Isolation & Response
Isolation voltage, test / working1.5 kVAC / 50 VAC
Response time (programmable)1...60 s
Voltage drop7.2 VDC
Warm-up time5 min.
Performance Characteristics
Programming interfacePR 5909 Loop Link communications interface
Signal / noise ratioMin. 60 dB
AccuracyBetter than 0.05% of selected range
EEprom error check< 3.5 s
Signal dynamics, input18 bit
Signal dynamics, output16 bit
Effect of supply voltage change< 0.005% of span / VDC
EMC immunity influence< ±0.5% of span
Extended EMC immunity< ±1% of span
Input Specifications
Common Input Specifications
Max. offset50% of selected max. value
Thermocouple Input
Thermocouple typeB, E, J, K, L, N, R, S, T, U, W3, W5, LR
Cold junction compensation (CJC)< ±1.0°C
Voltage Input
Measurement range-12...150 mV
Min. measurement range (span)5 mV
Input resistance10 MΩ
Output Specifications
Current Output
Signal range4…20 mA
Min. signal range16 mA
Load (@ current output)≤ (Vsupply - 7.2) / 0.023 [Ω]
Sensor error indicationProgrammable 3.5…23 mA
NAMUR NE43 Upscale/Downscale23 mA / 3.5 mA
Common Output Specifications
Updating time440 ms
of span= of the presently selected range
Compliance & Approvals
Regulatory Compliance
EMC2014/30/EU
ATEX2014/34/EU
RoHS2011/65/EU
EACTR-CU 020/2011
EAC ExTR-CU 012/2011
Certification Approvals
ATEXDEKRA 20ATEX0095X
IECExDEK 20.0059X
INMETRODEKRA 23.0009X
EAC ExEAEU KZ 7500361.01.01.08756
