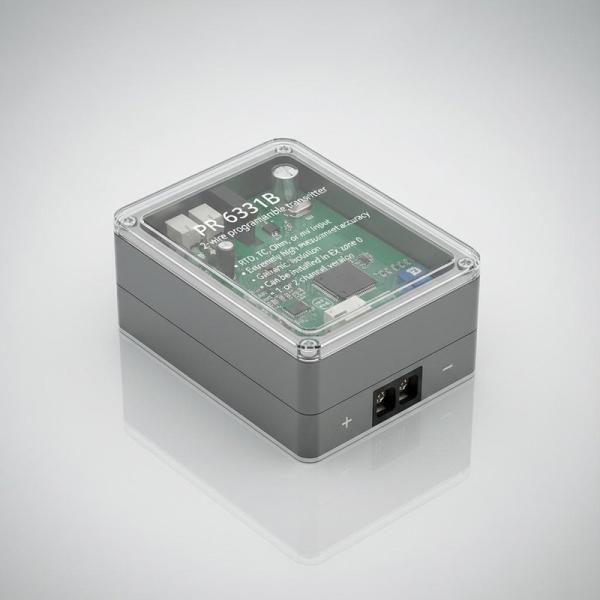

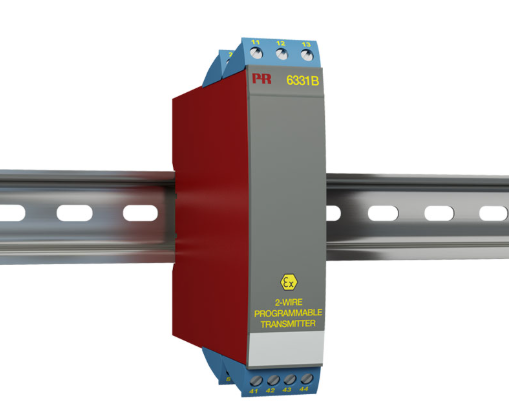

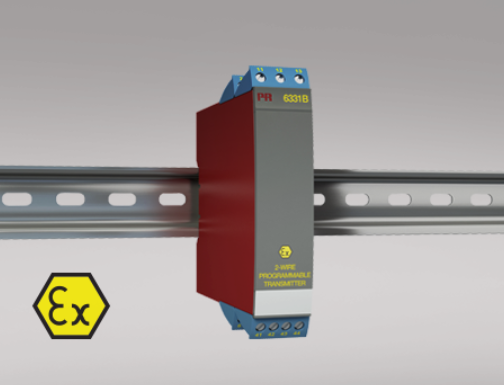

PR 6331B Programmable Transmitter RTD TC Input High Accuracy Galvanic Isolation Ex Zone 0
PR 6331B Programmable Transmitter RTD TC Input High Accuracy Galvanic Isolation Ex Zone 0
PR 6331B Programmable Transmitter RTD TC Input High Accuracy Galvanic Isolation Ex Zone 0
PR 6331B Programmable Transmitter RTD TC Input High Accuracy Galvanic Isolation Ex Zone 0
PR 6331B Programmable Transmitter RTD TC Input High Accuracy Galvanic Isolation Ex Zone 0
PR 6331B Programmable Transmitter RTD TC Input High Accuracy Galvanic Isolation Ex Zone 0
PR 6331B Programmable Transmitter RTD TC Input High Accuracy Galvanic Isolation Ex Zone 0
PR 6331B Programmable Transmitter RTD TC Input High Accuracy Galvanic Isolation Ex Zone 0
Specifications
Brand Name :
PR
Model Number :
PR 6331B
Certification :
CO
Place of Origin :
Denmark
MOQ :
1
Price :
200-400usd
Payment Terms :
T/T
Supply Ability :
99pcs 4-6 weeks
Delivery Time :
5-7 work days
Maximum Allowable :
500 psi (35 bar)
Material :
Plastic and Metal
Manufacturer :
SICK Sensors
Package :
Bulk
Range :
-200℃-1200℃
Function :
3/2 Universal
Model :
VE4003S2B6
Load Resistance :
0 to 1,440 ohms
Mounting Type :
DIN Rail / Field Mount
Tariff Code :
85365080
Switch Function :
On-Mom
Switching Output :
Relay
Display :
Optional LCD
Product No :
VE4005S2B1
Hs Code :
85389091
Description
2-Wire Programmable Transmitter PR 6331B
Key Features
  • RTD, TC, Ohm, or mV input capability
  • Extremely high measurement accuracy
  • Galvanic isolation for enhanced safety
  • Suitable for installation in Ex zone 0
  • Available in 1- or 2-channel versions
Environmental Conditions
Operating temperature-40°C to +85°C
Storage temperature-40°C to +85°C
Calibration temperature20...28°C
Relative humidity< 95% RH (non-condensing)
Protection degreeIP20
Mechanical Specifications
Dimensions (HxWxD)109 x 23.5 x 104 mm
Weight (1 / 2 channels)145 / 185 g
DIN rail typeDIN EN 60715/35 mm
Wire size0.13...2.08 mm² AWG 26...14 stranded wire
Screw terminal torque0.5 Nm
Common Specifications
Supply
Supply voltage7.2...30 VDC
Max. required power≤ 0.7 W/≤ 1.4 W (1 ch./2 ch.)
Power dissipation, per channel0.17...0.7 W
Isolation Voltage
Isolation voltage, test / working1.5 kVAC / 50 VAC
Response Time
Response time (programmable)1...60 s
Voltage drop7.2 VDC
Warm-up time5 min.
ProgrammingPR 5909 Loop Link communications interface
Signal / noise ratioMin. 60 dB
AccuracyBetter than 0.05% of selected range
EEprom error check< 3.5 s
Signal dynamics, input20 bit
Signal dynamics, output16 bit
Effect of supply voltage change< 0.005% of span / VDC
EMC immunity influence< ±0.5% of span
Extended EMC immunity: NAMUR NE21, A criterion, burst< ±1% of span
Input Specifications
Common Input Specifications
Max. offset50% of selected max. value
RTD Input
RTD typePt100, Ni100, lin. R
Cable resistance per wire5 Ω (max.)
Sensor currentNom. 0.2 mA
Effect of sensor cable resistance (3-/4-wire)< 0.002 Ω / Ω
Sensor error detectionYes
TC Input
Thermocouple typeB, E, J, K, L, N, R, S, T, U, W3, W5, LR
Cold junction compensation (CJC)< ±1.0°C
Sensor error detectionYes
Sensor error current: When detecting / elseNom. 33 μA / 0 μA
Linear Resistance Input
Linear resistance min....max.0 Ω...5000 Ω
Voltage Input
Measurement range-12...800 mV
Min. measurement range (span)5 mV
Input resistance10 MΩ
Output Specifications
Current Output
Signal range4…20 mA
Min. signal range16 mA
Load (@ current output)≤ (Vsupply - 7.2) / 0.023 [Ω]
Load stability≤ 0.01% of span / 100 Ω
Sensor error indicationProgrammable 3.5…23 mA
NAMUR NE43 Upscale/Downscale23 mA / 3.5 mA
Common Output Specifications
Updating time440 ms
of span= of the presently selected range
Compliance & Standards
Observed Authority Requirements
EMC2014/30/EU
ATEX2014/34/EU
RoHS2011/65/EU
EACTR-CU 020/2011
EAC ExTR-CU 012/2011
Approvals
ATEXDEKRA 20ATEX0095X
IECExDEK 20.0059X
CSA1125003
FMFM17US0013X
INMETRODEKRA 23.0009X
EAC ExEAEU KZ 7500361.01.01.08756
