Specifications
Brand Name :
PR
Model Number :
PR 3111
Certification :
CO
Place of Origin :
Denmark
MOQ :
1
Price :
200-400usd
Payment Terms :
T/T
Supply Ability :
99pcs 4-6 weeks
Delivery Time :
5-7 work days
Hart :
16 Channels 4-20 mA, HART
Weight :
0.5KG
Type :
Linear Transducer
Load Resistance :
0 to 1,440 ohms
Actuator Type :
Side Rotary - No Lever
Housing Material :
Stainless Steel
Product Type :
MD-PLUS Controller
Absolute Encoders :
AFS/AFM60
Response Time :
≤1 second
Tariff Code :
85365080
Output :
4-20mA
Relative Humidity :
5 to 95%, non-condensing
Loop Powered :
Yes
Estimated Lead Time :
In Stock
Using Range :
temperature
Description
TC Converter - Isolated PR 3111
Key Features
  • Excellent accuracy, better than 0.05% of span
  • Slimline housing of 6.1 mm
  • Excellent EMC performance and 50/60 Hz noise suppression
  • Selectable response time: < 30 ms / 300 ms
Environmental Conditions
Operating temperature -25°C to +70°C
Storage temperature -40°C to +85°C
Calibration temperature 20...28°C
Relative humidity < 95% RH (non-cond.)
Protection degree IP20
Installation in Pollution degree 2 & meas. / overvoltage cat. II
Mechanical Specifications
Dimensions (HxWxD) 113 x 6.1 x 115 mm
Weight approx. 70 g

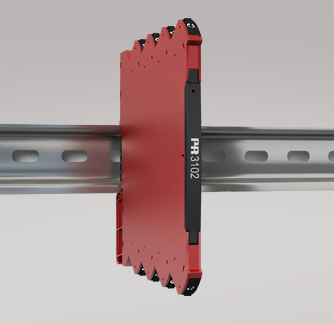

DIN rail type DIN EN 60715/35 mm
Wire size 0.13...2.5 mm² / AWG 26...12 stranded wire
Screw terminal torque 0.5 Nm
Technical Specifications
Power Supply
Supply voltage 16.8...31.2 VDC
Max. required power 0.70 W
Max. power dissipation 0.70 W
Isolation & Safety
Isolation voltage, test / working 2.5 kVAC / 300 VAC (reinforced)
Zone 2 / Div. 2 250 VAC
Performance Characteristics
Response time (0...90%, 100...10%) < 30 ms / 300 ms (selectable)
Signal / noise ratio Min. 60 dB
Programming DIP switches
Signal dynamics, input 23 bit
Signal dynamics, output 18 bit
Accuracy Better than 0.05% of selected range
Input Specifications
Thermocouple Input
Temperature range, TC J -100...+1200°C
Temperature range, TC K -180...+1372°C
Min. measurement range (span) - TC J & K 50°C
Accuracy: the greater of Better than 0.05% of span or 0.5°C
Temperature coefficient: the greater of 0.1°C/°C or ≤ ±0.01%/°C
Sensor cable resistance < 5 kΩ per wire
Output Specifications
Current Output
Signal range 0...23 mA
Programmable signal ranges 0 / 4...20 mA
Load (@ current output) ≤ 600 Ω
Voltage Output
Programmable signal ranges 0/1...5 and 0/2...10 V
Certifications & Approvals
ATEX II 3 G Ex ec IIC T4 Gc
IECEx Ex ec IIC T4 Gc
FM, US Cl. I, Div. 2, Gp. A, B, C, D T4 or Cl. I, Zone 2, AEx nA IIC T4
EAC Ex 2Ex nA IIC T4 Gc X
Compliance & Standards
EMC 2014/30/EU & UK SI 2016/1091
LVD 2014/35/EU & UK SI 2016/1101
ATEX 2014/34/EU & UK SI 2016/1107 2014/34/EU
RoHS 2011/65/EU & UK SI 2012/3032
EAC TR-CU 020/2011
EAC Ex TR-CU 012/2011
